Using the Auto Brightness function
The brightness of the LCD screen can be set to increase or decrease depending on the amount of ambient light within the
room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the monitor will dim
accordingly. The purpose of this function is to make the viewing experience more comfortable to the eye in a variety of lighting
conditions.
The Auto Brightness function is set to 1 by default.
SETUP
Use the following procedure to select the Brightness Range that the monitor will use when the Auto Brightness function is
activated.
1. Set the BRIGHT level. This is the brightness level that the monitor will go up to when the ambient light level is highest.
Make sure the room is at its brightest when setting this level.
Select “1” or “3” in the AUTO BRIGHTNESS menu (Figure 1). Then use the front buttons to move the cursor up to the
BRIGHTNESS setting. Choose the desired brightness level (Figure 2).
2. Set the DARK level. This is the level of brightness that the monitor will go down to when the ambient light level is low.
Make sure the room is at its darkest when setting this level.
Then use the front buttons to move the cursor up to the BRIGHTNESS setting. Choose the desired brightness level
(Figure 3).

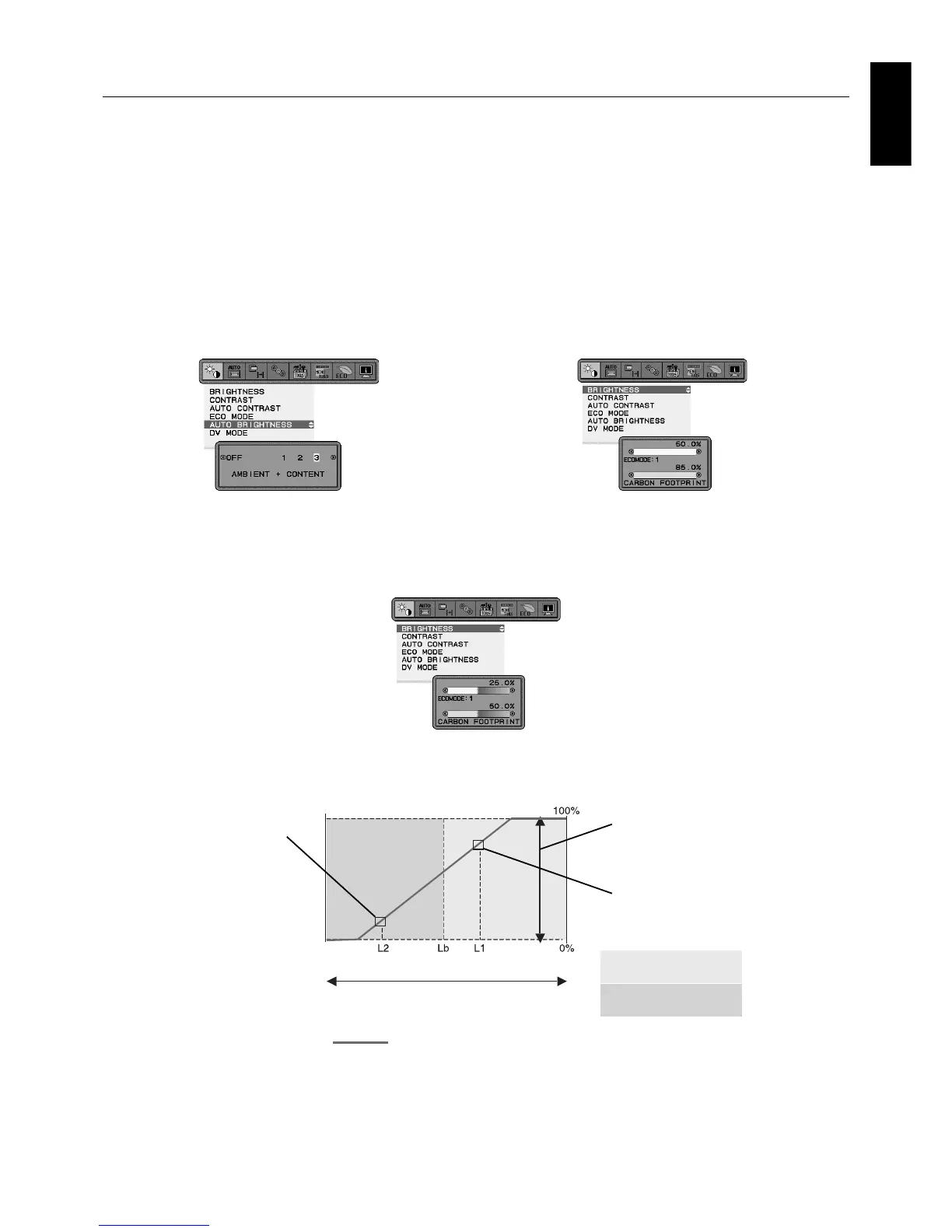

Figure 1
Figure 2
Figure 3
When the “Auto Brightness” function is enabled the Brightness level of the screen changes automatically according to the
lighting conditions of the room (Figure 4).
BRIGHTNESS level set
for the monitor to use
when ambient lighting
level is low.
BRIGHTNESS level set for the
monitor to use when ambient
lighting level is high.
BRIGHTNESS range
Lb: Border between bright and dim lighting conditions; set at factory
L1: BRIGHTNESS level set for the monitor to use when ambient lighting level is high (L1>Lb)
L2: BRIGHTNESS level set for the monitor to use when ambient lighting level is low (L2<Lb)
L1 and L2 are the brightness levels set by you to compensate for changes in ambient lighting.
Figure 4
dark bright
room bright condition
Screen Brightness value by Auto Brightness function
Bright condition area
Dark condition area

NEC MultiSync E231W Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
Viewing angle, horizontal	176 °
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 83 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	720 x 480, 1440 x 1050, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
DVI-I ports quantity	0
Power consumption (standby)	0.34 W
Power consumption (typical)	28 W
Power consumption (PowerSave)	23 W
Certification	EPEAT Gold; CE; ErP; TCO 5.0; TÜV; TÜV GS; GEEA/Energy Label; Energy Star 5.0; FCC Class B; PCT/Gost; UL/C-UL or CSA; CCC; ISO 9241-307; MPR II/ MPR III
Product color	White
Market positioning	Business
Power requirements	100-120 V/220-240 V; 0.6 A/0.35 A
Pivot angle	0 - 90 °
Tilt angle range	-5 - 20 °
Height adjustment	110 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Bezel width (side)	19.2 mm
Depth (with stand)	381.1 mm
Width (with stand)	550.1 mm
Height (with stand)	213.9 mm
Depth (without stand)	213 mm
Height (without stand)	381 mm
Weight (without stand)	6200 g
