NEC MultiSync E231W User Manual

English-6

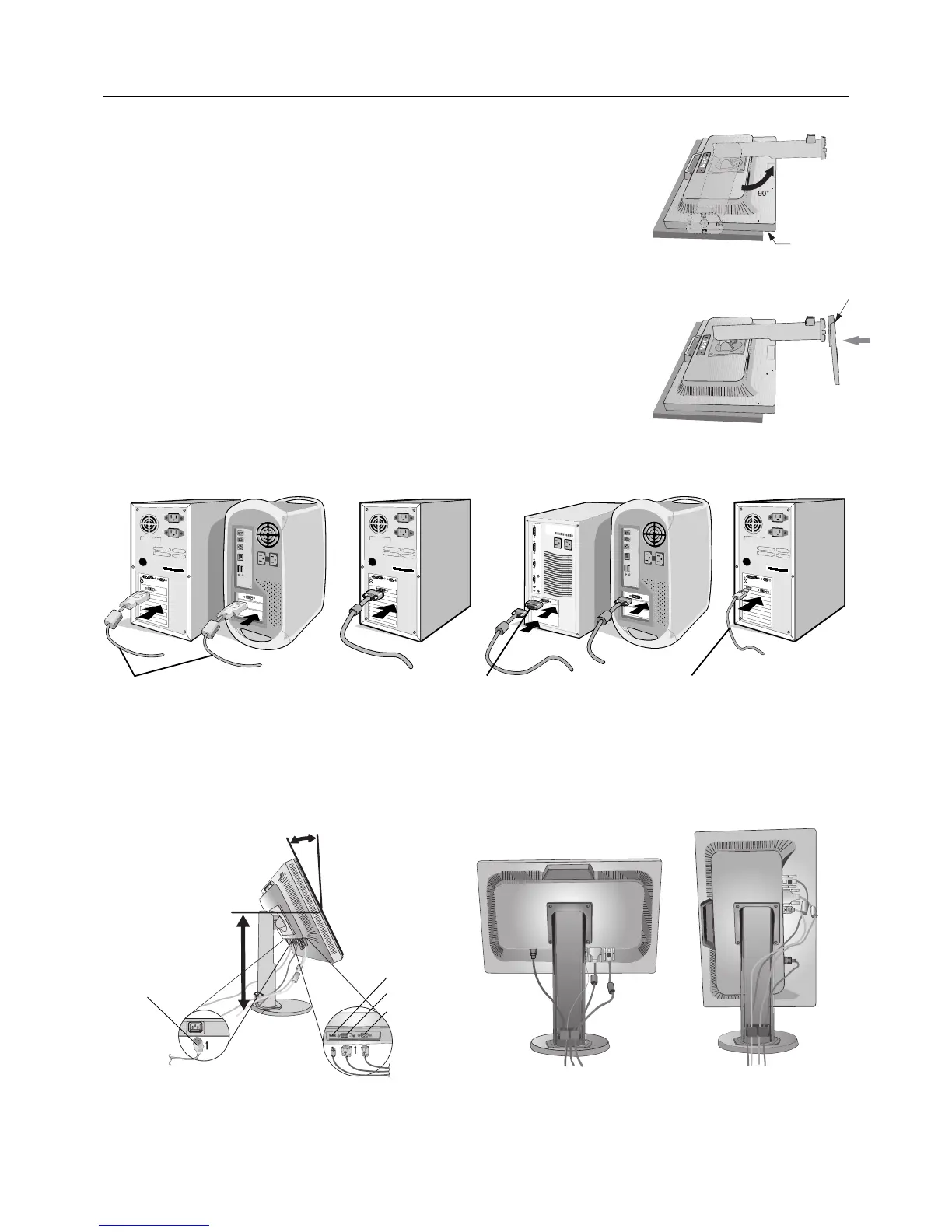

Quick Start
To attach the Base to the LCD stand:
1. Place monitor face down on a non-abrasive surface (Figure 1).
NOTE: Handle with care when monitor facing down, for avoiding damage to the front
control buttons.
2. Please pivot base 90 degrees as shown in Figure 1.
NOTE: Handle with care when pulling the stand.
3. Attach the base stand to LCD monitor and lock screws of base stand bottom (Figure 2).
NOTE: Reverse this procedure if you need to re-pack the monitor.
To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the
connector of the display card in your system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the
connector of the display card in your system (Figure A.2). Tighten all screws.
For the MAC: Connect the Macintosh cable adapter to the computer, then attach the
15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure A.3).
Tighten all screws.
For the PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display card in your system
(Figure A.4).
Figure 2
Screws
Figure 1
Control
buttons
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
3. Place hands on each side of the monitor to tilt the LCD panel 20-degree angle and lift up to the highest position
(FigureB.1).
4. Connect all cables to the appropriate connector on the back of the monitor (Figure B.1).
5. Position the Video Signal Cable and power cord between the holes on the Stand, as indicated in Figure B.2/Figure B.3.
Power Cord
D-SUB
Figure B.1 Figure B.2 Figure B.3
Highest stand position
20˚ Tilt
DVI
DisplayPort
NOTE: 1. Please use a DisplayPort cable with a DisplayPort logo.
2. The DisplayPort connector does not supply power to the connected component.
3. When removing the DisplayPort cable, hold down the top button to release the lock.
Figure A.1
Figure A.3
Macintosh
Cable Adapter
(not included)
Figure A.2
DVI signal cable
Figure A.4
DisplayPort cable
(not included)

NEC MultiSync E231W Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
Viewing angle, horizontal	176 °
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 83 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	720 x 480, 1440 x 1050, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
DVI-I ports quantity	0
Power consumption (standby)	0.34 W
Power consumption (typical)	28 W
Power consumption (PowerSave)	23 W
Certification	EPEAT Gold; CE; ErP; TCO 5.0; TÜV; TÜV GS; GEEA/Energy Label; Energy Star 5.0; FCC Class B; PCT/Gost; UL/C-UL or CSA; CCC; ISO 9241-307; MPR II/ MPR III
Product color	White
Market positioning	Business
Power requirements	100-120 V/220-240 V; 0.6 A/0.35 A
Pivot angle	0 - 90 °
Tilt angle range	-5 - 20 °
Height adjustment	110 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Bezel width (side)	19.2 mm
Depth (with stand)	381.1 mm
Width (with stand)	550.1 mm
Height (with stand)	213.9 mm
Depth (without stand)	213 mm
Height (without stand)	381 mm
Weight (without stand)	6200 g
