English−17
English

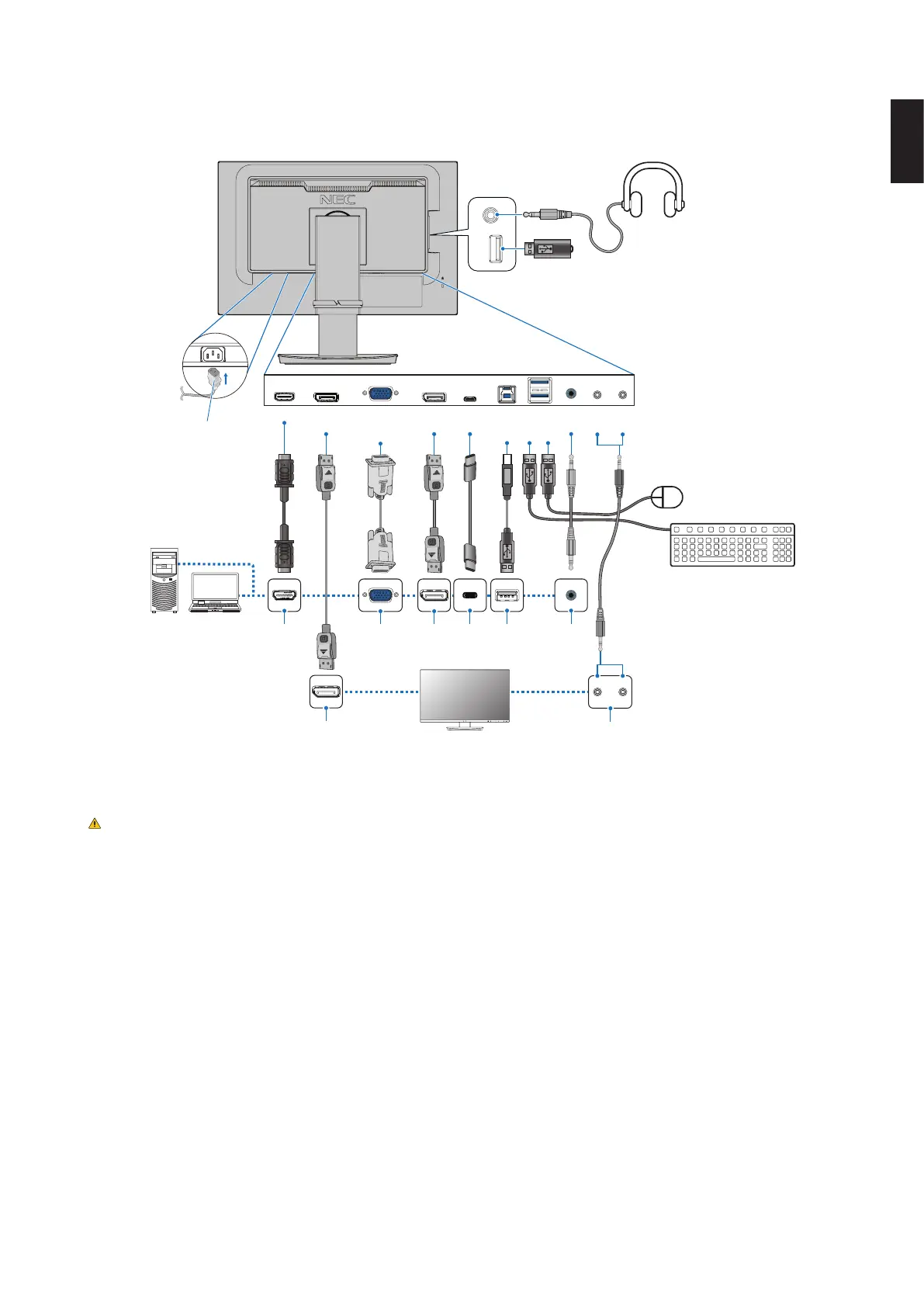

3. Connect devices to the monitor.
NOTE: Make sure the signal cable is fully connected to the monitor and the computer.
DisplayPort
OUT
Power cord
HDMI
USB-C
DisplayPortHDMI USB
Type-C
Headphone
USB Downstream (Type-A)
DisplayPort
IN
VGA IN
(mini D-Sub
15-pin)
USB
Downstream
(Type-B) (Type-A)
Audio
IN
AudioUSB
DisplayPort IN
VGA IN
(mini D-Sub
15-pin)
Master monitor
ControlSync
IN OUT
ControlSync
IN OUT
Sub monitor
NOTE: • When removing the DisplayPort cable, hold down the button to release the lock.
• Please use a certified DisplayPort cable.
• Please use a High Speed HDMI cable with the HDMI logo.
CAUTION: • Use the provided specified cables with this product so as not to interfere with radio and television
reception.
For DisplayPort, HDMI, USB and USB-C, please use a shielded signal cable.
For mini D-Sub 15-pin, please use a shielded signal cable with ferrite core.
Use of other cables and adapters may cause interference with radio and television reception.
• Please refer to “CAUTION 3” and “CAUTION 9”.
NOTE: • Adjustment of the volume control as well as the equalizer to other settings than the center position may increase
the ear-/headphones output voltage and therefore the sound pressure level.
• Incorrect cable connections may result in irregular operation, damage display quality/components of the LCD
module and/or shorten the module’s life.
• Do not use an attenuating (built-in resistor) audio cable. Using an audio cable with a built-in resistor will lower
the sound level.
