ECO MODE
Decreases the amount of power consumed by reducing the brightness level.
1: Decreases the brightness by 25%.
2: Decreases the brightness by 50%.
CUSTOM: Decreases the brightness level as determined by the user.
Refer to the Advanced OSM menu for custom setting instructions.
AUTO BRIGHTNESS
There are three settings for Auto Brightness.
OFF: No function.
1: Adjusts the brightness automatically, by detecting the brightness level of your environment and adjusting the
monitor with the best BRIGHTNESS setting*
1
.
2: Adjusts the brightness automatically for the best BRIGHTNESS setting based on the white display area. The
environmental brightness sensor (Ambibright sensor) has no function.
NOTE: Do not cover environmental brightness sensor (Ambibright sensor).
*
1
: Please refer to Page 25 for full “Auto Brightness” information.
BLACK LEVEL
Adjust the black level.
Auto Adjust (Analog input only)
Automatically adjusts the Image Position and H. Size settings and Fine settings.
Image Controls
LEFT / RIGHT
Controls Horizontal Image Position within the display area of the LCD.
DOWN / UP
Controls Vertical Image Position within the display area of the LCD.
H.SIZE (V.SIZE) (Analog input only)
Adjusts the horizontal size by increasing or decreasing this setting.
If the “AUTO Adjust function” do not give you a satisfactory picture setting, a further tuning can be performed using
the “H.Size (or V.Size)” function (dot clock). For this a Moiré test pattern could be used. This function may alter the
width of the picture. Use Left/Right Menu to center the image on the screen. If the H.Size (or V.Size) is wrongly
calibrated, the result would look like on the left drawing. The image should be homogeneous.
FINE (Analog input only)
Improves focus, clarity and image stability by increasing or decreasing this setting.
If the “Auto Adjust function” and the “H.Size” function do not give you a satisfactory picture setting, a fine tuning can
be performed using the “Fine” function.
For this a Moiré test pattern could be used. If the Fine value is wrongly calibrated, the result would look like on the
left drawing. The image should be homogeneous.

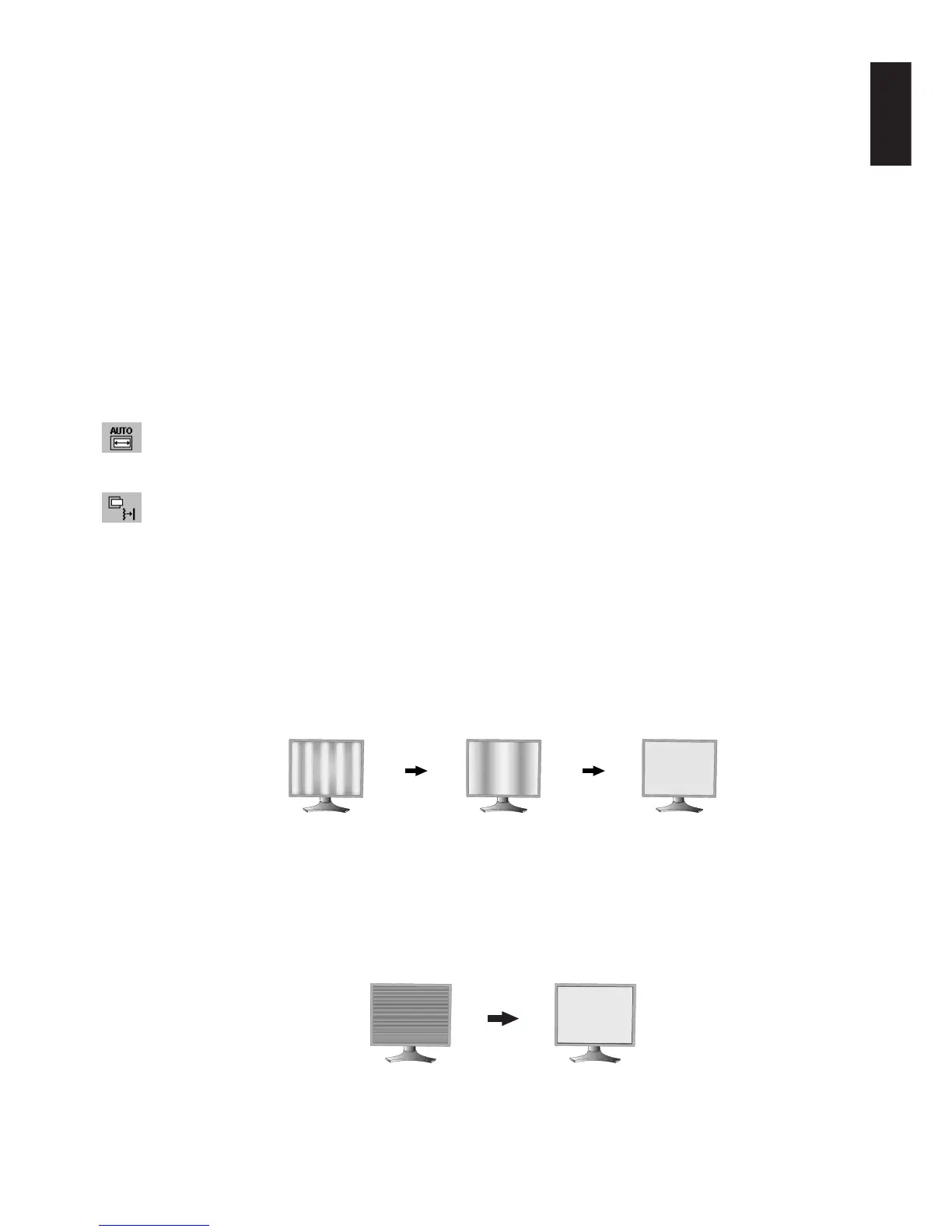

When H.SIZE value is
wrong.
When H.SIZE value is
improved.
When H.SIZE value is
correct.
When FINE value is
wrong.
When FINE value is
correct.

NEC MultiSync LCD2090UXi Specifications

General

Pixel pitch	0.255 mm
Response time	16 ms
Display diagonal	20.1 \
Display resolution	1600 x 1200 pixels
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Viewable size diagonal	510 mm
Contrast ratio (typical)	700:1
Display number of colors	16.78 million colors
Display brightness (typical)	280 cd/m²
Audio system	MultiSync Soundbar 90
Power requirements	100-120 V/220-240 V; 0.68 A/0.29 A
Certification	CE; TCO 03; TÜV Ergonomics; TÜV GS; C-tick; GEEA/Energy Label; FCC Class B; PCT/Gost; UL/C-UL or CSA; CCC; ISO 13406-2; MPR II/ MPR III; PCBC/B-mark; PSB; RoHS
Product color	Silver
Market positioning	-
Cable lock slot	Yes
Tilt angle range	-5 - 30 °
Height adjustment	150 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (typical)	50 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	30 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Bezel width (side)	14.6 mm
Depth (without stand)	247.3 mm
Width (without stand)	439.2 mm
Height (without stand)	415.5 mm
Weight (without stand)	9700 g
