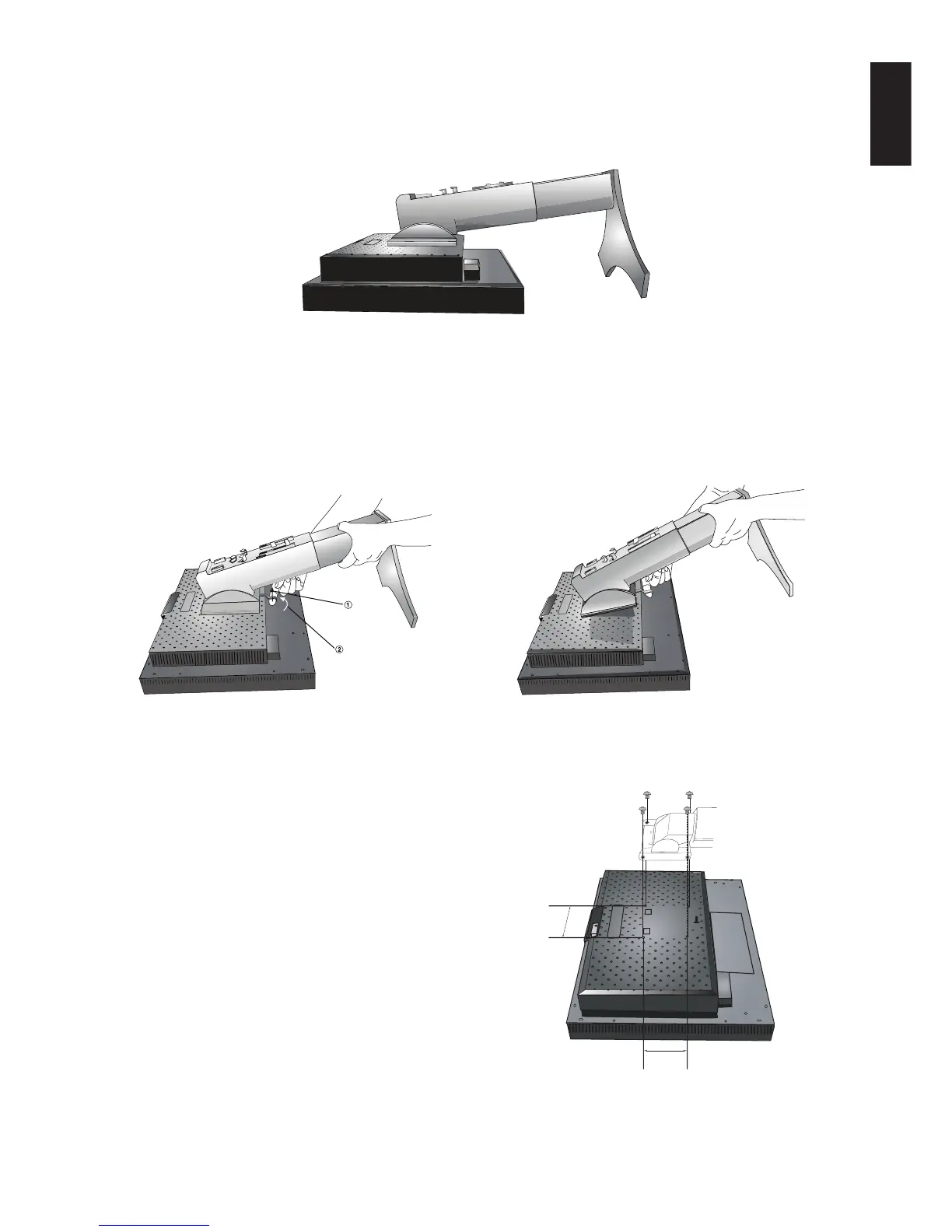

Figure S.1

4. Place one hand around the base and one hand on the Quick Release Lever. Move the Quick Release Lever in the direction

indicated by the arrows (Figure S.2).

5. Lift up the bottom of the stand to unhook it from the monitor (Figure S.3). The monitor can now be mounted using and

alternate method. Reverse process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method (100 mm pitch).

NOTE: Handle with care when removing monitor stand.

Figure S.2

Flexible Arm Installation

This LCD monitor is designed for use with a flexible arm.

1. Follow the instructions on how Remove Monitor Stand for

Mounting to remove the stand.

2. Using the 4 screws from the stand removal and attach the arm to

the monitor (Figure F.1).

Caution: Use ONLY the screws (4 pcs) that are included when

mounting to avoid damage to the monitor and stand.

To fulfil the safety requirements the monitor must be

mounted to an arm which guaranties the necessary

stability under consideration of the weight of the monitor.

The LCD monitor should only be used with an approved

arm (e.g. GS mark).

Figure S.3

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place hands on each side of the monitor and lift up to the highest position.

3. Place monitor face down on a non-abrasive surface (Figure S.1).

100mm

Figure F.1

Slide

Questions and Answers:

Need help?

Do you have a question about the NEC MultiSync LCD2090UXi and is the answer not in the manual?

NEC MultiSync LCD2090UXi Specifications

General

Pixel pitch	0.255 mm
Response time	16 ms
Display diagonal	20.1 \
Display resolution	1600 x 1200 pixels
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Viewable size diagonal	510 mm
Contrast ratio (typical)	700:1
Display number of colors	16.78 million colors
Display brightness (typical)	280 cd/m²
Audio system	MultiSync Soundbar 90
Power requirements	100-120 V/220-240 V; 0.68 A/0.29 A
Certification	CE; TCO 03; TÜV Ergonomics; TÜV GS; C-tick; GEEA/Energy Label; FCC Class B; PCT/Gost; UL/C-UL or CSA; CCC; ISO 13406-2; MPR II/ MPR III; PCBC/B-mark; PSB; RoHS
Product color	Silver
Market positioning	-
Cable lock slot	Yes
Tilt angle range	-5 - 30 °
Height adjustment	150 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (typical)	50 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	30 - 80 %
Sustainability certificates	ENERGY STAR
