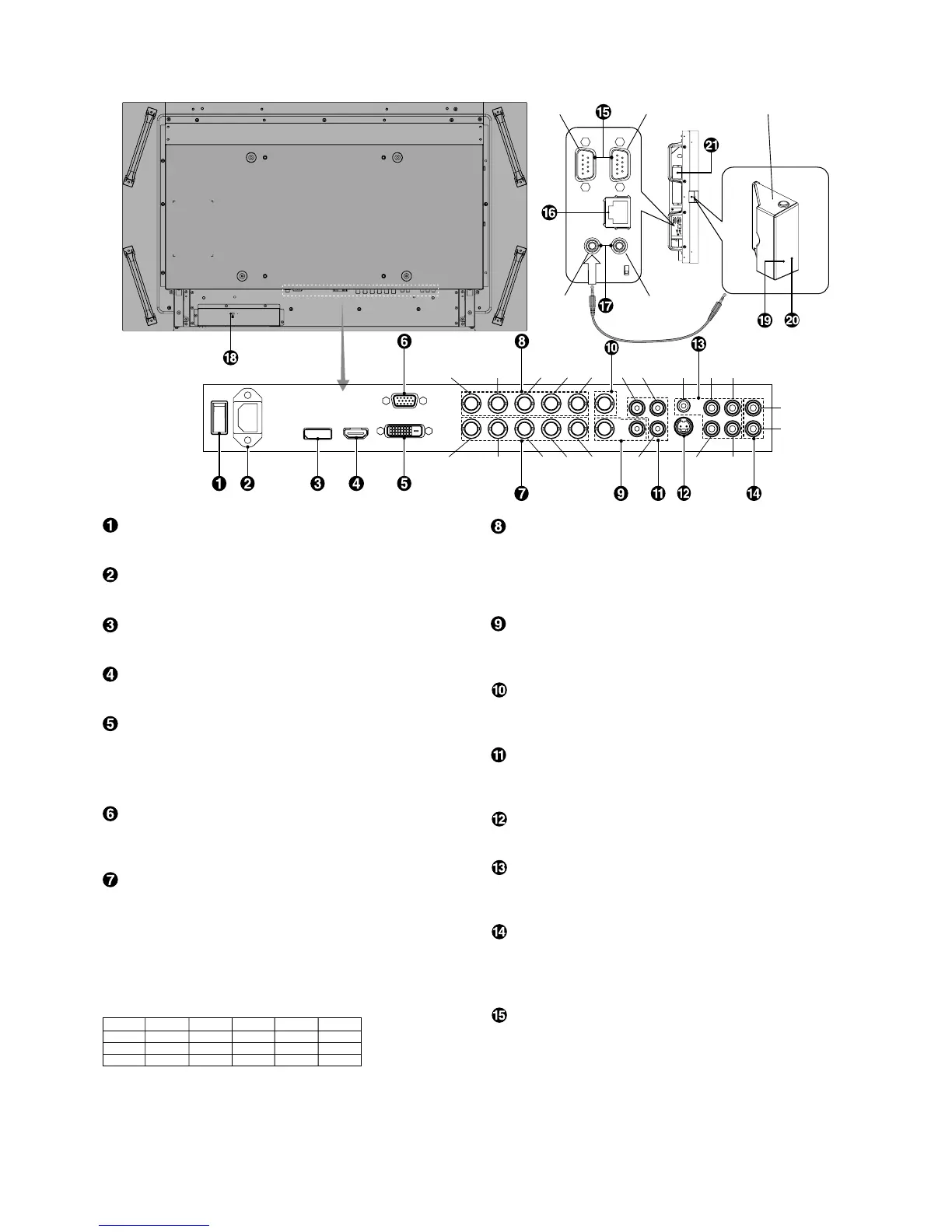

Terminal Panel
RGB/HV OUT (BNC)
To output the signal from the RGB/HV IN connector or
VGA IN connector which is on screen to an input on a
separate device. If both signals are not on screen, outputs
the signal from RGB/HV IN connector.
VIDEO IN connector (BNC and RCA)
To input a composite video signal. BNC and RCA connectors
are not available at the same time (Use only one input).
VIDEO OUT connector (BNC)
To output the composite video signal from the VIDEO IN
connector.
DVD/HD connector (RCA)
Connecting equipment such as a DVD player, HDTV device,
or Set-Top-Box.
S-VIDEO IN connector (Mini DIN 4 pin)
To input the S-video (Y/C separate signal).
AUDIO IN 1, 2, 3
To input audio signal from external equipment such as a
computer, VCR or DVD player.
AUDIO OUT
To output the audio signal from the AUDIO IN 1, 2, 3,
DPORT, HDMI, and TV jack to an external device (stereo
receiver, amplifier, etc.).
EXTERNAL CONTROL (D-Sub 9 pin)
IN connector: Connect RS-232C input from external
equipment such as a PC in order to control RS-232C
functions.
OUT connector: Connect RS-232C output. To connect
multiple MultiSync monitors via RS-232C daisy Chain.
Main Power Switch
On/Off switch to turn main power ON/OFF.
AC IN connector
Connects with the supplied power cord.
DISPLAYPORT connector
To input DisplayPort signals.
HDMI connector
To input digital HDMI signals.
DVI IN (DVI-D)
To input digital RGB signals from a computer or HDTV
device having a digital RGB output.
* This connector does not support analog input.
VGA IN (mini D-Sub 15 pin)
To input analog RGB signals from a personal computer or
from other RGB equipment.
RGB/HV IN [R, G, B, H, V] (BNC)
To input analog RGB signals or signals from other RGB
equipment.
This is also to connect equipment such as a DVD player,
HDTV device and Set-Top-Box. A Sync-on-Green signal can
be connected to the G connector.
This input can be used with an RGB, DVD/HD or Video
source. Please select signal type in TERMINAL SETTING.
