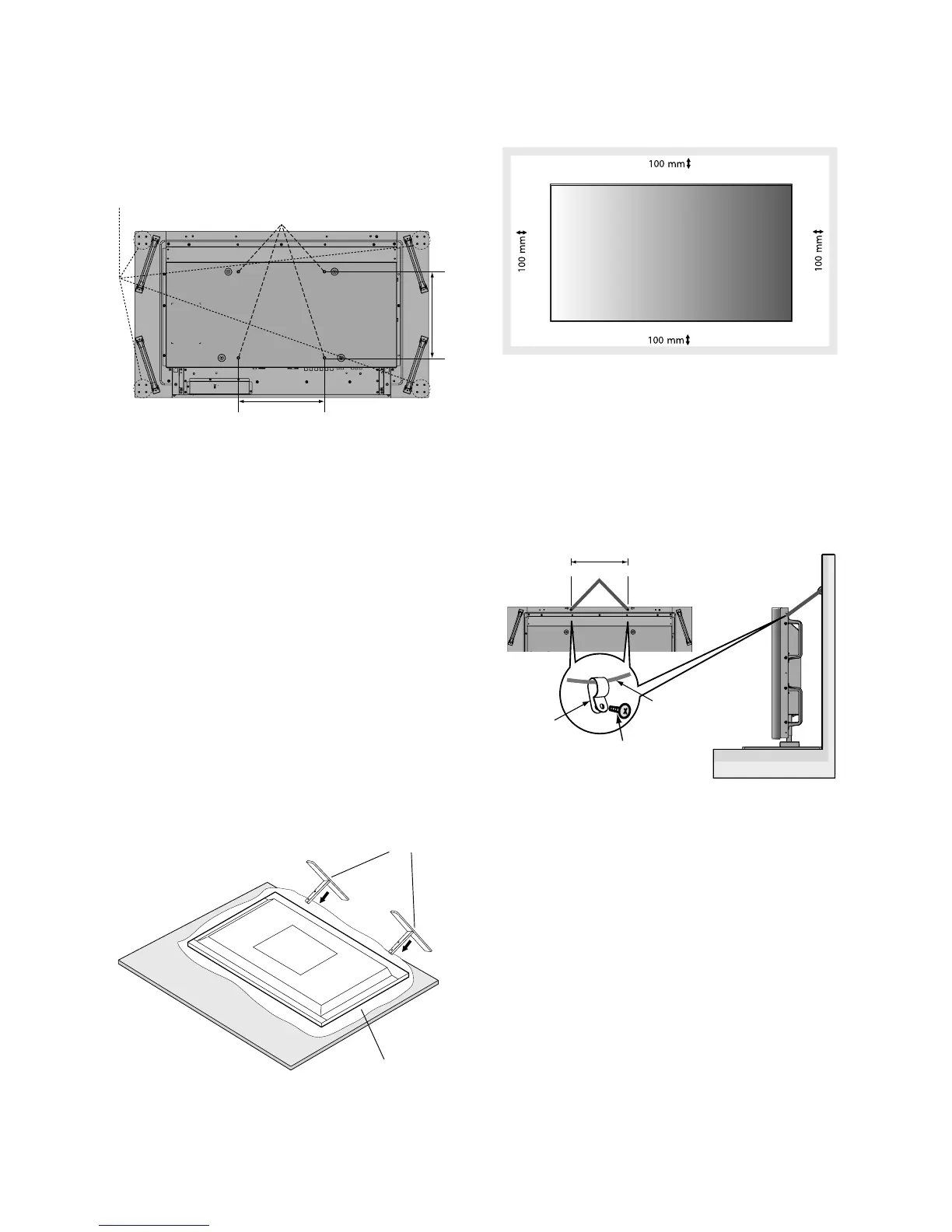

Attaching Mounting Accessories
The display is designed for use with the VESA mounting
system.
1. Attach Mounting Accessories
Be careful to avoid tipping monitor when attaching
accessories.
Mounting accessories can be attached with the monitor in
the face down position. To avoid damaging the screen face,
place the protective sheet on the table underneath the LCD.
The protective sheet was wrapped around the LCD in the
original packaging. Make sure there is nothing on the table
that can damage the monitor.
When using mounting accessories other than NEC
compliant and approved, they must comply with the VESA-
compatible mounting method.
2. Installing and removing optional table
top stand
CAUTION: Installing and removing the stand must be done
by two or more people.
To install, follow those instructions included with the stand or
mounting apparatus. Use only those devices recommended
by the manufacturer.
NOTE: Before using optional table top stand, remove
installed thumbscrews from the display first.
Use ONLY thumbscrews which are installed
on the display.
Handle with care when mounting LCD monitor stand and
avoid pinching your fingers.
Screw
Cord or chain
Clamp
Allow adequate ventilation or provide air conditioning around
the monitor, so that heat can properly dissipate away from
the unit and mounting apparatus; especially when you use
monitors in multiple screen.
4. Prevent Tipping
When using the display with the optional table top stand,
fasten the LCD to a wall using a cord or chain that can
support the weight of the monitor in order to prevent the
monitor from falling. Fasten the cord or chain to the monitor
using the clamps and screws.
304 mm
3. Ventilation Requirements
When mounting in an enclosed space or recessed area,
leave adequate room between the monitor and the
enclosure to allow heat to disperse, as shown below.
Optional table top stand
Table
Protective Sheet
Before attaching the LCD monitor to the wall, make sure
that the wall can support the weight of the monitor.
Be sure to remove the cord or chain from the wall before
moving the LCD.
Screw Holes
NOTE: Place stand onto monitor so that the long end of the
feet are in the front.
VESA Mounting Interface
For NEC mounting accessory only
300 mm
300 mm
To Next Page
