NETGEAR Prosafe GS716T User Manual

Page 15 of 20

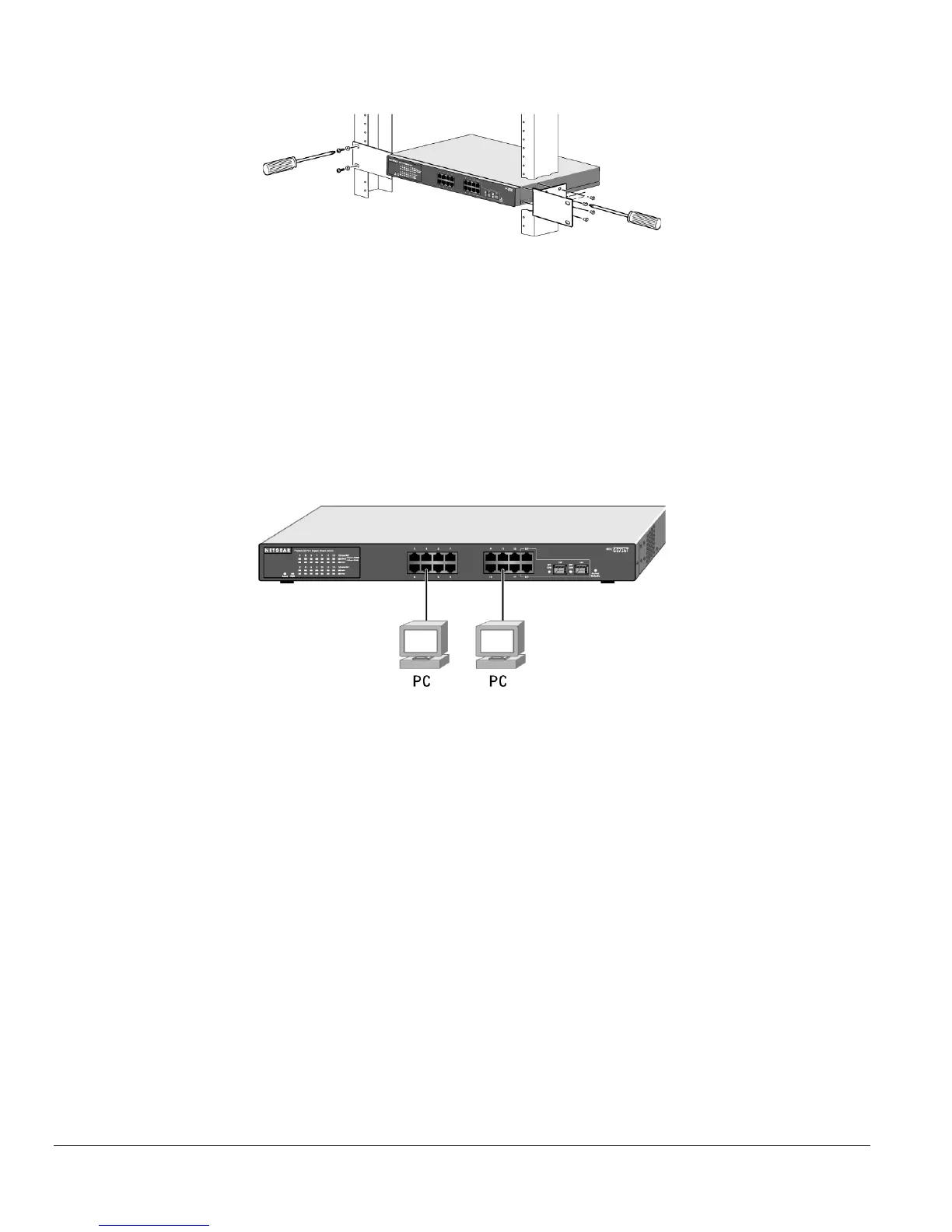

Figure 4-1. Attaching Mounting Brackets
Step 3: Checking the Installation
Before you apply power:
o Inspect the equipment thoroughly.
o Verify that all cables are installed correctly.
o Check cable routing to make sure cables are not damaged or creating a safety hazard.
o Be sure all equipment is mounted properly and securely.
Step 4: Connecting Devices to the Switch
The following procedure describes how to connect devices to the switch’s RJ-45 ports. Your NETGEAR ProSafe GS716T Gigabit Smart Switch
contains Auto Uplink™ technology, which allows you to attach devices using either straight-through or crossover cables.
Figure 4-2. Connecting Devices to the Switch
Connect each device to an RJ-45 network port on the switch’s front panel (see Figure 4-4). Use Category 5 (Cat5) unshielded twisted-pair (UTP)
cable terminated with an RJ-45 connector to make these connections.
Note: Ethernet specifications limit the cable length between the switch and the attached device to 100 m (328 ft).
Step 5: Installing a SFP GBIC Module
The following procedure describes how to install a SFP GBIC module in the switch’s SFP GBIC module bays. Standard SFP GBIC Modules are
sold separately from the GS716T. If you do not want to install a SFP GBIC module at this time, skip this procedure.
To install a SFP GBIC module:
z Insert the SFP module into the SFP GBIC module bay. Press firmly to ensure the module seats into the connector.
To install additional Gigabit Ethernet modules, repeat this procedure

NETGEAR Prosafe GS716T Specifications

Network Protocol and Standards Compatibility

Protocol 1	IEEE 802.3 10BASE-T
Protocol 2	IEEE 802.3u 100BASE-TX
Protocol 3	IEEE 802.3ab 1000BASE-T

Performance Specifications

Bandwidth	32 Gbps
Network latency	Less than 20 microseconds
Buffer memory	256 KB

Power

Power Consumption	32 W maximum
Input Voltage	100-240VAC
Frequency	50-60 Hz

Operating Environment

Operating temperature	0 to 40°C
Storage temperature	-20 to 70°C
Operating humidity	90% maximum relative humidity

Weight and Dimensions

Dimensions	1.7 x 17.3 x 8.1 in
Weight	6.03 lbs
Weight in kg	2.74 Kg
