Rear panel and side panel
The following figure shows the connectors and buttons on the rear and side panels.

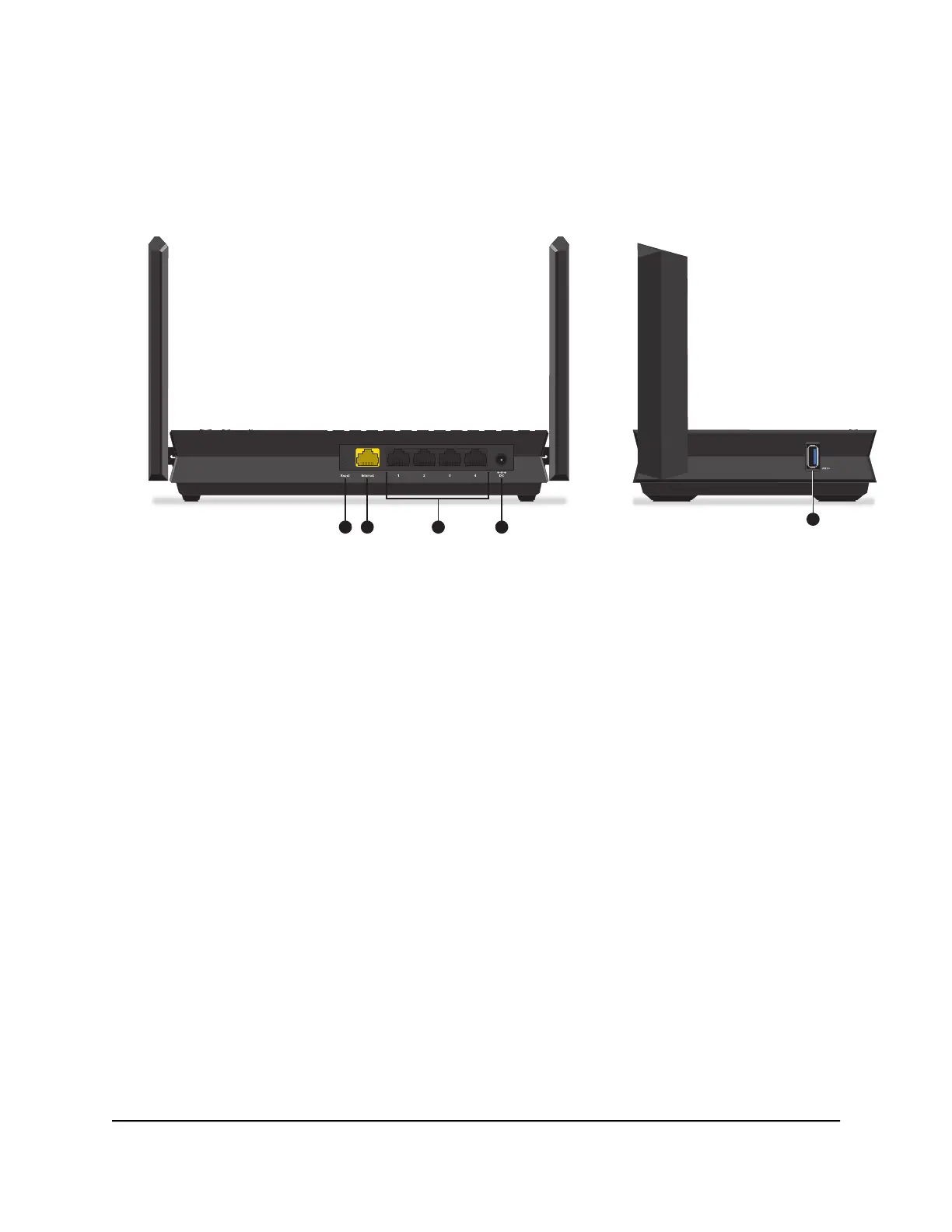

Figure 3. Rear panel
The rear side panels contains the following components:
1. Reset button. Pressing the Reset button resets the router. If the Reset button is
pressed for at least 10 seconds and then released, the router returns to its factory
settings.
2. Internet port. One Gigabit Ethernet RJ-45 WAN port to connect the router to an
Internet modem such as a cable modem or DSL modem.
3. Ethernet ports. Four Gigabit Ethernet RJ-45 LAN ports. Use these ports to connect
the router to LAN devices.
4. DC power connector. Connect the power adapter that came in the product package
to the DC power connector.
5. USB 3.0 port. One USB 3.0 port to connect USB storage devices to the router.
User Manual12Hardware Setup
4-Stream AX1800 WiFi 6 Router Model RAX15
