3 - CONTROLS AND INSTRUMENTS

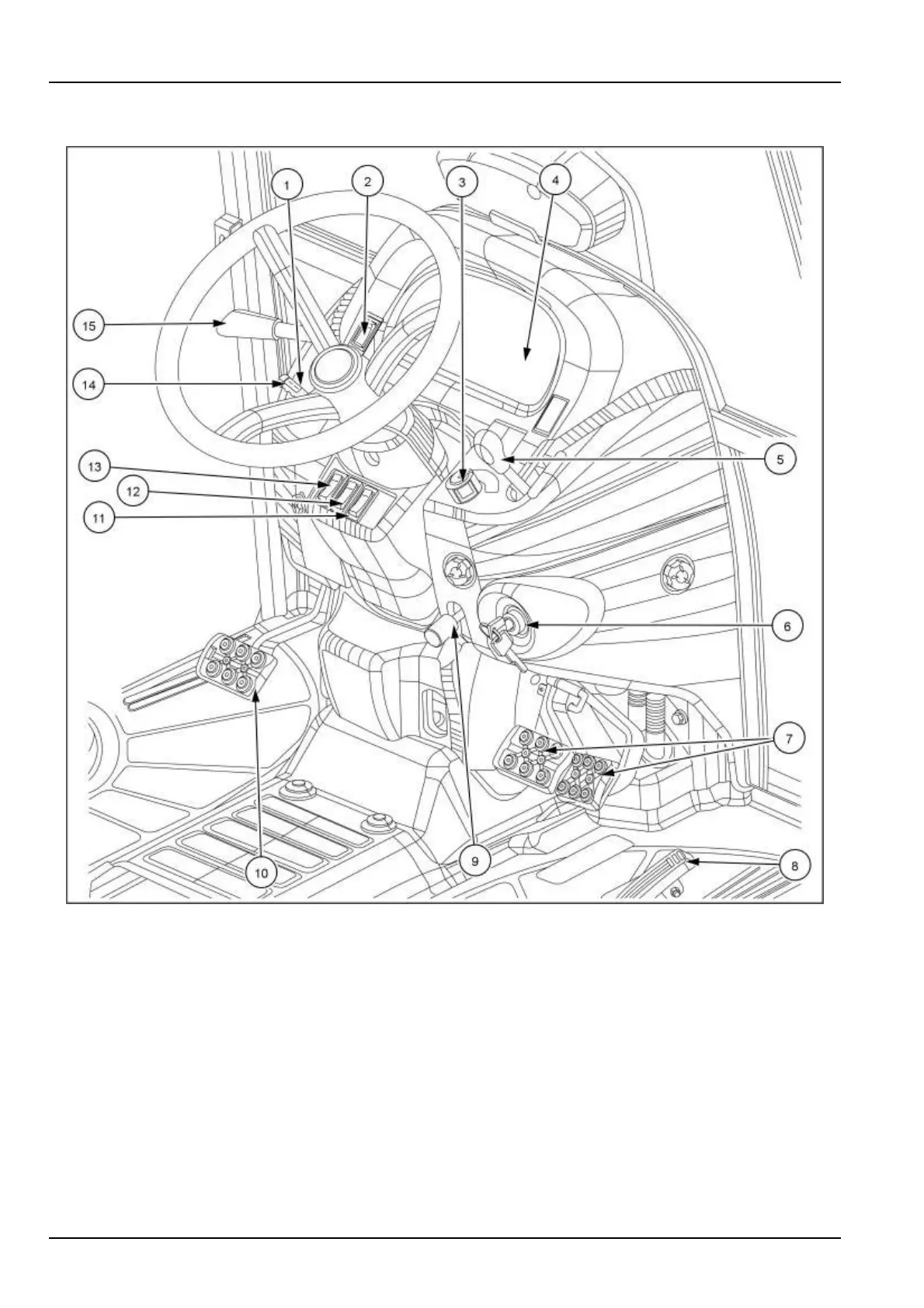

Component location - Mechanical transmission
NHIL22CT00306GA 1
Mechanical transmission
(1) Light switch (5) Throttle lever (9) Steering wheel tilt lever (13) Hazard warning light
indicator
(2) Diesel Particulate Filter
(DPF) switch
(6) Key switch (10) Clutch pedal (14) Turn signal light switch
(3) Power Take-Off (PTO)
switch
(7) Brake pedals (11) Grille work light switch (15) Shuttle lever
(4) Instrument panel (8) Throttle pedal (12) Horn switch
