3 - CONTROLS AND INSTRUMENTS

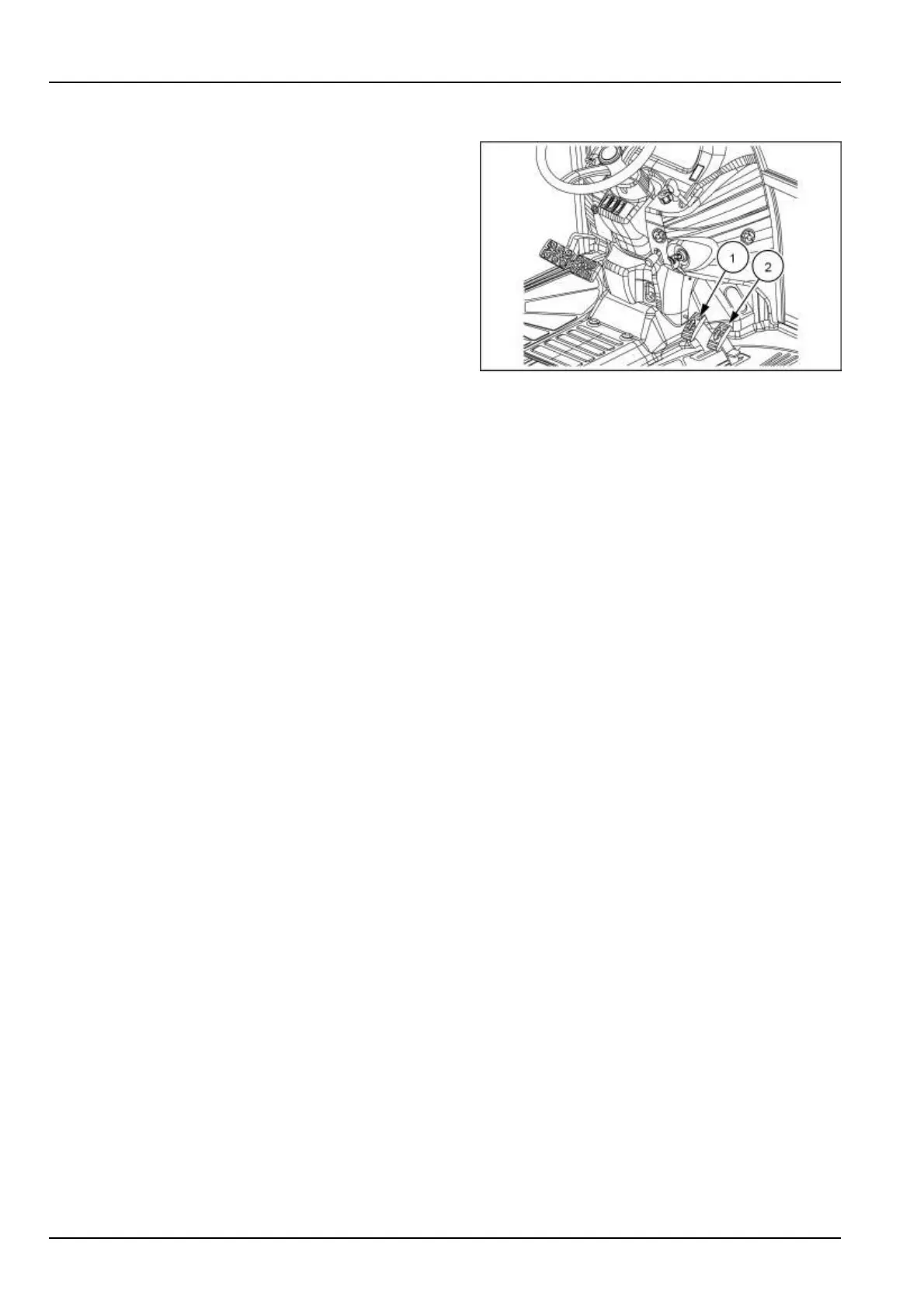

Hydrostatic Transmission (HST) foot pedals
The ground speed of tractors equipped with a hydrostatic
transmission is continuously variable, from zero to full
rated speed in each range. Speed is controlled by the
HST forward (1) and reverse (2) pedals located on the
right-hand foot platform.
For forward travel:
•
Depress the forward pedal (1) to reach the desired
ground speed.
For reverse travel:
•
Depress the reverse pedal (2) to reach the desired
ground speed.
NOTE: Pedal will return to the neutral position when the
operator removes its foot from the pedal, unless the HST
cruise control switch is placed in the "ON" position.
NHIL22CT00334AA 1
3-36
