6
-
MAINTENANCE
Fuse
and
relay
locations

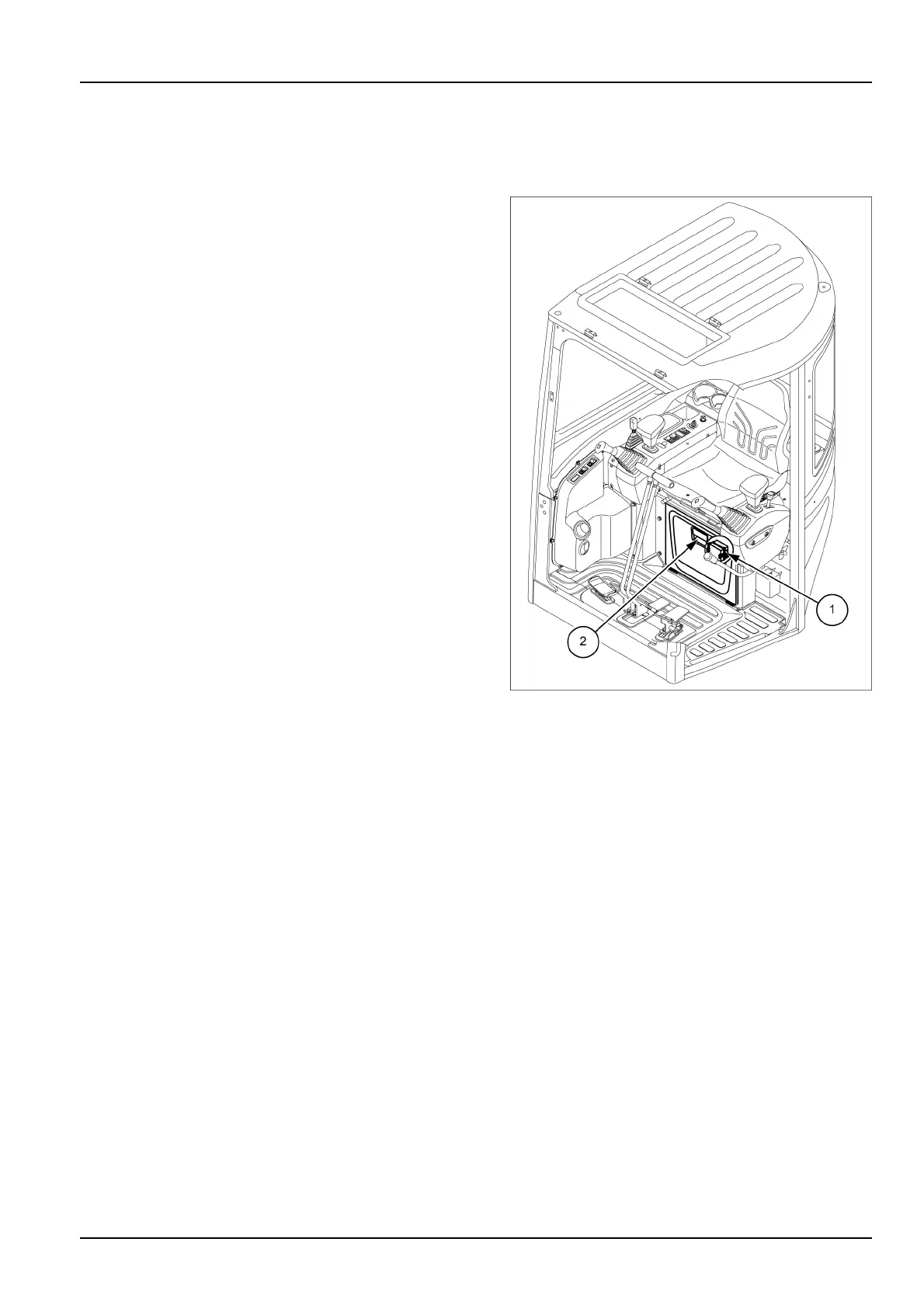

Fuses
T
o
access
the
fuse
box
(1)
,
open
the
door
(2)
located
below
the
operator's
seat.
The
fuse
box
cover
indicates
the
function
and
amper-
age
of
each
fuse.
NOTICE:
before
changing
fuses
or
relays,
turn
the
starter
key
to
the
OFF
position.
NOTICE:
never
replace
a
fuse
with
a
fuse
of
a
different
amperage.
NOTE:
use
the
provided
fuse
puller
to
remove
and
install
the
fuses.
SMIL16MEX0372BB
1
6-71
212
214
