3
-

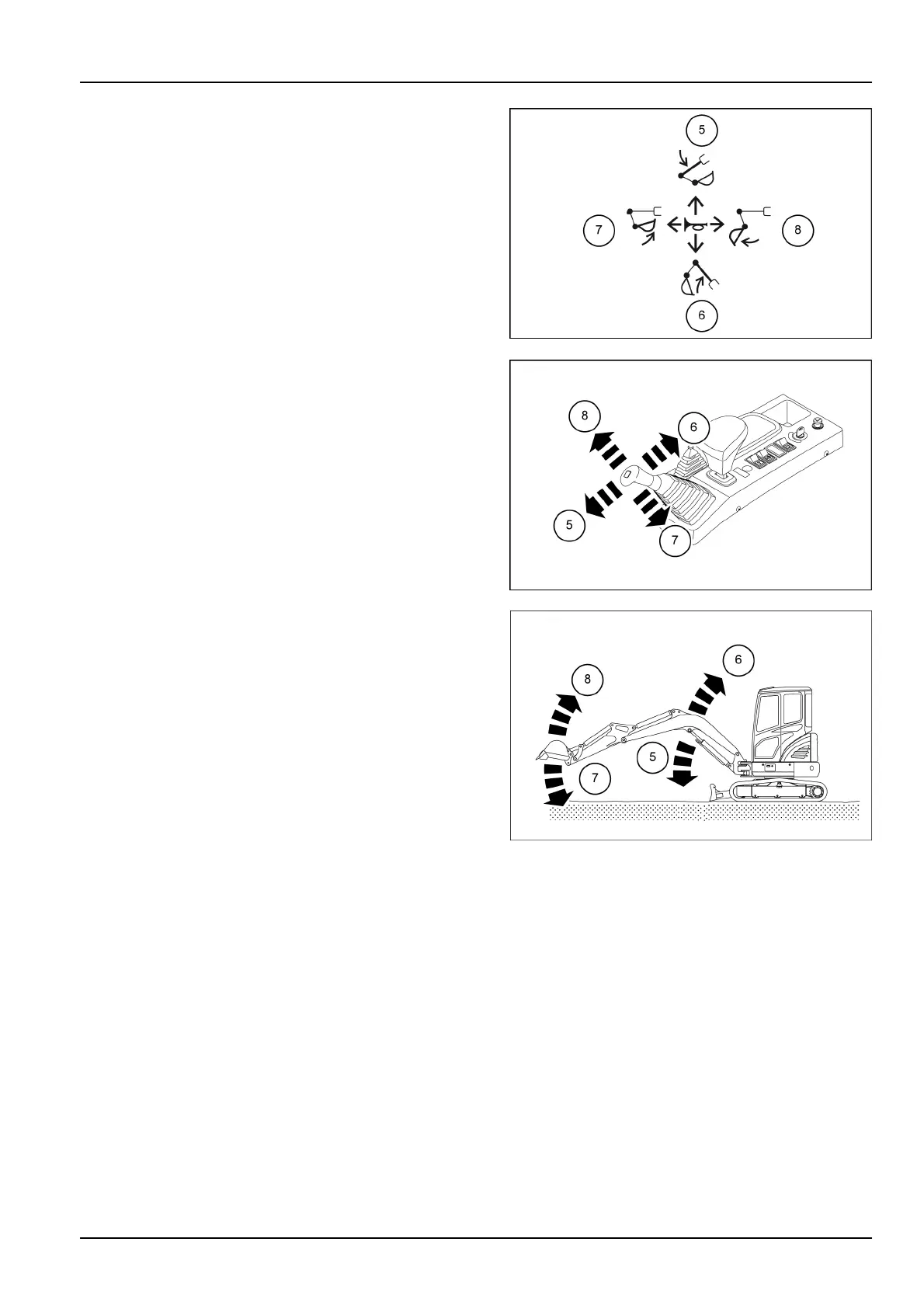

CONTROLS
AND
INSTRUMENTS
Right-hand
control
lever:
5.
The
boom
lowers.
6.
The
boom
raises.
7.
The
bucket
retracts
(lling).
8.
The
bucket
extends
(dumping).
NOTE:
the
movement
speed
of
the
boom
or
of
the
bucket
depends
on
the
control
lever
tilt
angle.
In
the
intermediate
position
two
movements
can
be
obtained
simultaneously
.
SMIL16MEX3076AB
