New Holland TL100 User Manual

Auxiliary
starter
device
Alternator
charge
Fuel
level
Automatic
fuel cut--off
device
Engine speed
(rpm x 100)
Total hours
worked
Engine
oil pressure
Engine
coolant
temperature
Lights
Front headlights
on full beam
Front headlights
dipped
Brake lights
(STOP)
Front work
lights
Rear work
lights
Horn
Radio
Memory
Indicator
lights
Indicator lights
on first trailer
Indicator lights
on second trailer
Windscreen
washer/wiper
Rear windscreen
washer/wiper
Heated air
temperature
Heated
fan
Dry air filter
Parking
brake
Rotating beacon
on cab roof
Caution!
Corrosive
substances
Power take--off
Gears in neutral
Creeper speed
Slow or
low speed
adjustment
Fast
or high speed
adjustment
Tractor
ground
speed
Differential
lock
Rear transmission
oil
temperature
Transmission
oil pressure
4WD engaged
4WD disengaged
Caution!
Hazard Lights
Adjustment
control
Hydraulic lift --
operating in
position control
Hydraulic lift --
operating in
draft control
Accessory
power socket
Implement
power socket
Hydraulic
lift disconnected
% slipping
of rear wheels
Caution,
under pressure!
Open carefully
Arms
raised
Arms
lowered
Maximum
lifting height
Hydraulic jack
extended
Hydraulic jack
retracted
Hydraulic jack
floating
Fault!
Refer to
Use and
Maintenance
manual
Air conditioning
temperature
Intercooler
temperature
Engine
coolant
level
Transmission
oil filter
xix

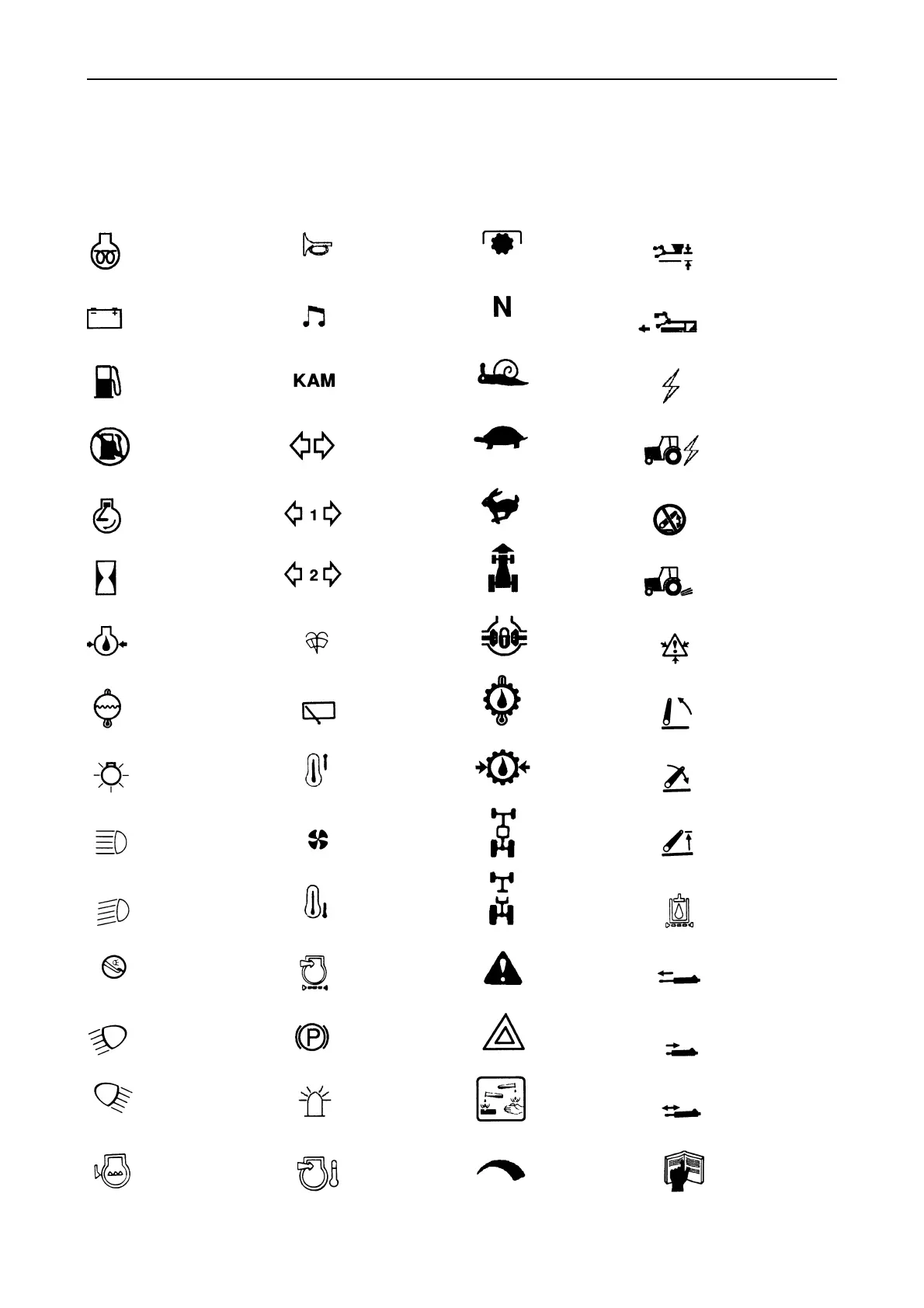

STANDARDISED SYMBOLS
For optimal tractor use, the following symbols and definitions have been adopted in compliance with
current standardisation procedures. The symbols are followed by a brief explanatory description.

New Holland TL100 Specifications

General

Engine Power	100 hp
Drive	4WD
Cylinders	4
Transmission Gears	12 forward and 12 reverse
PTO Power	85 hp
PTO Speed	540/1000 RPM
Hydraulic Remotes	2
Displacement	4.5 L
Transmission Type	Mechanical
