DESCRIPTION
Page 4 / 20 GEOM1210-I - GEOM1220-I
DESCRIPTION
 GEOM1210-I and GEOM1220-I are a mid-size line array, 2 ways active/passive, with a 12’’ LF and a 1.4’’ HF.
 You can change the HF horizontal directivity from 80° to 120° by adding a pair of magnetic flanges.
 The GEOM12 can be stacked of flown with the HF waveguide exit on the left or the right side of the front panel, allowing
to broaden or narrow the stereo image depending on your need and the characteristics of the venue. We recommend to
build system with the HF waveguide on the outside of each assembly (larger stereo image).
 GEOM1210-I: 10° vertical dispersion
 GEOM1220-I: 20° vertical dispersion
 Versions:
• GEOM1210-I: fix installations; Black
• GEOM1210-IPW: fix installations; White
• GEOM1220-I: fix installations; Black
• GEOM1220--PW: fix installations; White

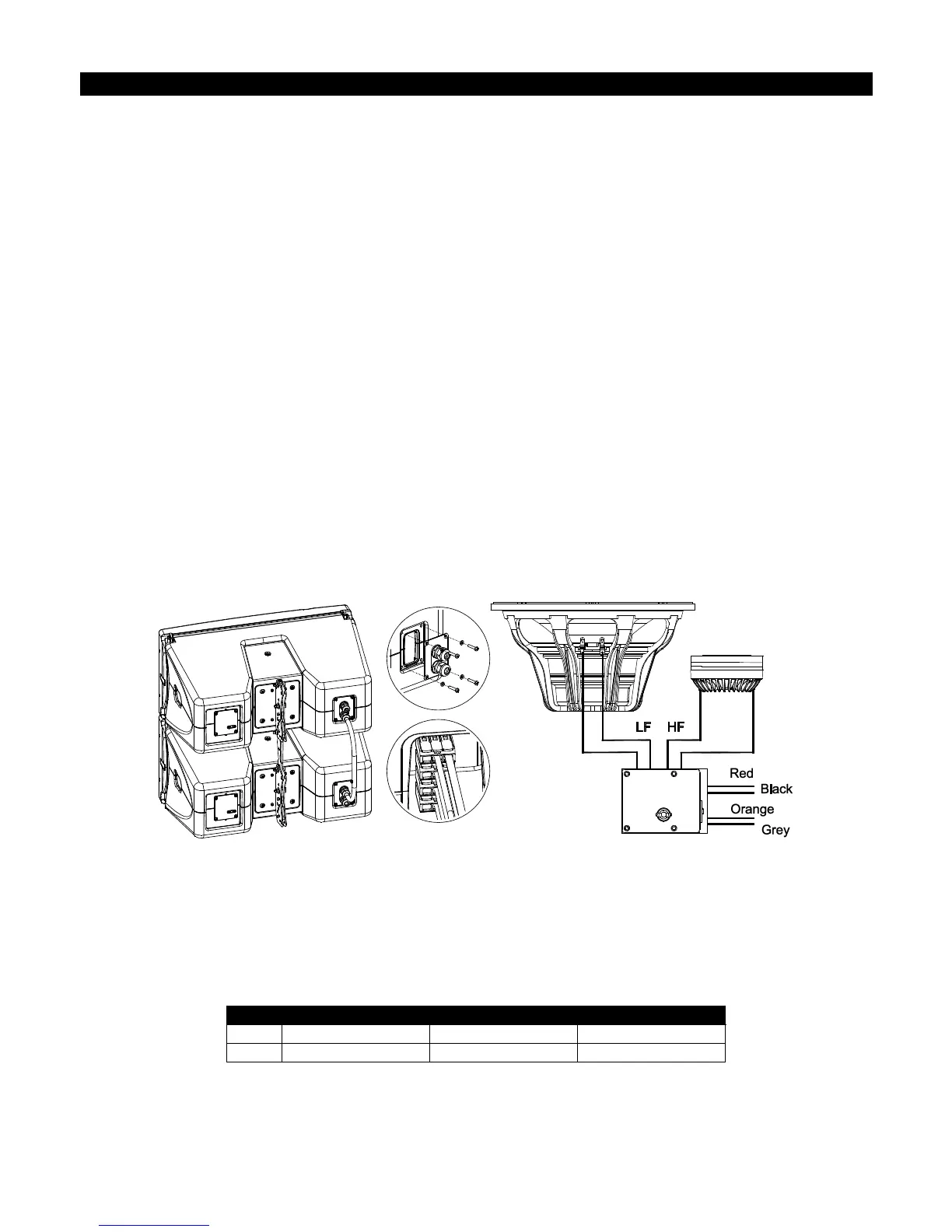

 Connectors:
• GEOM1210-I/1220-I: two cable-glands (clamping range, Ø 10 to 17mm), four fast connectors behind the plate.
- Remove the connecting plate.
- Pass the cables through the cable-gland.
- Connect to the fast connectors:
• ACTIVE
o LF (+) Red / (-) Black.
o HF (+) Orange / (-) Grey
• PASSIVE: (+) Orange / (-) Grey
- Tight the cable-gland and remount the connecting plate.
 Amplification:
• The GEOM12 cabinets MUST be used with a NEXO processor to handle EQ, phase alignment, crossover and
excursion/thermal protection for the system loudspeakers.
• The following table shows the number of GEOM12 usable with each solution.
NXAMP4x1(bridged)
NXAMP4x2
NXAMP4x4
GEOM12
Up to 2 per channel
1 per channels
Up to 3 per channel
Recommended
