Nibe F1245 Series User Manual

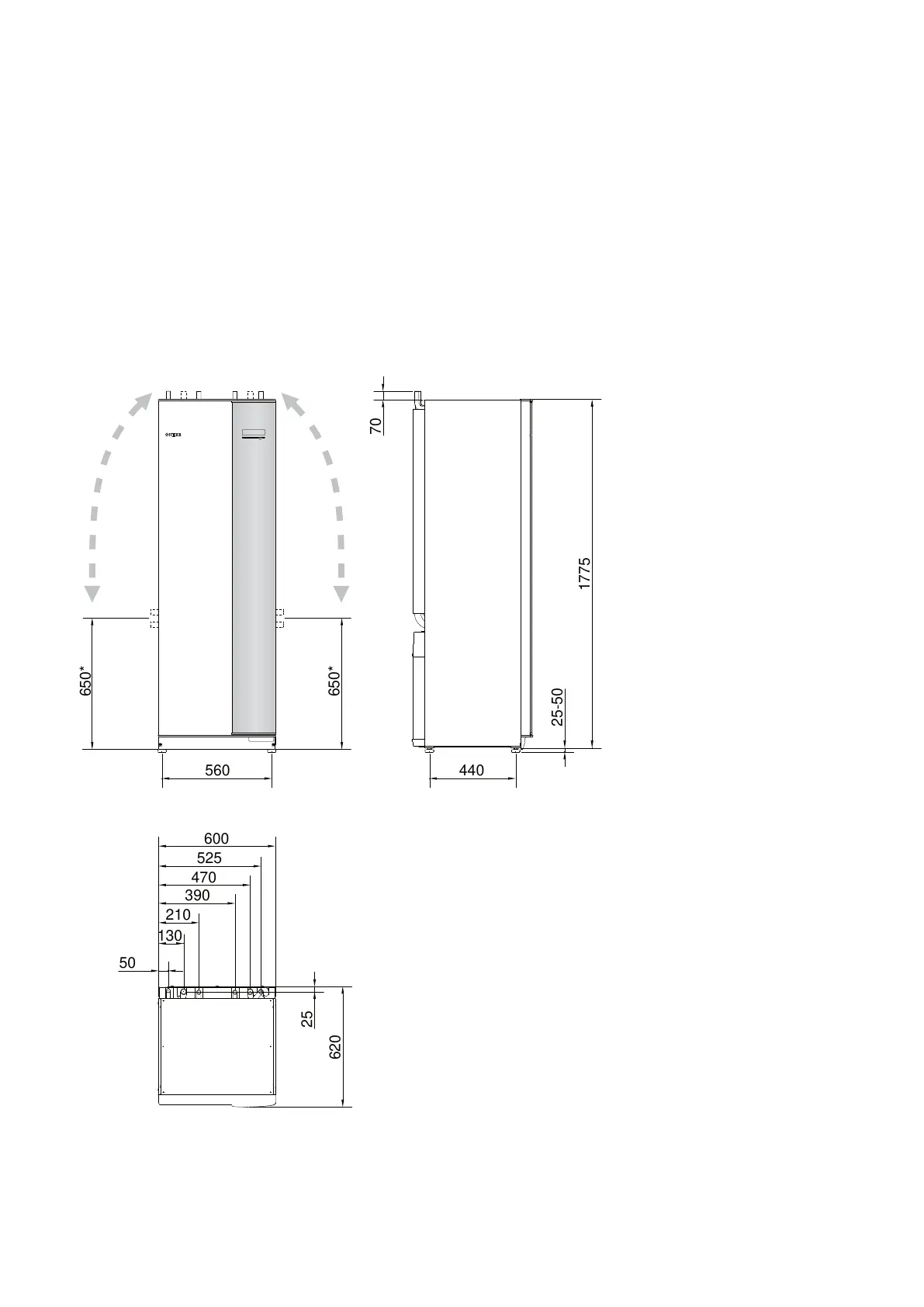

Dimensions and setting-out coordinates
620
600
560 440
70
1775
650*
25-50
25
50
130
210
390
470
525
650*
* This dimension applies at 90° angle on the brine pipes (side connection). The dimension can vary approx. ±100 mm vertically as the brine
pipes consist in part of flexible pipes.
71Chapter 12 | Technical dataNIBE F1245
12 Technical data
