English – 15
English
Example: to adjust the pause time to 40 s.
01. Press the T1 and T2 keys and hold them down for at least 5s
02. Release T1 and T2
03. Press T1 three times
All the parameters can be adjusted as required without any contraindica-
tion; only the adjustment of the “motor force” could require special care:
• Do not use high force values to compensate for the fact that the gate
has anomalous friction points. Excessive force can be detrimental to the
functioning of the safety system or can damage the gate.
• If the “Motor force control” is used in support of the system for impact
force reduction, the force measurement procedure must be performed
after each adjustment, as envisaged by standard EN 12445.
• Weather conditions may affect the movement of the gate. Periodically
you may need to readjust.

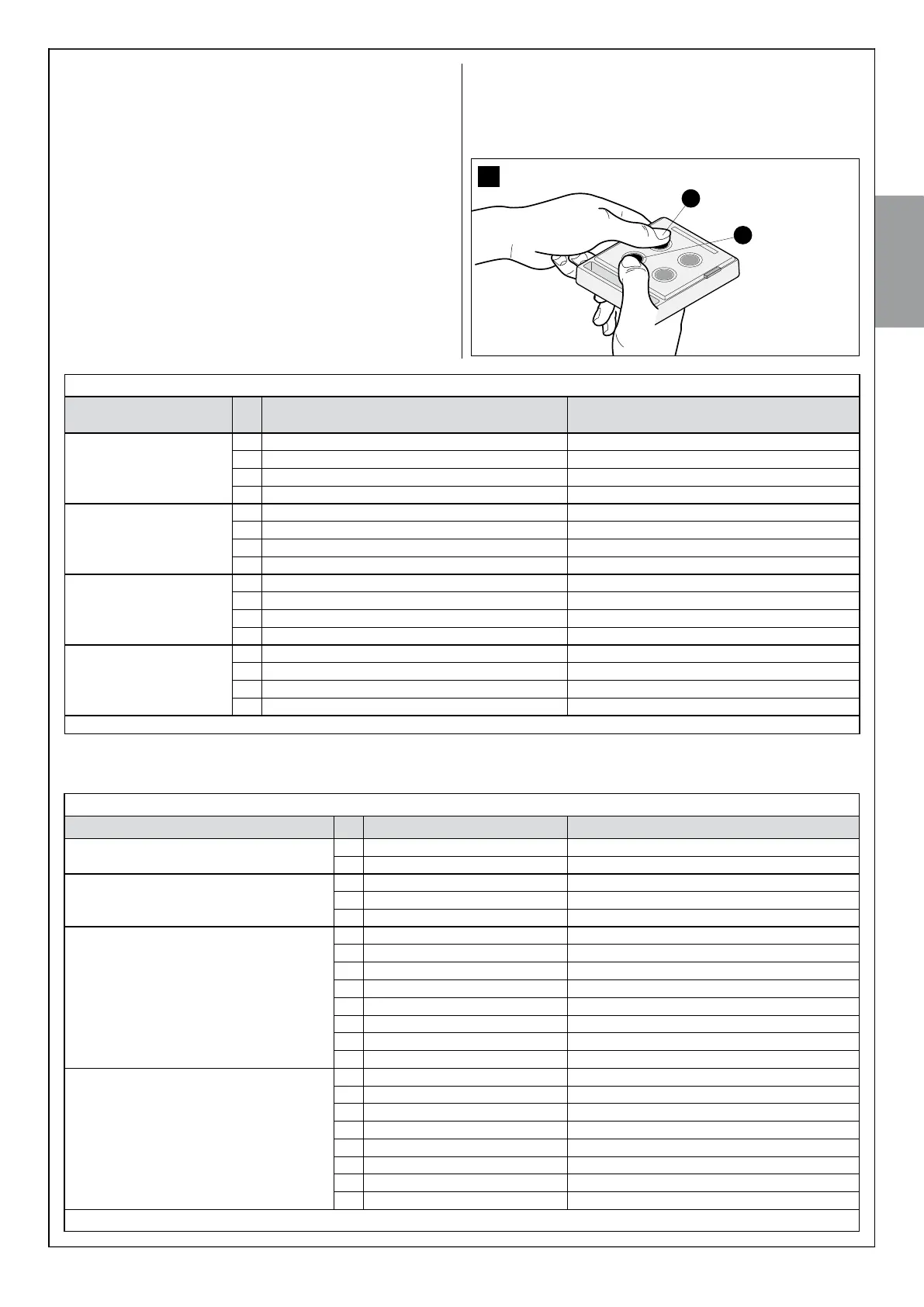

To program the parameters in Table 4:
01. Press T1 and T3 together (fig. 32) on the radio transmitter for at least
5 s.
02. Release the two keys.
03. Within three seconds, carry out the action set out in Table 4 based on
the parameter to change.
TABLE 4
Parameters N° Value Action to perform
SbS input configuration on the control unit 1 Step-by-Step (*) Press T1 once
2 pedestrian opening Press T1 twice
Flash output configuration 1 Flashing light (*) Press T2 once
2 Courtesy light Press T2 twice
3 Gate open indicator Press T2 three times
Motor 1 and Motor 2 discharge in closure 1 No discharge (*) Press T3 once
2 0.1s (Minimum) Press T3 twice
3 0.2s Press T3 three times
4 0.3s Press T3 four times
5 0.4s (Medium) Press T3 five times
6 0.5s Press T3 six times
7 0.6s Press T3 seven times
8 0.7s (Maximum) Press T3 eight times
Motor 1 and Motor 2 discharge in opening 1 No discharge (*) Press T4 once
2 0.1s (Minimum) Press T4 twice
3 0.2s Press T4 three times
4 0.3s Press T4 four times
5 0.4s (Medium) Press T4 five times
6 0.5s Press T4 six times
7 0.6s Press T4 seven times
8 0.7s (Maximum) Press T4 eight times
(*) Original factory value
Example: to adjust the closing discharge of motors 1 and 2 to level 4.
01.
Press the T1 and T3 keys and hold them down for at least 5s
02. Release T1 and T3
03. Press T3 four times
T1
T3
32
TABLE 3
Parameters N° Valore Action: operation to be carried out at step 3 in
the recognition phase
Pause time 1 10s Press T1 once
2 20s (*) Press T1 twice
3 40s Press T1 three times
4 80s Press T1 four times
Pedestrian opening 1 Open 1 leaf halfway Press T2 once
2 Fully open 1 leaf (*) Press T2 twice
3 2 leaves partially opened to 1/4 of the full course Press T2 three times
4 2 leaves partially opened to half of the full course Press T2 four times
Motor force 1 Low Press T3 once
2 Medium low (*) Press T3 twice
3 Medium high Press T3 three times
4 High Press T3 four times
Step-by-Step (SbS) function 1 “Open”, “Stop”, “Close”, “Stop” Press T4 once
2 “Open”, “Stop”, “Close”, “Open” (*) Press T4 twice
3 “Open”, “Close”, “Open”, “Close” Press T4 three times
4 Open only Press T4 four times
(*) Original factory value
