10.3 - DEVICES ADDITION OR REMOVAL
Devices can be added to or removed from an automation which is auto-
mated with MAESTRO200 at any time.
Caution! – Do not add devices before you have checked that they
are fully compatible with MAESTRO200; for details please refer to
the NICE Support Service.
10.3.1 - ECSbus
ECSbus is a system which allows you to connect ECSbus devices using
only two wires which carry both the power supply and the communica-
tion signals. All the devices are connected in parallel on the 2 wires of the
ECSbus itself; each device is individually recognised because a univocal
address is assigned to it during the installation.
The control unit, via the appropriate recognition phase, identifies one by
one all connected devices and is able to detect with extreme safety all
possible faults. For this reason, each time a device connected to ECSbus
is added or removed the control unit must go through the recognition
process; see paragraph 10.3.3 “Recognition of other devices”devices.
10.3.2 - STOP input
STOP is the input that stops movement immediately, (with a brief reverse
of the manoeuvre). Devices with output featuring normally open “NO”
contacts and devices , and with normally closed “NC” contacts, as well
as devices with 8.2kΩ constant resistance output, like sensitive edges,
can be connected to this input.
Multiple devices, even of different types, can be connected to the STOP
input if suitable arrangements are made; see Table 7.
TABLE 7
2
nd
device type:
1° dispositivo tipo:
NO NC 8,2KΩ
NO In parallel (note 2) (note 1) In parallel
NC (note 1) In series (note 3) In series
8,2KΩ In parallel In series (note 4)
Note 1. NO and NC combinations are possible by placing the 2 contacts
in parallel, taking care to place a 8.2kΩ resistance in parallel to the NC
contact (thus enabling the combination of 3 devices: NO, NC and 8.2kΩ).
Note 2. Any number of NO devices can be connected to each other in
parallel.
Note 3. Any number of NC devices can be connected to each other in
series.
Note 4. Only two devices with 8.2kΩ constant resistance output can be
connected in parallel; if needed, multiple devices must be connected “in
cascade” with a single 8.2 kΩ terminal resistance.
Caution! – If the STOP input is used to connect devices with safety
functions, only the devices with 8.2 kΩ constant resistance output
guarantee the failsafe category 3.
As in the case of ECSbus, the control unit recognises the type of device
connected to the STOP input during the self-learning phase; after which
a STOP command is activated whenever a variation with respect to the
learned status is detected.
10.3.3 - Recognition of Other Devices
Normally the recognition of the devices connected to the ECSbus and
the STOP input takes place during the installation stage. However, if new
devices are added or old ones removed, the recognition process can be
gone through again by proceeding in the following way:

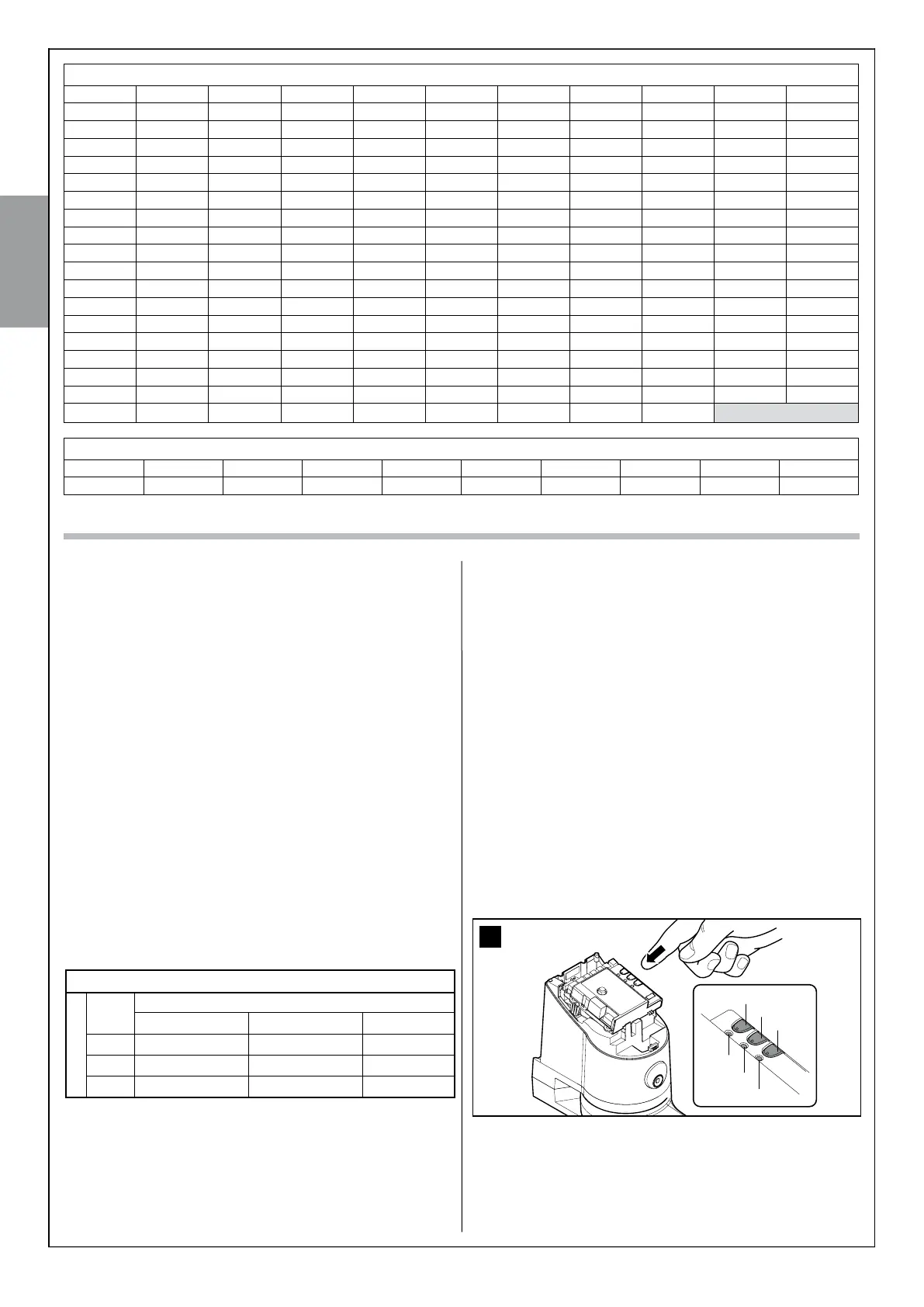

01. On the control unit, press and hold the P2 button (fig. 35), for at
least three seconds, then release the button.
02. Wait a few seconds until the control unit has completed the device
recognition procedure.
03. When the recognition procedure has completed, the P2 led (fig. 35)
will go off. If the P2 led flashes, it means that an error has occurred;
see section 10.5 “Troubleshooting”.
04. After you have added or removed any devices, the automation sys-
tem must be tested again according to the directions contained in
paragraph 8.1 “Testing”.
35
led P1
led P2
led P3
TABLE B - Maximum number of cycles just on accumulator charge
K=70 K=80 K=90 K=100 K=110 K=120 K=130 K=140 K=150 K=160
794 695 618 556 505 463 428 397 371 348
TABLE A - Maximum number of cycles per day
To K=70 K=80 K=90 K=100 K=110 K=120 K=130 K=140 K=150 K=160
9500 131 115 102 92 84 77 71 66 61 58
9000 124 109 97 87 79 73 67 62 58 54
8500 117 103 91 82 75 68 63 59 55 51
8000 110 96 86 77 70 64 59 55 51 48
7500 103 90 80 72 65 60 55 51 48 45
7000 96 84 74 67 61 56 52 48 45 42
6500 89 78 69 62 56 52 48 44 41 39
6000 81 71 63 57 52 48 44 41 38 36
5500 74 65 58 52 47 43 40 37 35 33
5000 67 59 52 47 43 39 36 34 31 29
4500 60 53 47 42 38 35 32 30 28 26
4000 53 46 41 37 34 31 28 26 25 23
3500 46 40 36 32 29 27 25 23 21 20
3000 39 34 30 27 25 23 21 19 18 17
2500 31 28 24 22 20 18 17 16 15 14
2000 24 21 19 17 15 14 13 12 11 11
1500 17 15 13 12 11 10 9 9 8 8
1000 10 9 8 7 6 6 5 5
Usage not recommended area
