26 – ENGLISH
7.4.3.5 PROCEDURE E - Deleting ALL memorised
transmitters
To perform this procedure:
1. on the control unit: press and hold the "RADIO” button
2. after roughly 4 seconds, the "R" LED will light up steady
(continue holding down the "RADIO” button)
3. after roughly 4 seconds, the "R" LED will turn off (continue
holding down the "RADIO” button)
4. when the "R" LED starts ashing, count 2 ashes and pre-
pare to release the button precisely during the 3rd ash that
follows
5. during the deletion process, the "R" LED will ash quickly
6. the "R" LED will emit 5 long ashes to signal that the deletion
has been completed correctly.

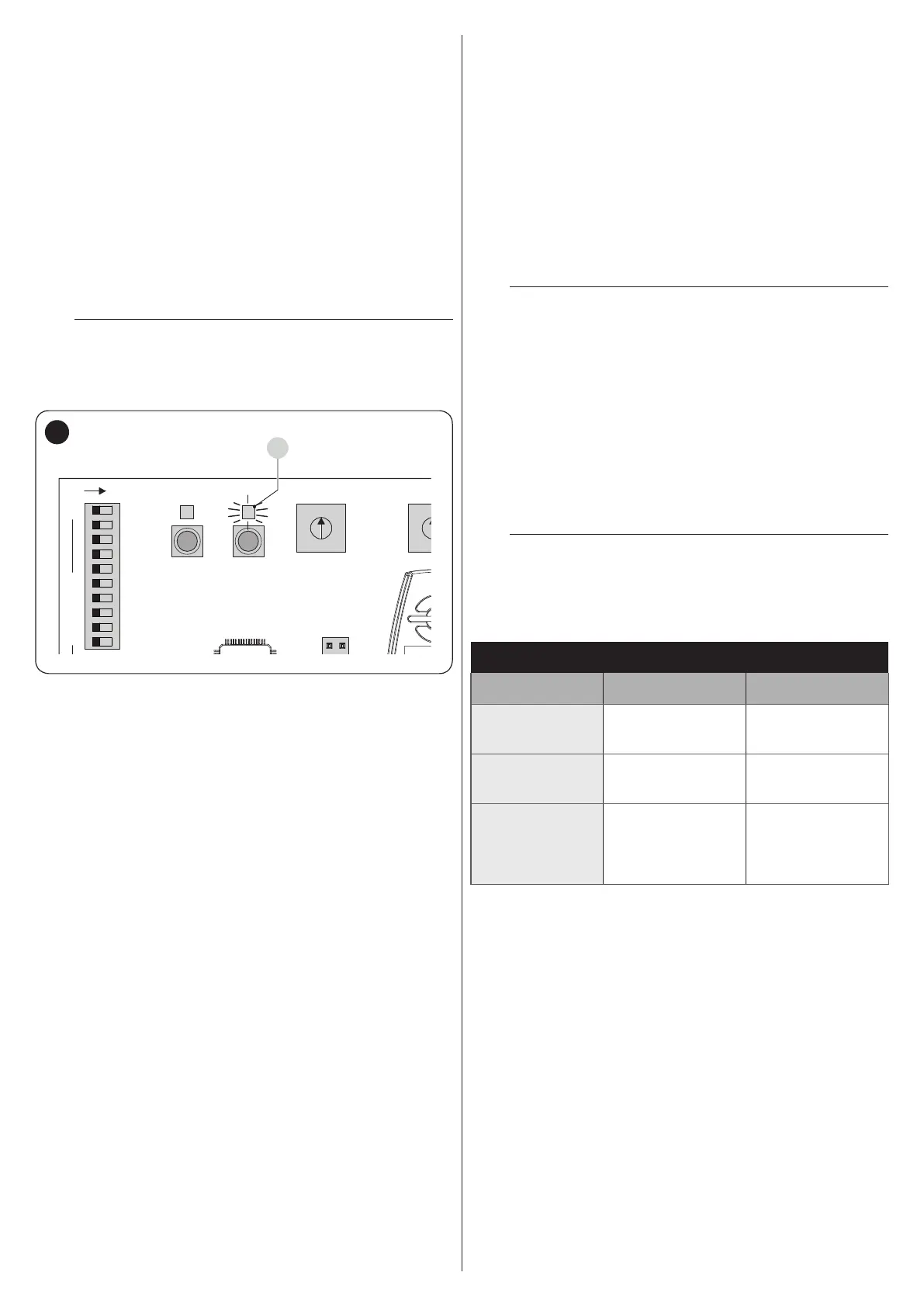

7.5 LOCKING AND UNLOCKING THE MEMORY
a
WARNING! - This procedure locks the memory, pre-
venting the execution of Procedures A, B, C and D
described in the “Transmitter memorisation and de-
letion procedures“ paragraph
OK RON
- Pause +
PROG RADIO
IBT4N
SWITCH 1
R
44
Procedure for locking/unlocking the memory:
1. disconnect the control unit from the power supply
2. press and hold the "RADIO” button
3. power the control unit again (by pressing down the "RADIO”
button)
4. after 5 seconds the "R" LED will emit 2 slow ashes
5. release the "RADIO" button
6. (within 5 seconds) repeatedly press the "RADIO” button to
select one of the following options:
– disabling of the memory lock function = LED off
– enabling of the memory lock function = LED on
7. ve seconds after last pressing the button, the "R" LED will
emit 2 slow ashes to signal the end of the procedure.
7.6 SPECIAL FUNCTIONS
7.6.1 “Move anyway” function
This function can be used to operate the automation even one or
more some safety devices fail to work properly or are out of order.
The automation can be controlled in “hold-to-run” mode by pro-
ceeding as follows:
1. send a command to move the gate, using a transmitter or
key selector, etc. If everything works properly, the boom will
move normally, otherwise proceed with point 2
2. within 3 seconds, press the control again and hold it down
3. after roughly 2 seconds, the boom gate will complete the re-
quested manoeuvre in “Hold-to-run” mode, in other words,
it will continue to move so long as the control is held down.
l
When the safety devices fail to work, the "OK" LED
on the control unit will ash a few times to signal
the type of problem. To verify the type of anomaly,
consult the "Signals on the control unit" chapter.
7.6.2 “Maintenance notice” function
This function warns the user when the automation requires a main-
tenance check.
The “Maintenance notice” parameter can be adjusted using the
Oview programmer.
The maintenance request signal is given through the Flash warning
light or by the maintenance indicator, depending on the type of
programming chosen.
l
The OGI output and the congured courtesy light
give the signals indicated in "Table 9" based on the
number of manoeuvres completed with respect to
the set limit.
Table 9
MAINTENANCE NOTICE THROUGH FLASH AND MAINTENANCE
INDICATOR
Number of
manoeuvres
Signal on “Flash”
Maintenance indicator
signal
Below 80% of the
limit
Normal (0.5 sec on,
0.5 sec off)
Lit for 2 seconds
at the start of the
opening manoeuvre
Between 81% and
100% of the limit
Remains lit for 2
seconds at the start
of the manoeuvre
Flashes for the
entire duration of the
manoeuvre
Exceeding 100%
of the limit
Remains lit for 2
seconds at the
start and end of the
manoeuvre then
carries on normally
Flashes always
7.6.3 Verifying the number of manoeuvres completed
The number of manoeuvres completed can only be checked
through the Oview programmer.
7.6.4 Manoeuvre counter resetting
Once maintenance has been performed on the system, the ma-
noeuvre counter must be reset.
Resetting can only be done through the Oview programmer.
