ENGLISH – 5
Table 2
PRODUCT DURABILITY
Severity index
WIDE S WIDE M WIDE L
Jointed boom / 15% /
Presence of dust and
sand
10% 10% 10%
Presence of salinity 10% 10% 10%
Aluminium skirt 5% 5% 5%
Mobile support / 15% 15%
Ambient temperature
above 40°C or below 0°C
5% 5% 5%
Manoeuvre interrupted
by photocell
10% 15% 15%
Manoeuvre interrupted
by Stop
10% 15% 15%
Speed setting (trimmer
FL) above 50%
10% 10% 15%
Force setting (trimmer I)
above 50%
5% 10% 10%
100 20 30 40 50 60 70 80 90
100
Durability in cycles (No.)
Severity index (%)
100.000
200.000
300.000
400.000
2

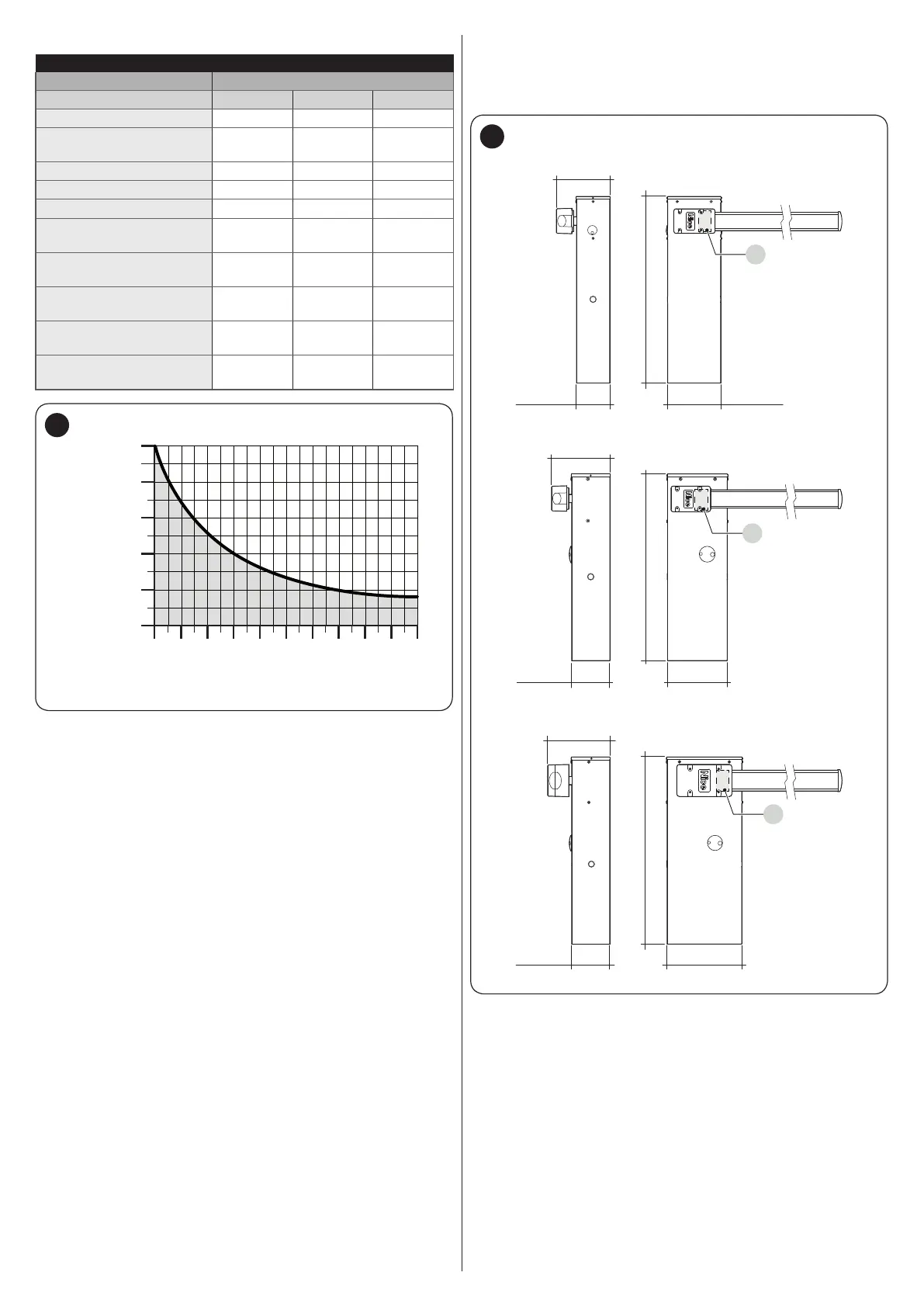

3.3 PRODUCT IDENTIFICATION AND OVERALL
DIMENSIONS
The overall dimensions and the label (A), which allows for identify-
ing the product, are shown in "Figure 3".
WIDE M
WIDE L
338 mm
205 mm 420 mm
1030 mm
314 mm
320 mm205 mm
1000 mm
280 mm
286 mm
178 mm
1000 mm
A
A
A
3
