3 Installation and Connection
This chapter explains how to install and connect DS-Ri2/DS-Qi2 to a microscope system.
3.1
3.1 Check First
3.1.1
3.1.1 Overall Connection
DC IN 12V
POWER
EXT.I/O
USB(D)

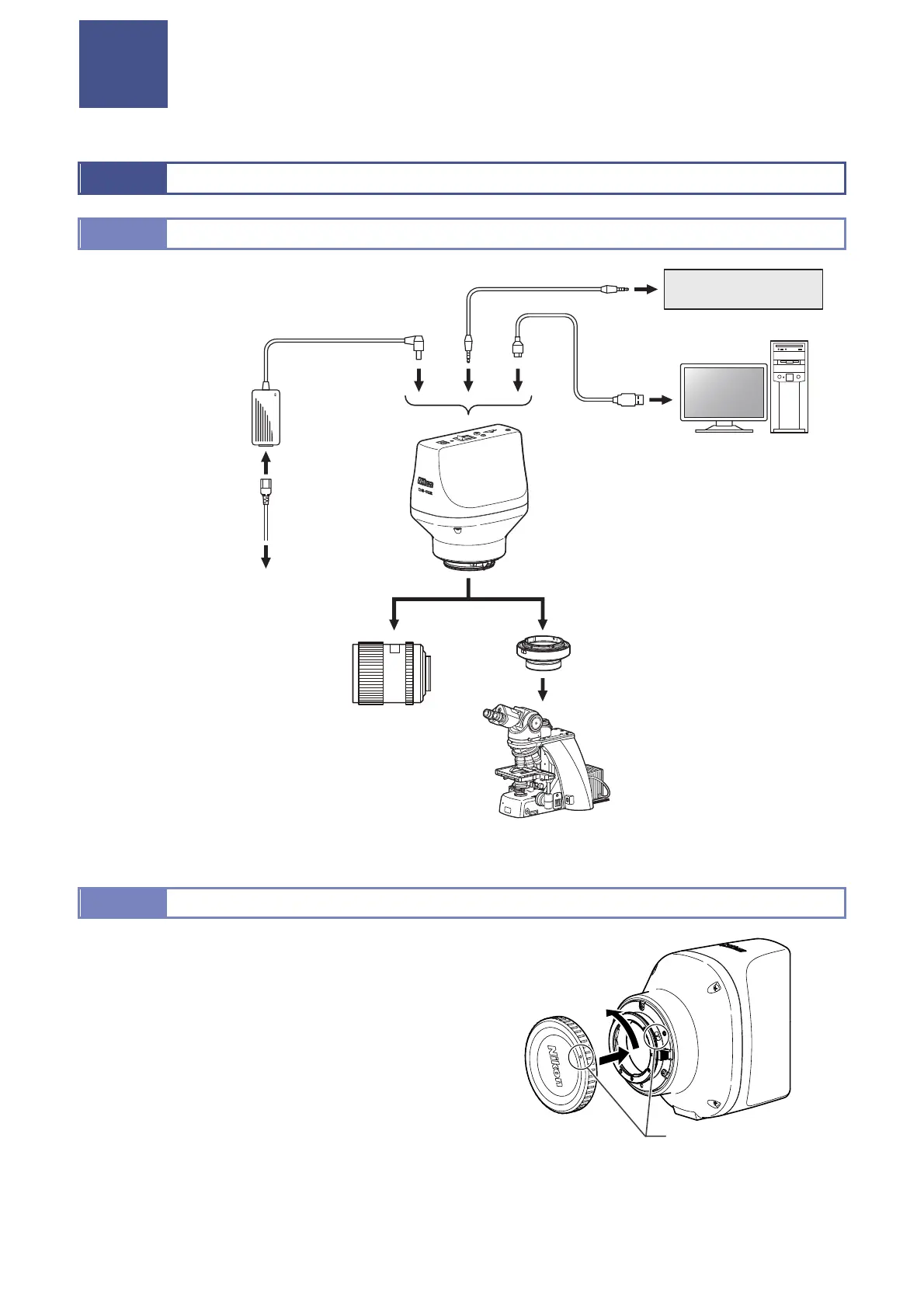

Illustration of overall connection
3.1.2
3.1.2 Attaching / Removing the F-mount Cap
The F-mount cap or a dustproof cover is supplied with the
product. Be sure to put it to the F-mount to protect dust from
entering the product interior when any adapters are attached
for connecting this product with an optical device.
 Attaching the F-mount cap
Align the mark on the cap with the mark on the F-mount and
turn the cap counterclockwise to attach the cap to the
F-mount.
 Removing the F-mount cap
Turn the F-mount cap clockwise to remove it. You can
remove it without pressing the lens releasing button.
Attaching the F-mount cap
External device
PC
AC adapte
r
Power cord
DS-Ri2
/
DS-Qi2
To AC socket
Optical lens (F mount)
F-mount adapter
(Select an adapter model
suitable for your microscope)
Microscope
(A camera port, tube, or
intermediate tube may be
required)
A
lignment marks
A
lign the alignment marks
and turn the cap
counterclockwise to
attach it.
