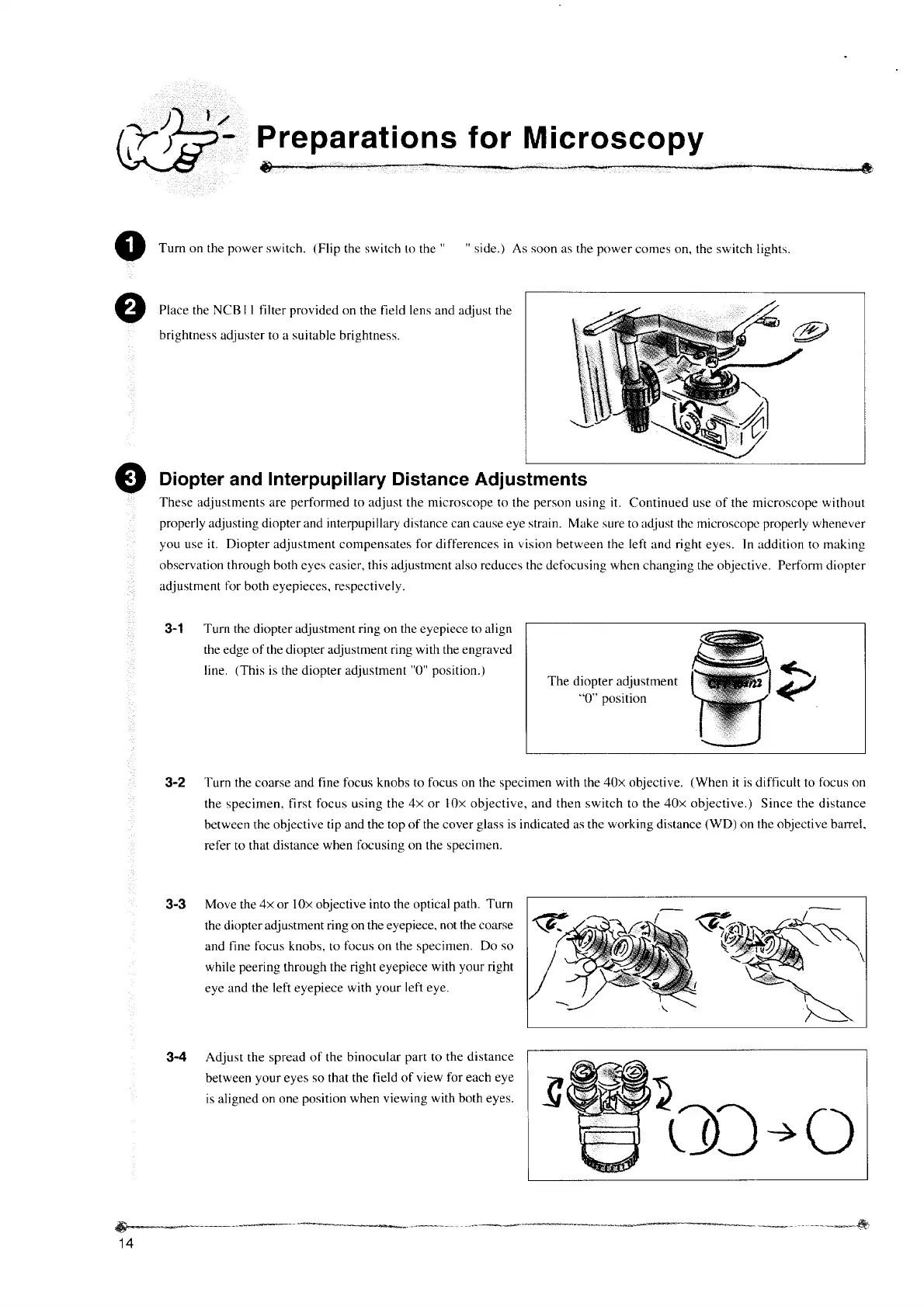

Preparations
for
Microscopy
>
σα,
Q
Turn
on
the
power
switch.
(Flip
the
switch
to
the
”
"
side.)
As
soon
as
the
power
comes
on,
the
switch
lights.
O
Place
the
NCB11
filter
provided
on
the
field
lens
and
adjust
the
brightness
adjuster
to
a
suitable
brightness.
©
Diopter
and
Interpupillary
Distance
Adjustments
These
adjustments
are
performed
to
adjust
the
microscope
to
the
person
using
it.
Continued
use
of
the
microscope
without
properly
adjusting
diopter
and
interpupillary
distance
can
cause
eye
strain.
Make
sure
to
adjust
the
microscope
properly
whenever
you
use
it.
Diopter
adjustment
compensates
for
differences
in
vision
between
the
left
and
right
eyes.
In
addition
to
making
observation
through
both
eyes
easier,
this
adjustment
also
reduces
the
defocusing
when
changing
the
objective.
Perform
diopter
adjustment
for
both
eyepieces,
respectively.
3-1
=
Turn
the
diopter
adjustment
ring
on
the
eyepiece
to
align
the
edge
of
the
diopter
adjustment
ring
with
the
engraved
line.
(This
is
the
diopter
adjustment
"0"
position.)
.
.
The
diopter
adjustment
“O”
position
3-2
Turn
the
coarse
and
fine
focus
knobs
to
focus
on
the
specimen
with
the
40x
objective.
(When
it
is
difficult
to
focus
on
the
specimen,
first
focus
using
the
4x
or
10x
objective,
and
then
switch
to
the
40x
objective.) Since
the
distance
between
the
objective
tip
and
the
top
of
the
cover
glass
is
indicated
as
the
working
distance
(WD)
on
the
objective
barrel,
refer
to
that
distance
when
focusing
on
the
specimen.
3-3
Move
the
4x
or
10x
objective
into
the
optical
path.
Turn
the
diopter
adjustment
ring
on
the
eyepiece,
not
the
coarse
and
fine
focus
knobs,
to
focus
on
the
specimen.
Do
so
while
peering
through
the
right
eyepiece
with
your
right
eye
and
the
left
eyepiece
with
your
left
eye.
3-4
Adjust
the
spread
of
the
binocular
part
to
the
distance
between
your
eyes
so
that
the
field
of
view
for
each
eye
is
aligned
on
one
position
when
viewing
with
both
eyes.
