Nikon Eclipse E400 User Manual

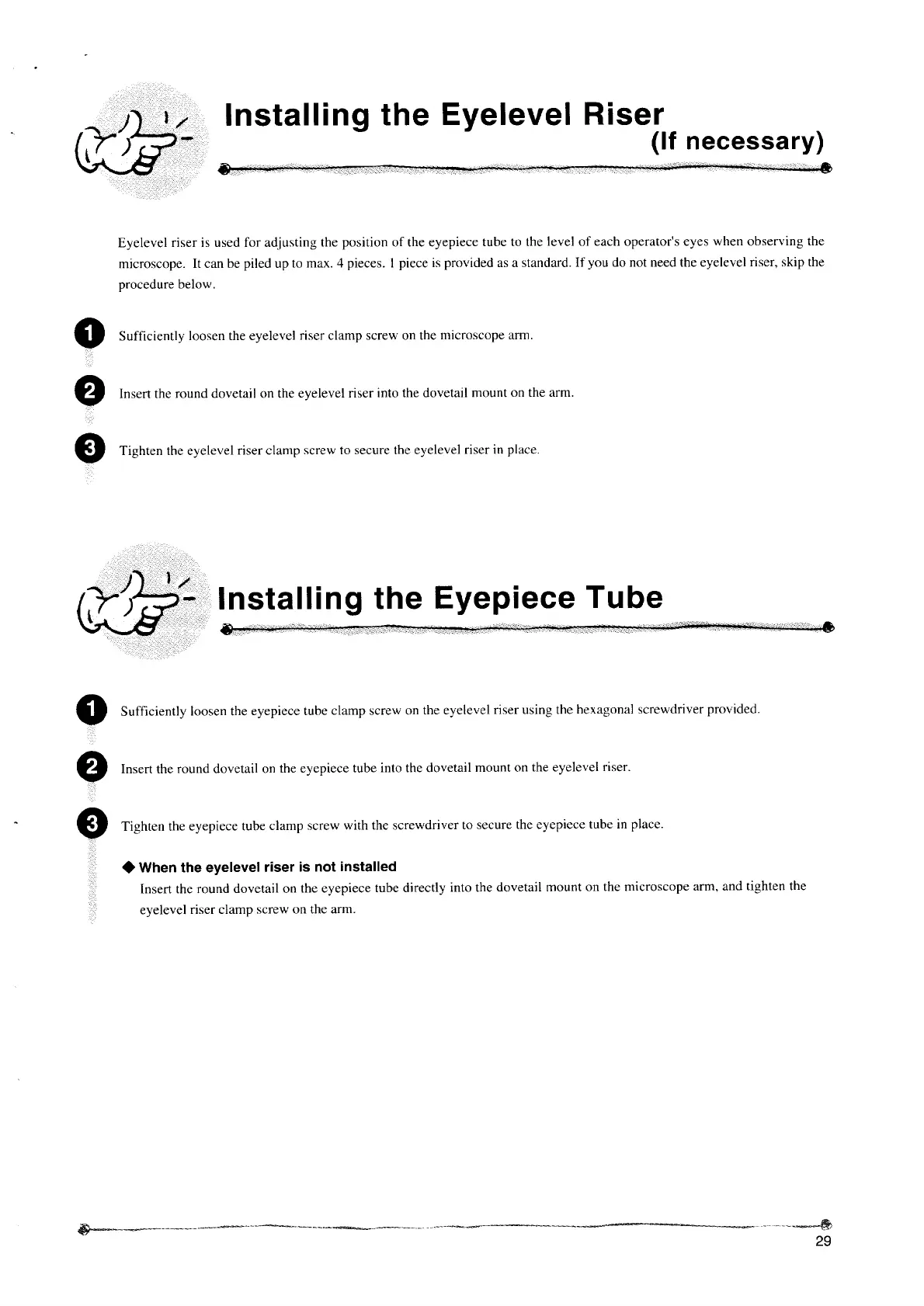

) Installing the Eyelevel Riser
E И (If necessary)
Eyelevel riser is used for adjusting the position of the eyepiece tube to the level of each operator's eyes when observing the
microscope. It can be piled up to max. 4 pieces. | piece is provided as a standard. If you do not need the eyelevel riser, skip the
procedure below.
Sufficiently loosen the eyelevel riser clamp screw on the microscope arm.
Insert the round dovetail on the eyelevel riser into the dovetai! mount on the arm.
Tighten the eyelevel riser clamp screw to secure the eyelevel riser in place.
0006
-
Installing
the
Eyepiece
Tube
Sufficiently loosen the eyepiece tube clamp screw on the eyelevel riser using the hexagonal screwdriver provided.
Insert the round dovetail on the eyepiece tube into the dovetail mount on the eyelevel riser.
o
606
Tighten the eyepiece tube clamp screw with the screwdriver to secure the eyepiece tube in place.
@ When the eyelevei riser is not installed
Insert
the
round
dovetail
on
the
eyepiece
tube
directly
into
the
dovetail
mount
on
the
microscope
arm,
and
tighten
the
eyelevel riser clamp screw on the arm.
Geren ーー

Nikon Eclipse E400 Specifications

General

Brand	Nikon
Model	Eclipse E400
Category	Microscope
Language	English
