Nikon Eclipse Series User Manual

Chapter 1 Components of the System
2

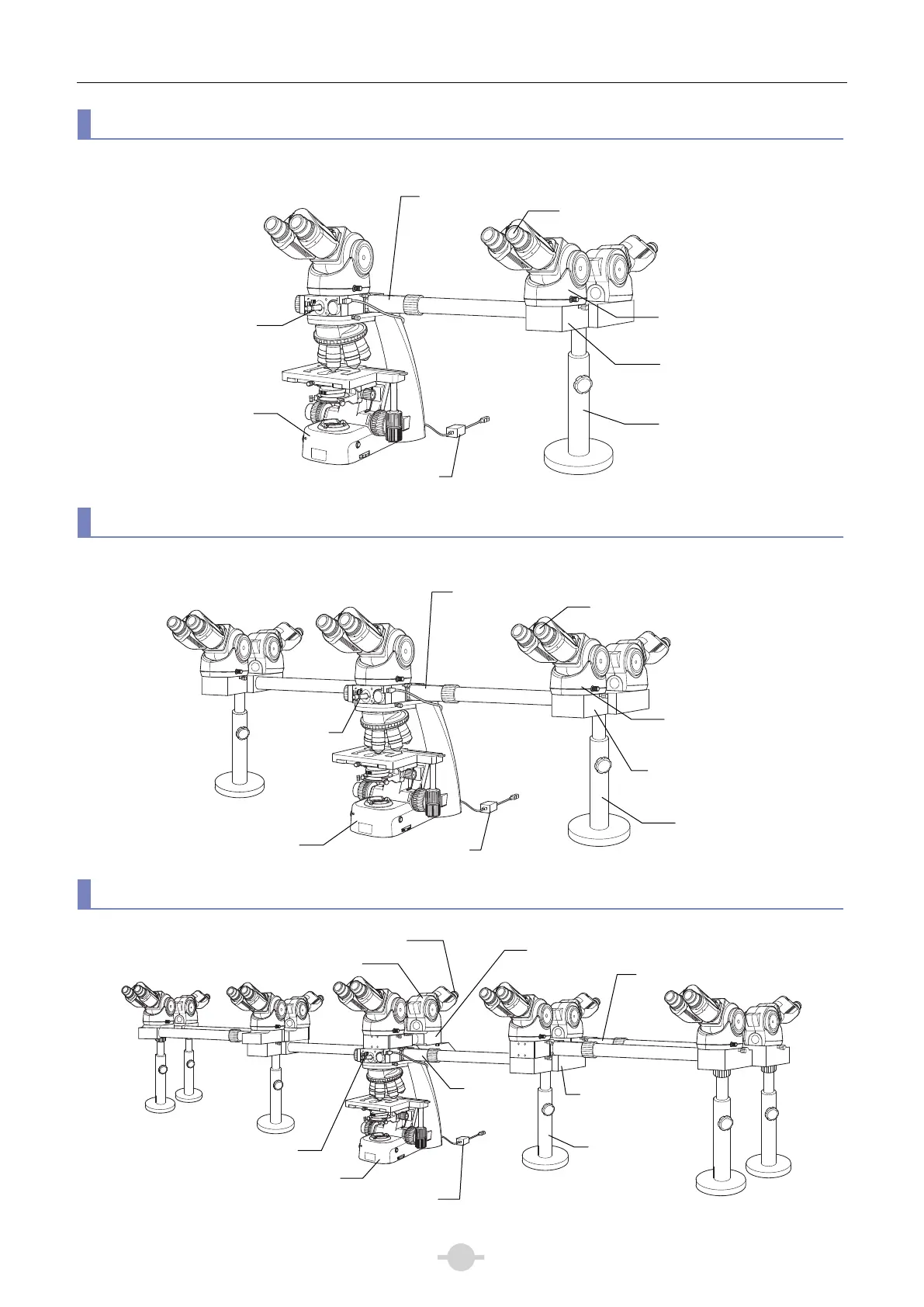

Triple-viewing
This model allows two secondary observers to be positioned face-to-face on either the left or right side of the main
observer during the observation.
Multi-viewing for 5 persons
This model allows two secondary observers to be positioned face-to-face on both sides of the main observer during
observation.
Multi-viewing for 10 persons
Eyepieces for secondary observer (X2 sets)
Eyepiece tube for secondary
observer (X2)
MTH main splitter
Microscope
AC adapte
r
Pointe
r
Support stand
MTH relay unit
Eyepieces for secondary observer (X9 sets)
Eyepiece tube for secondary observer (X9)
Teaching head S-S (X4)
Microscope
AC adapte
r
Pointe
r
Support stand (X6)
MTH relay unit (X2)
Teaching head F-F
Eyepieces for secondary observer (X4 sets)
Eyepiece tube for secondary
observer (X4)
MTH main splitter
Microscope
AC adapte
r
Pointe
r
Support stand (X2)
MTH relay unit (X2)
MTH main
splitter

Nikon Eclipse Series Specifications

General

Objectives	Plan Achromat, Plan Fluor, Plan Apochromat
Objective Lenses	4x, 10x, 20x, 40x, 100x
Magnification Range	40x to 1000x
Eyepiece	10x
Illumination	LED, Halogen
Observation Methods	Brightfield, Darkfield, Phase Contrast, Fluorescence
Focusing	Coarse and fine focusing
Stage	Mechanical stage
Condenser	Abbe condenser
Interpupillary Distance Adjustment	48-75mm
Diopter Adjustment	Typically +/- 5 diopters
Power Supply	100-240V AC
Nosepiece	Revolving nosepiece, typically with 5-7 objective positions
