Assembly
1

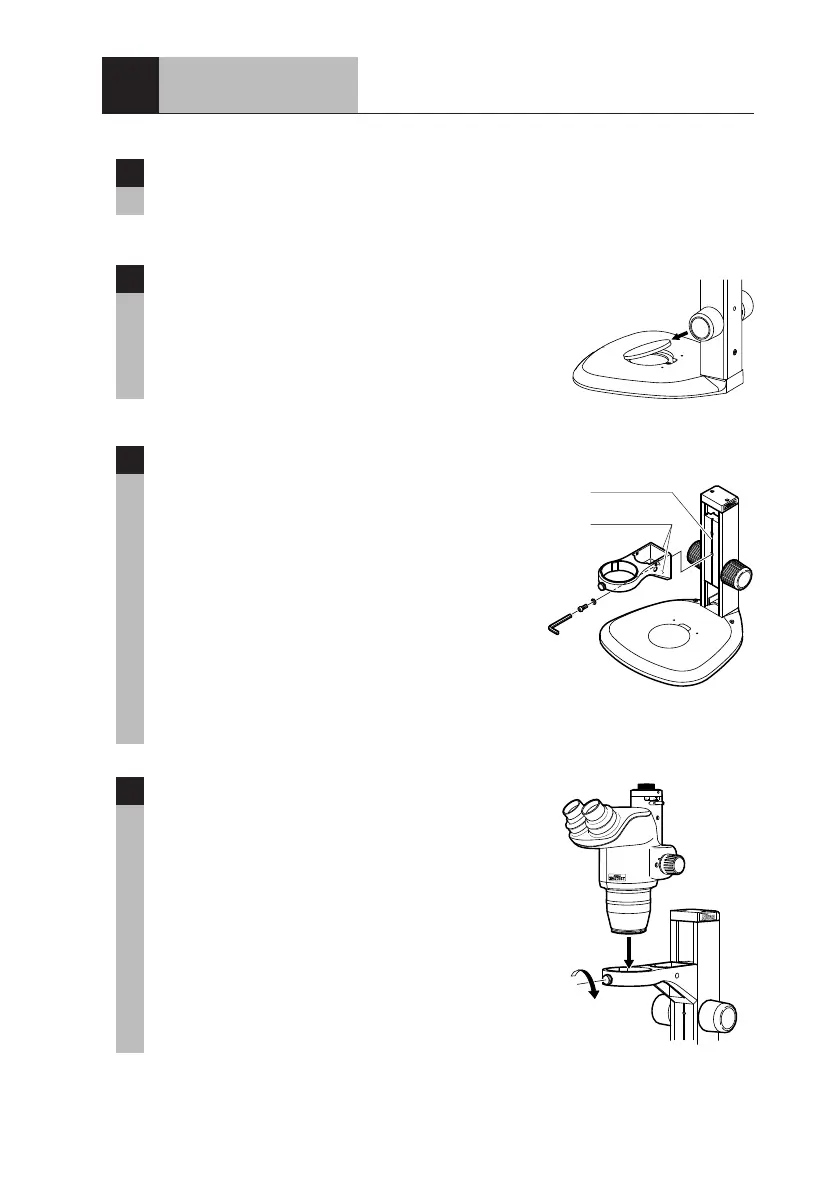

Place the stand on the level surface.
2
Mount the stage plate.
Press the stage plate into the stand base while
pushing it against the rim in the direction
shown by the arrow in the illustration.
3
The stand arm can be lowered.
(For not lowering the arm, jump to
step 4.)
Use the hexagonal wrench (large, supplied
with the focusing stand) to loosen the arm
fixing screw. Reattach the arm using the
screw hole at the lower side of the vertical
slider. The arm will become 55 mm lower
than its original position. Before tightening
the screw, make sure that the two pins on the
arm are inserted into the grooves in the
vertical slider.
4
Mount the zooming body.
Lightly tighten the zooming body clamp
screw to hold the zooming body on the arm.
Note) Do not overly tighten the zooming body
clamp screw since it may cause
damage to the product.
Groove
Pin
