16
IV
Using Accessories
1
Reticles
Your reticles can be attached to the eyepiece.
Remove the field ring (or lens room of the
20X and 30X) from the eyepiece, then attach
the reticle with its pattern surface facing down
to the eyepiece, and reattach the field ring (or
lens room).
Refer to Table 1 (p.23) for the size of
the reticle which can be attached.
Note) The 20X and 30X eyepieces adopt the
internal focusing system, and the
primary image has the magnification.
Use the reticle with 1.3X pattern for
20X eyepiece, and with 1.4X pattern
for 30X eyepiece.
An optional reticle with cross hairs or
scaled cross hairs is available for 10X
eyepiece.

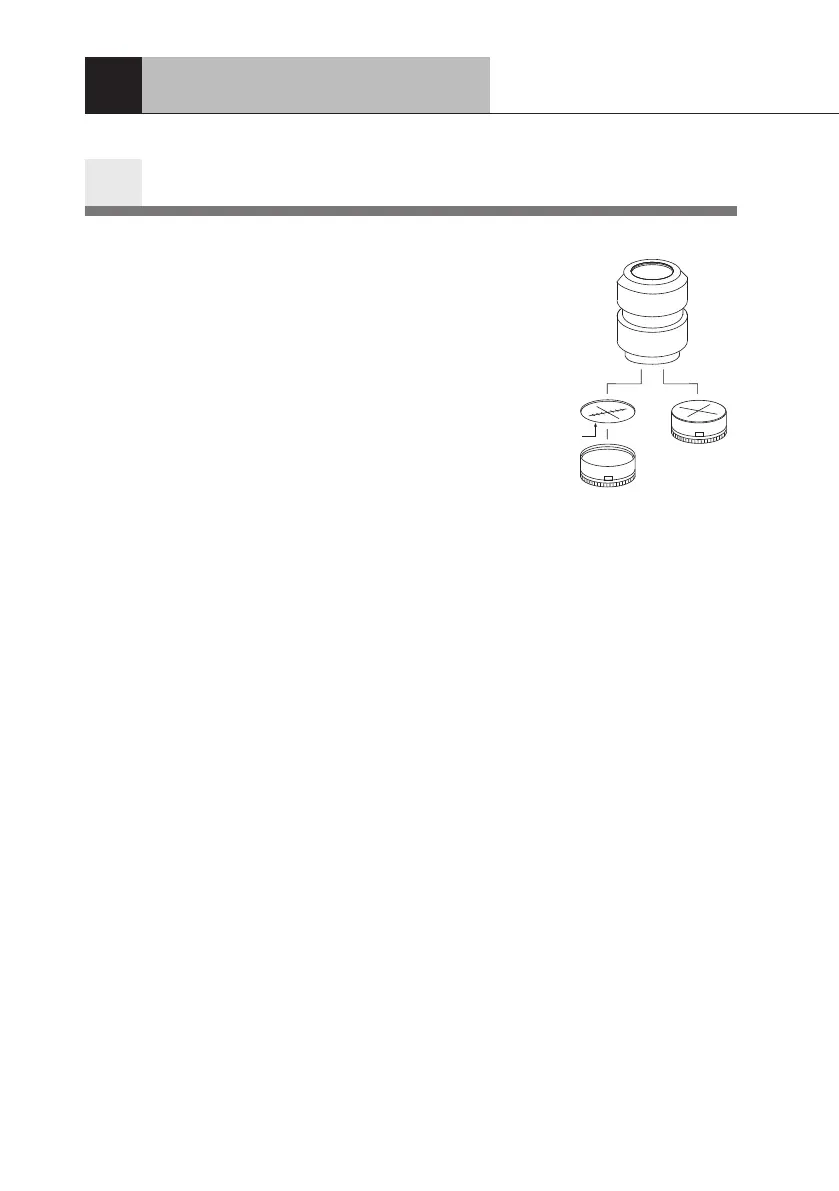

Optional
reticle
Reticle
Pattern
surface
Field ring
