14 - FORM NO. 56043088 / Advenger
™
/ BR 600S, 650S, 700S, 800S
STEERING SYSTEM
STEERING COLUMN ASSEMBLY SHROUD REMOVAL
Upper Column
1 See Figure 1. Remove the center Wheel Adapter (A) from the steering wheel. Pry it off using a fl at bladed screwdriver.
2 Remove the steering shaft retainer Hex Nut (B) (use a 3/4” socket wrench) and the two Washers (C & D). Next pull straight back on the steering
wheel to remove it from the metal Wheel Adapter (E).
3 Pull off the keyed metal wheel adapter from the steering shaft by using a two-jaw gear puller. With the wheel adapter off the loose Plastic Trim
Cup (F) can now be removed.
4 Remove the (4) Screws (G) securing the Column Shroud (H) and pull it off from the Column Base (I).
Lower Column
1 Tilt the steering wheel column as far back (close to the seat) as possible.
2 Remove the tilt column release Knob (J) (threaded) from its shaft.
3 Remove the (4) Screws (K) securing the Lower Shroud (L) and next pull the shroud far enough away from the column base to clear the tilt
release shaft through the shroud opening. Note: This will take some effort in prying the fl exible plastic shroud around the movable tilt shaft.
4 Grip the shroud and pull up to completely release it from the steering column base and the foot brake assembly.

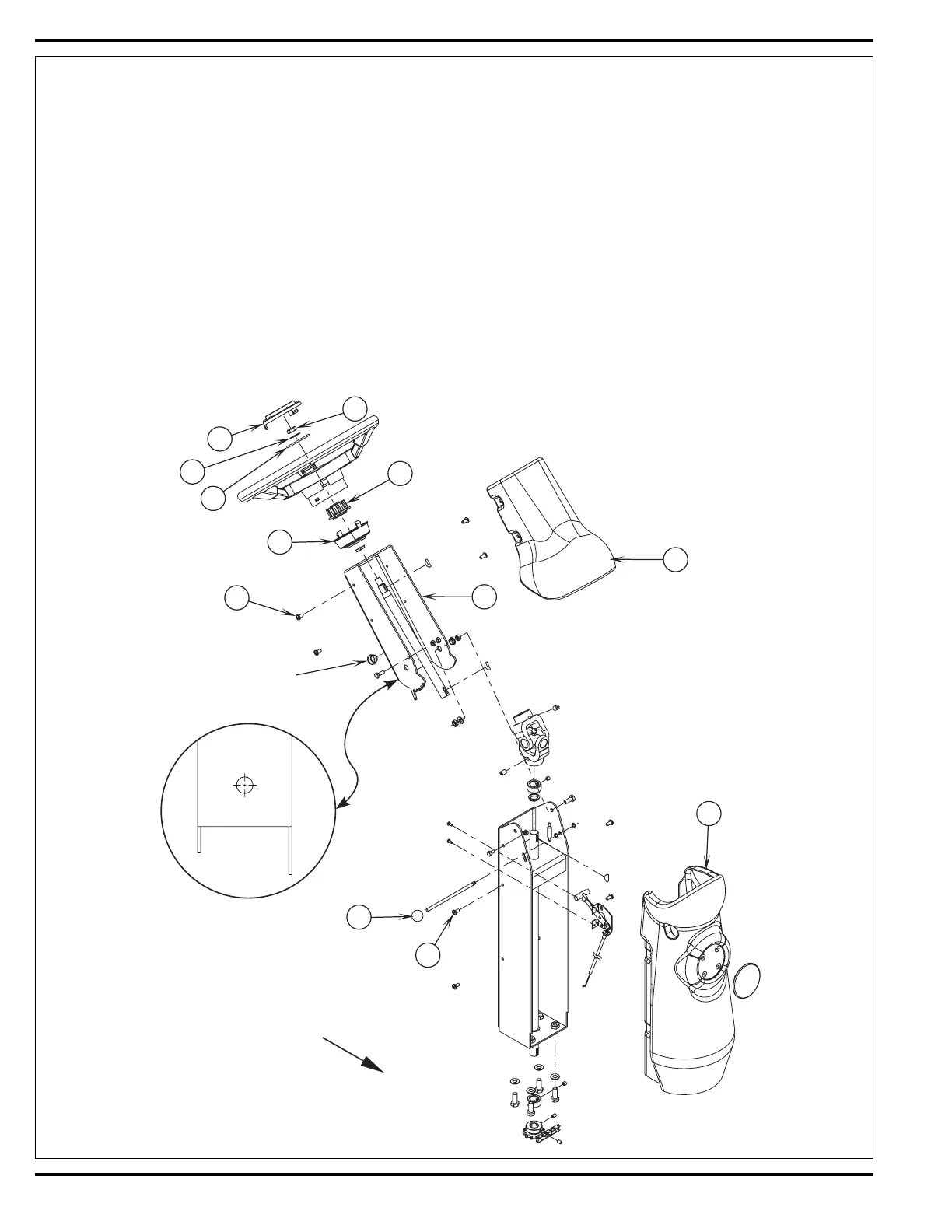

FIGURE 1
FRONT
J
B
D
K
G
C
E
F
A
I
L
H
View from back
side of panel (I)
Remove plug
to access/grease
universal joint
