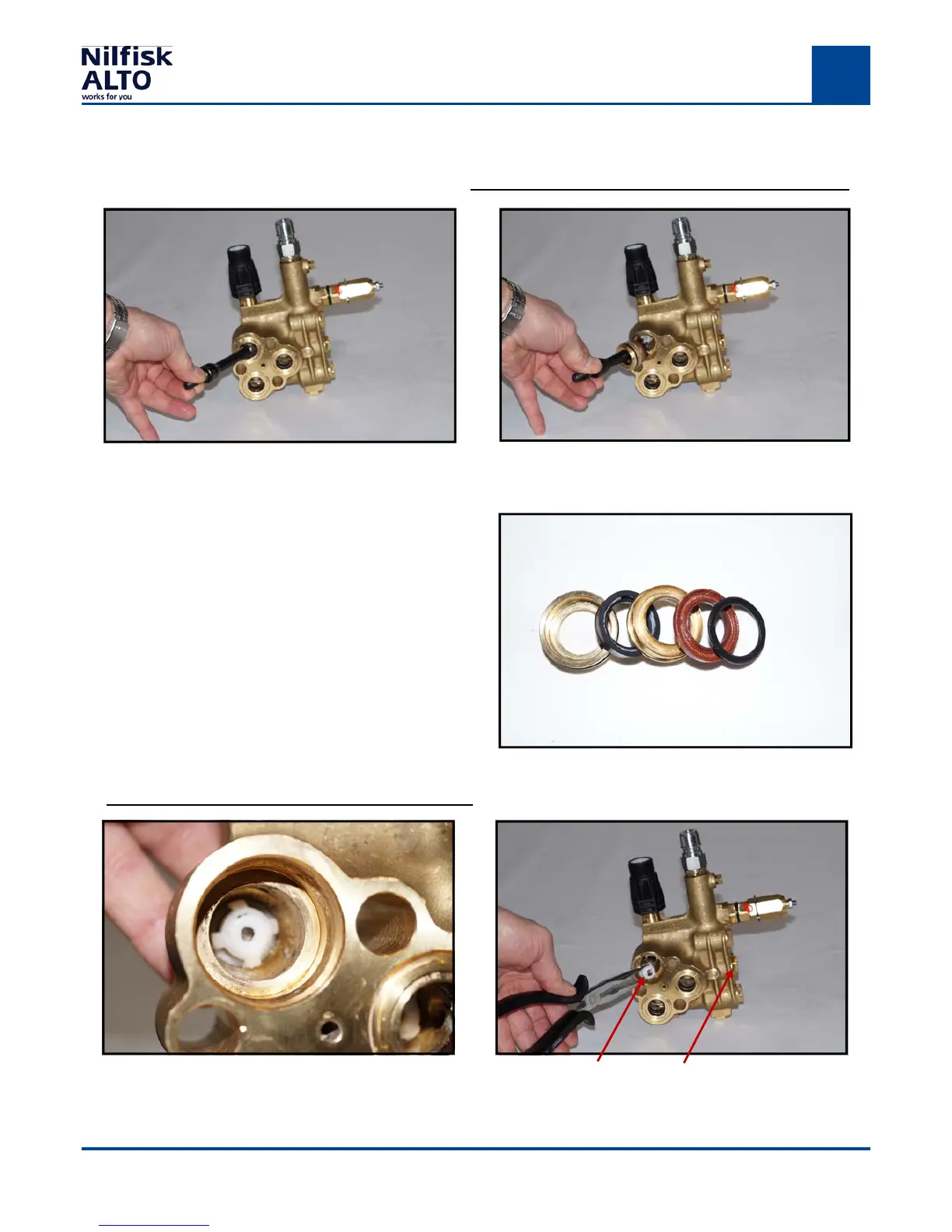

Suction valve—positioned under the water seals Pull out the suction and pressure valves with a pair
of pliers. If the valve seat stays in the cylinder head,
it can be pulled out with a Bahco puller
Pressure and Suction valves disassembling
Pull out the water seals and trust collars.
(Use e.g. a Bahco Puller type 4521 N-F.
Bahco puller (not shown) for puller is type
4524 G)
Trust colar and water seals pulled out with
puller.
Trust collar and water seals.
Cylinder head and water seals disassembling
MC 4M
To Next Page
