F
SM MC 3C_ MC 4M Ver.1.0_March 2015
Service / Repair
52

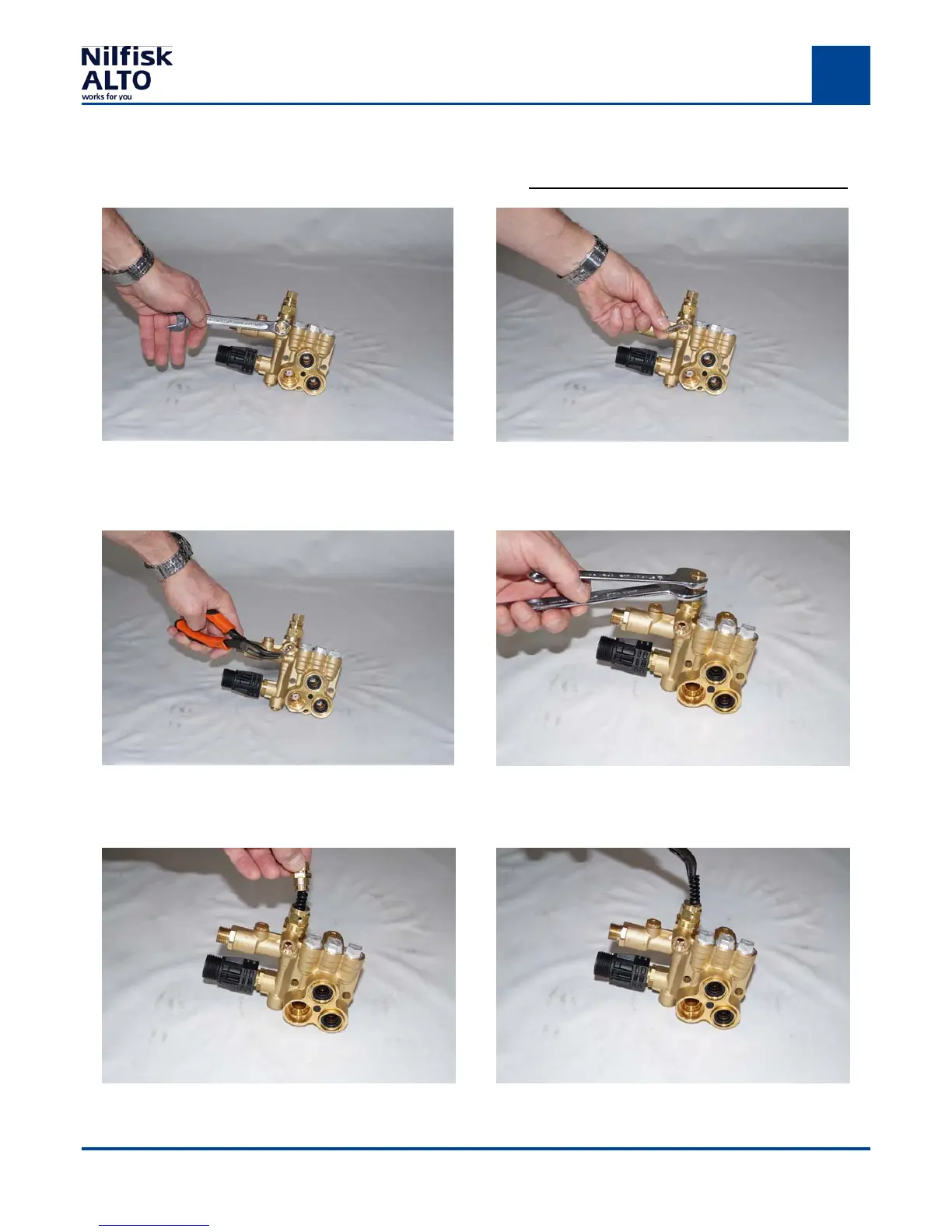

Disassemble fitting for micro switch box
using a 15 mm open ring spanner.
Disassemble piston spring.
MC 3C
Pull out piston for micro switch with a pair of
pliers.
Loosen the counter nut on the unloader.
Regulator Safety Block disassembling
Disassemble the adjusting nut. Pull out the spring with a pair of pliers.
