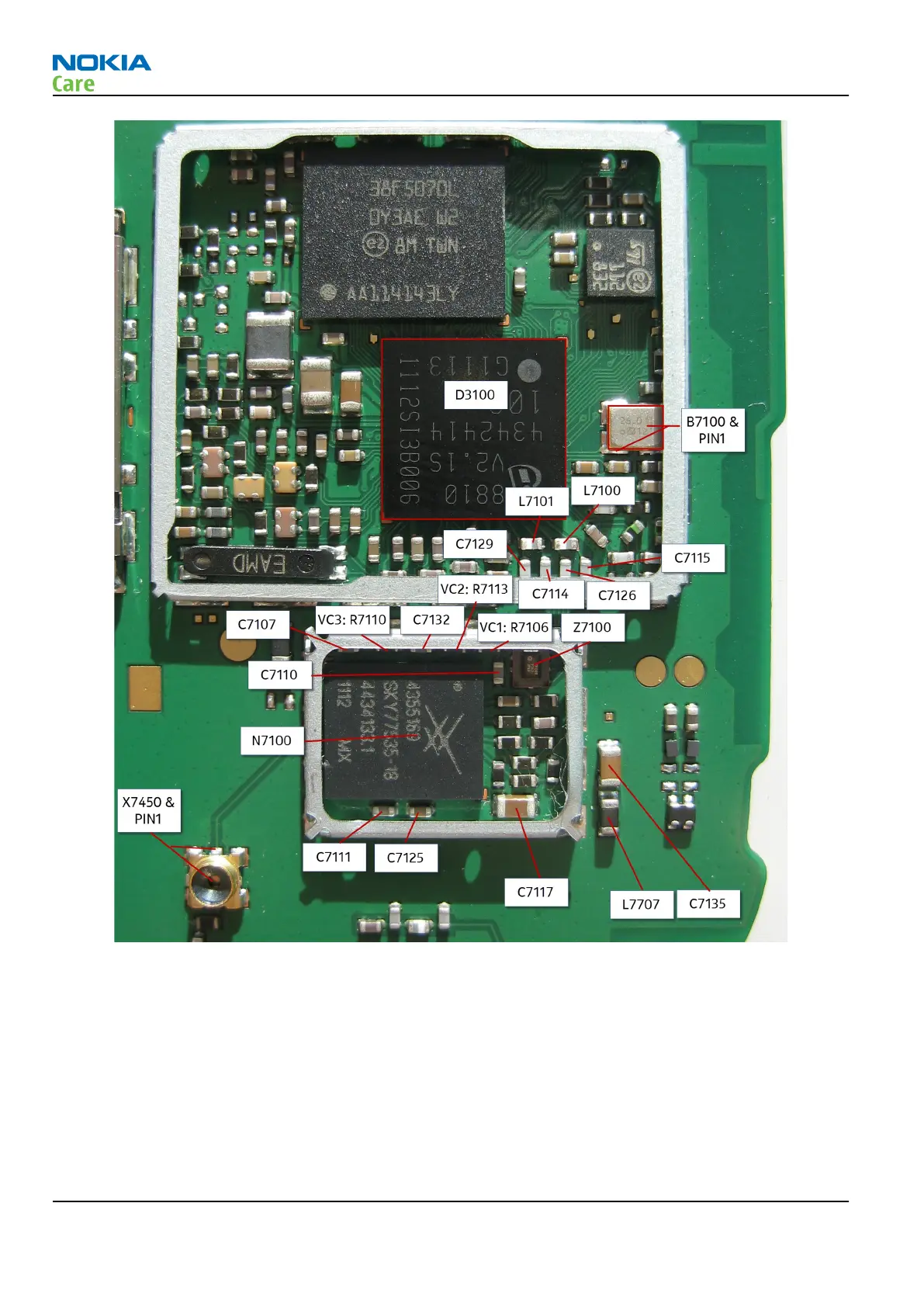

Figure 36 RX checkpoints and component overview (measurement point marked with blue)
RX LB troubleshooting
The test signal from GSM tester must be a continuous signal, as the phone has no means of synchronizing to
a GSM burst signal in local mode. To excite the RSSI detector in the same way a modulated GSM signal does,
the test signal must either be GMSK modulated (Pseudo-random bit sequence (PRBS)) or an un-modulated
CW-signal with 67.7kHz offset from center frequency.
RM-761; RM-799; RM-800
RF Troubleshooting
Page 4 – 14 COMPANY CONFIDENTIAL Issue 1
Copyright © 2011 Nokia. All rights reserved.
