Nokia 2600c-2b User Manual

GSM850 TX output power
Measure the output power of the phone; it should be about 32.5 dBm. Remember the cable loss is about 0.3
dB.

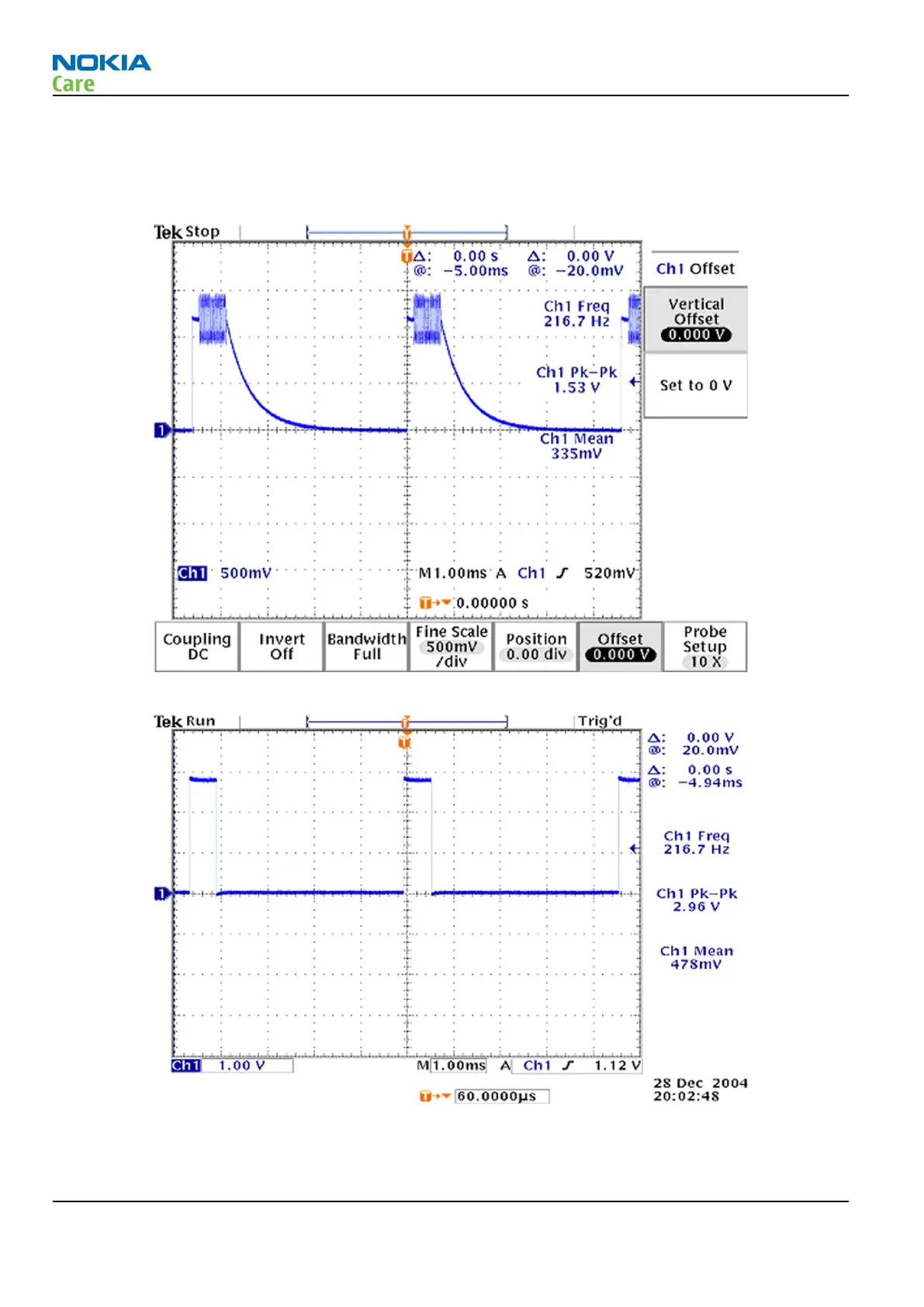

Figure 67 TX I/O signal
Figure 68 VC1, VC3 signal
RM-340; RM-341
RF Troubleshooting Instructions
Page 4 –38 COMPANY CONFIDENTIAL Issue 1
Copyright © 2007 Nokia. All rights reserved.
