Usually bit errors can be easily detected in images, and they are best visible in full resolution images. A good
practice is to use a uniform white test target when analysing these errors. The errors are clearly visible,
colourful sharp dots or lines in camera images. See the following figure.

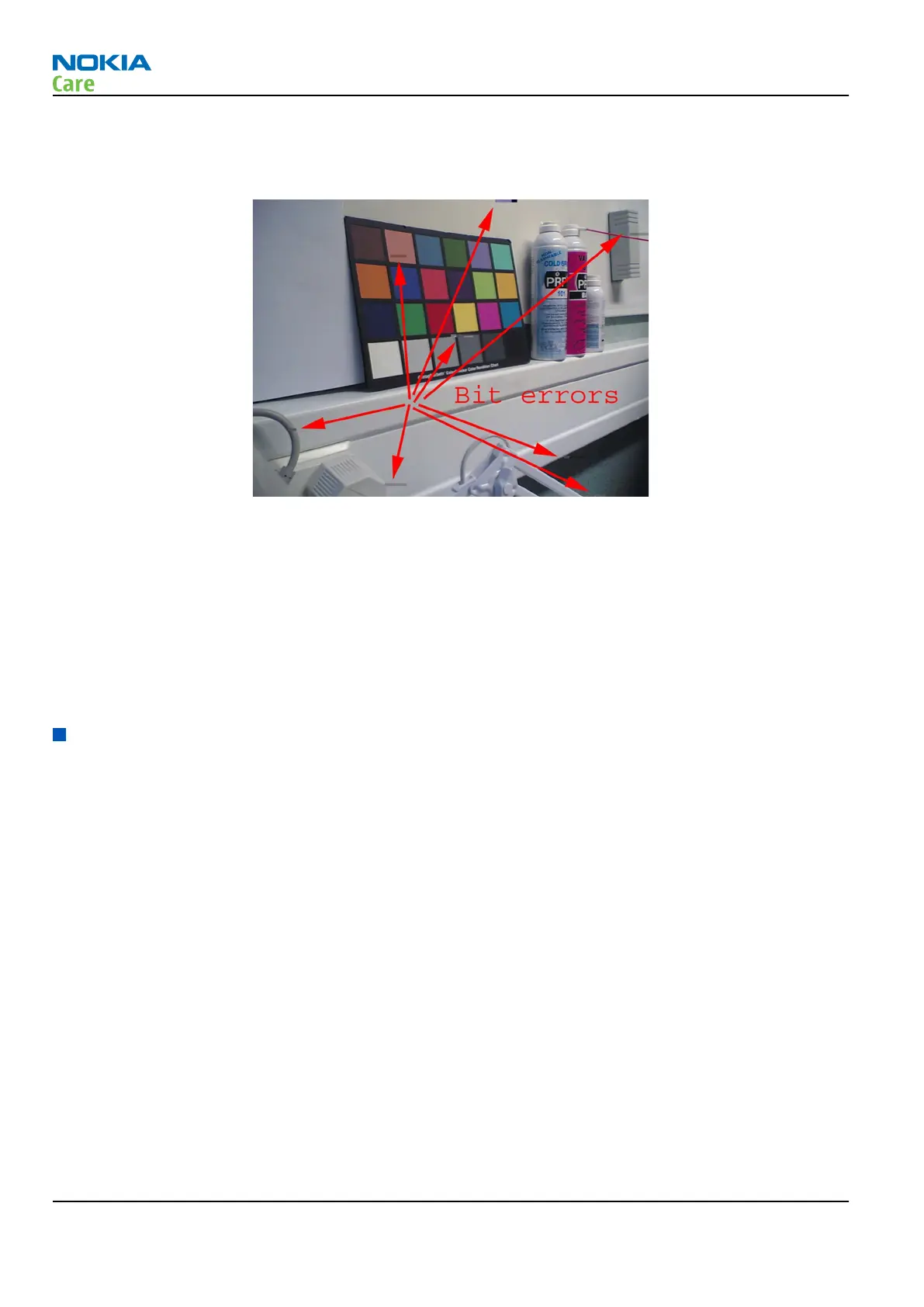

Figure 105 Bit errors caused by JPEG compression
One type of bit error is a lack of bit depth. In this case, the image is almost totally black under normal
conditions, and only senses something in very highly illuminated environments. Typically this is a contact
problem between the camera module and the phone main PWB. Very black images and viewfinder may also
be caused by failure of the 2.8V supply to the camera. You should check the camera assembly and connector
contacts.
If the fault is in the camera module, bit errors are typically visible only when using some specific image
resolution. For example, in case of a viewfinder fault, the error might exist but is not visible in a full size
image.
Camera troubleshooting flowcharts
Camera hardware failure message troubleshooting
Context
If you get a hardware failure message when using the camera, follow the next troubleshooting flowchart.
RM-340; RM-341
