Nokia 2600c-2b User Manual

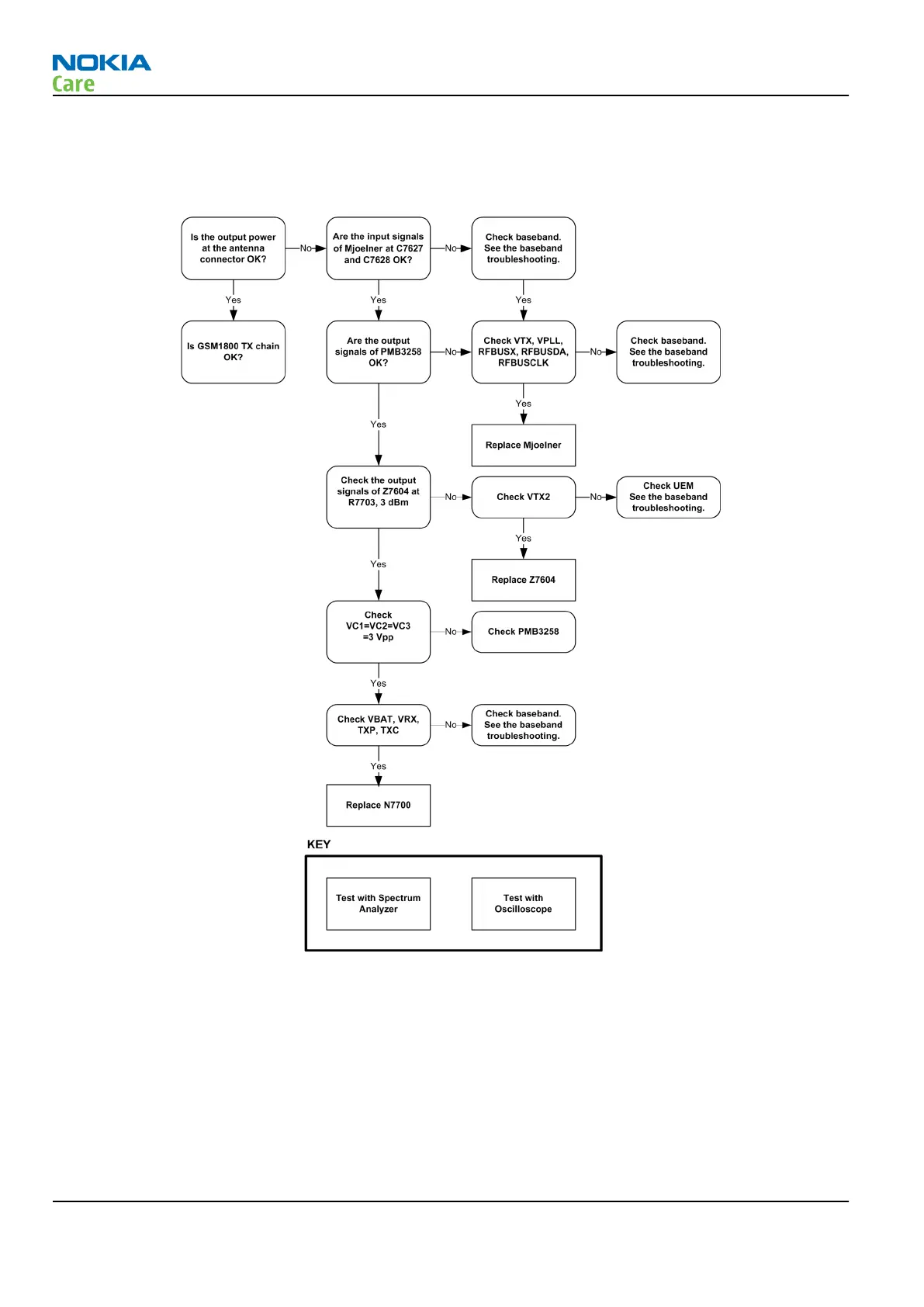

Troubleshooting diagram for GSM1800 transmitter
Troubleshooting flow
Figure 50 GSM1800 transmitter troubleshooting
GSM1800 TX output power
Measure the output power of the phone; it should be about 30.5dBm. Remember the cable loss is about
0.5dB.
RM-340; RM-341
RF Troubleshooting Instructions
Page 4 –24 COMPANY CONFIDENTIAL Issue 1
Copyright © 2007 Nokia. All rights reserved.
