Nokia 447PRO User Manual

447R
5

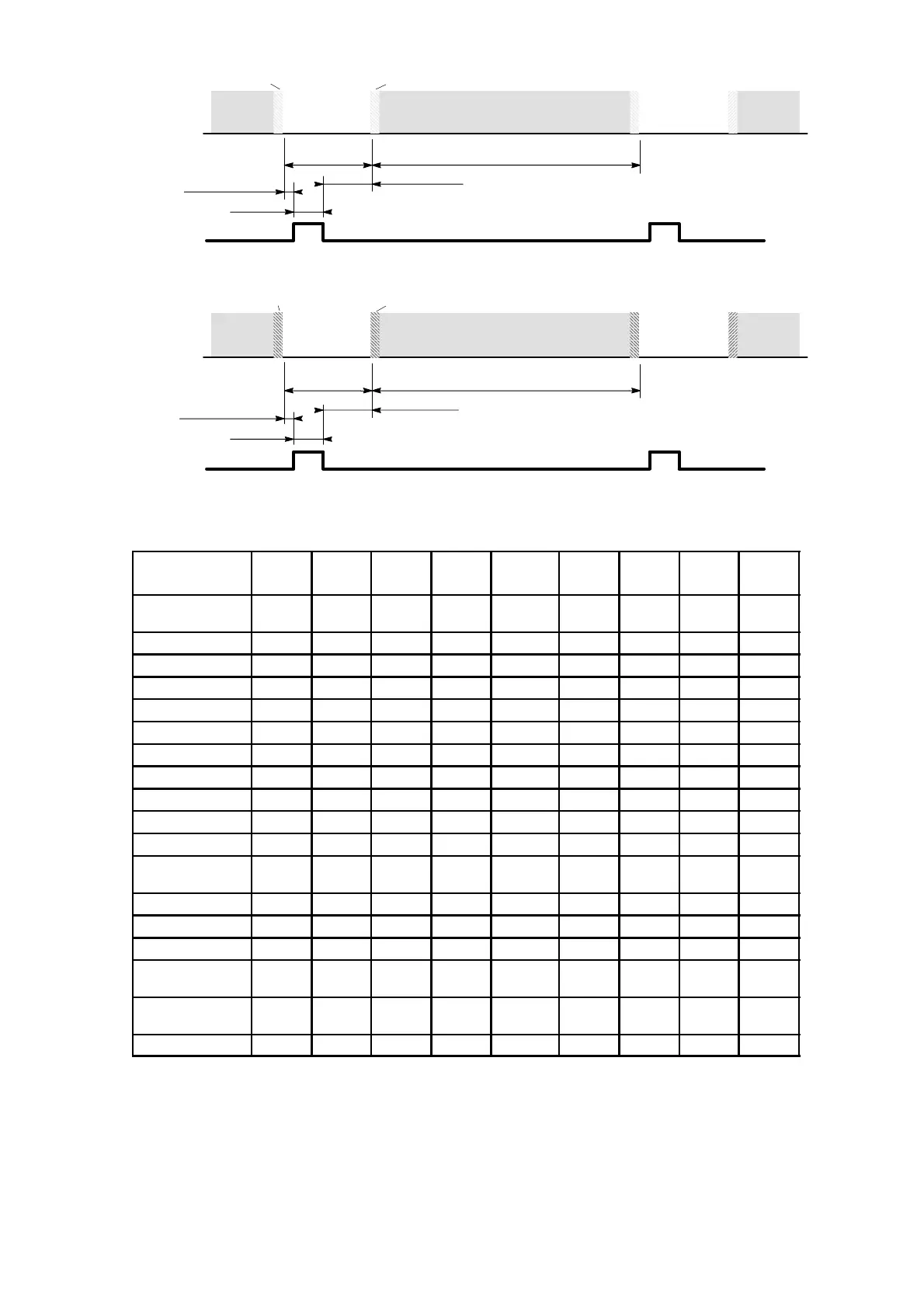

H Front Porch
Video
Full
intensity
0.7 V
Blanking 0 V
H Active Video
HSync
HBlanking
Left BorderRight Border
HBackporch
HSync.
Signal
V Front Porch
VBackPorch
Video
Full
intensity
0.7 V
Blanking 0 V
V Active Video
VSync
VBlanking
Bottom Border
Upper Border
VSync.
Signal
Memory location--> 10 11 12 13 14 15 16 17 18
Display Mode
Name
NCE401 NCE30A NCE306 NCE300 NCE200D NCE013 NCE012 NCE014 NCE011
H Frequency/kHz 37.879 43.2690 37.500 31.472 31.467 77.494 67.500 54.348 68.681
H Period/μs 26.400 23.111 26.667 31.774 31.780 12.904 14.815 18.400 14.560
H Active Video/μs 20.000 17.778 20.317 25.420 25.423 9.481 10.667 14.400 11.520
H Resolution 800 640 640 640 720 1152 1152 1 152 1 152
H Sync/μs 3.200 1.556 2.032 3.813 3.814 1.053 1.185 1.200 1.280
H Back Porch/μs 1.00 2.222 3.810 1.906 1.907 1.843 2.370 2.400 1.440
V Frequency/Hz 60.3 85.0 75.0 59.9 70.1 85.1 75.0 60.1 75.1
V Period/Lines 628 509 500 525 449 911 900 905 915
V Resolution 600 480 480 480 400 864 864 864 870
V Sync/Lines 4 3 3 2 2 3 3 3 3
V Back Porch/
Lines
23 25 16 33 34 43 32 37 39
H sync Polarity + -- -- -- -- + + + --
V sync Polarity + -- -- -- + + + + --
H Front Porch/μs 1.00 1.56 0.51 0.64 0.64 0.53 0.59 0.40 0.32
V Front Porch/
Lines
1 1 1 10 13 1 1 1 3
Dot Frequency/
MHz
40.000 36.000 31.500 25.177 56.640 121.510 108.000 80.000 100.000
Interlacing no no no no no no no no no
