1. Get started
Insert SIM card and battery
A USIM card is an enhanced version of the SIM card and is
supported by UMTS mobile phones.

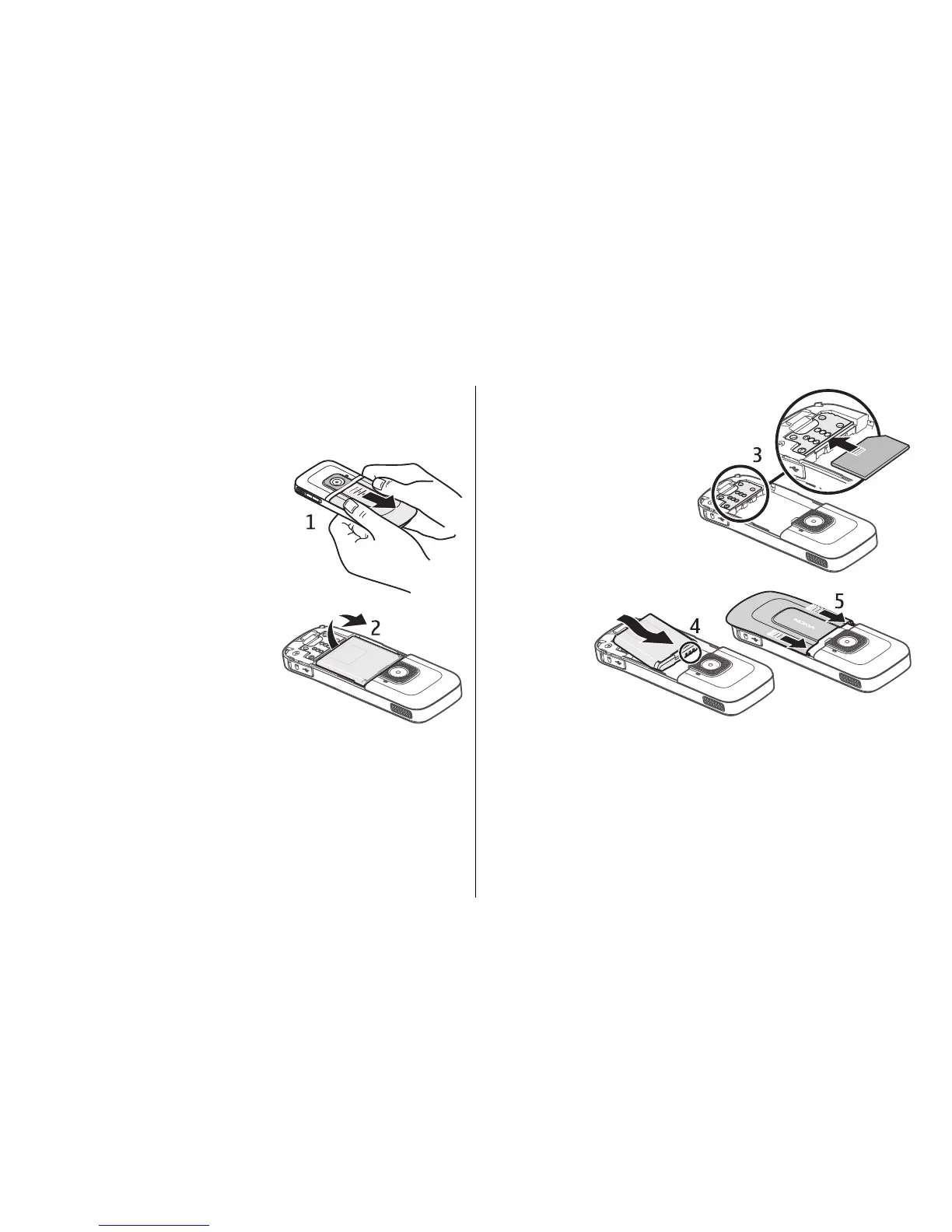

1. To remove the back cover of the
device, press the back cover
with your fingers, slide the
cover open (1), and lift the cover
off.
2. To remove the battery, lift it
from the end (2).
3. Slide the SIM card into the SIM
card holder (3).
Make sure that the gold-
coloured contact area on
the card is facing down
on the device, and the
bevelled corner is facing
toward the card holder
slot.
4. Replace the battery (4).
5. Replace the back cover
(5).
Insert a memory card
The memory card may be supplied with the device, and may
already be inserted.
1. Open the memory card slot cover (1).
© 2009 Nokia. All rights reserved.10
