Service Manual Level 1 and 2
Nokia Lumia 510
RM-889 RM-898
Version 1.0
Assembly steps

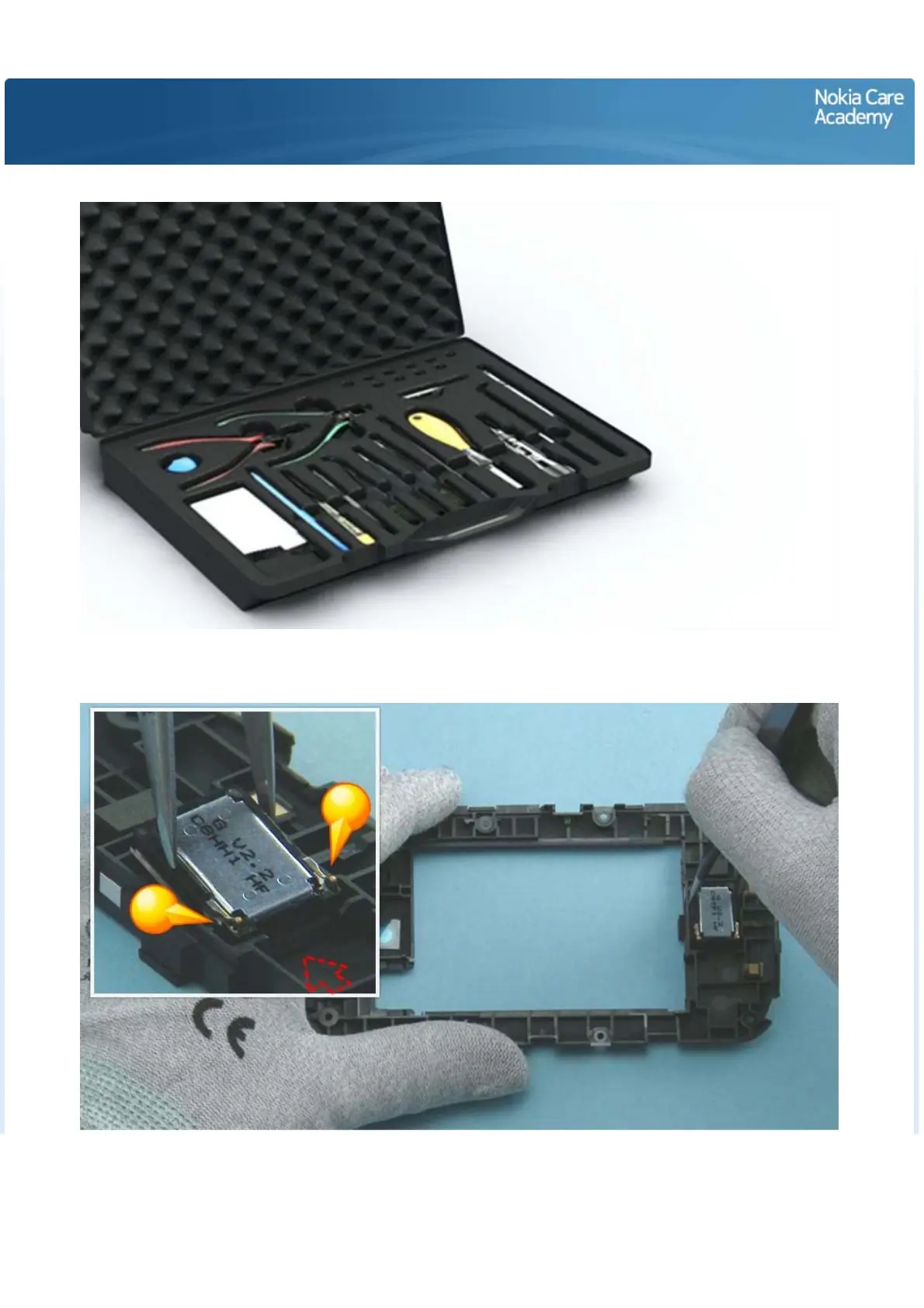

For assembling you need the Nokia Standard toolkit version 2.
Place the IHF SPEAKER into the D-COVER. Make sure the IHF SPEAKER is aligned correctly. The pins should
point towards the cavity with arrow on it.
