Nokia N95 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
08.Jan.2007
22
Service Manual N95 RM-159/RM-245
Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page
(58)

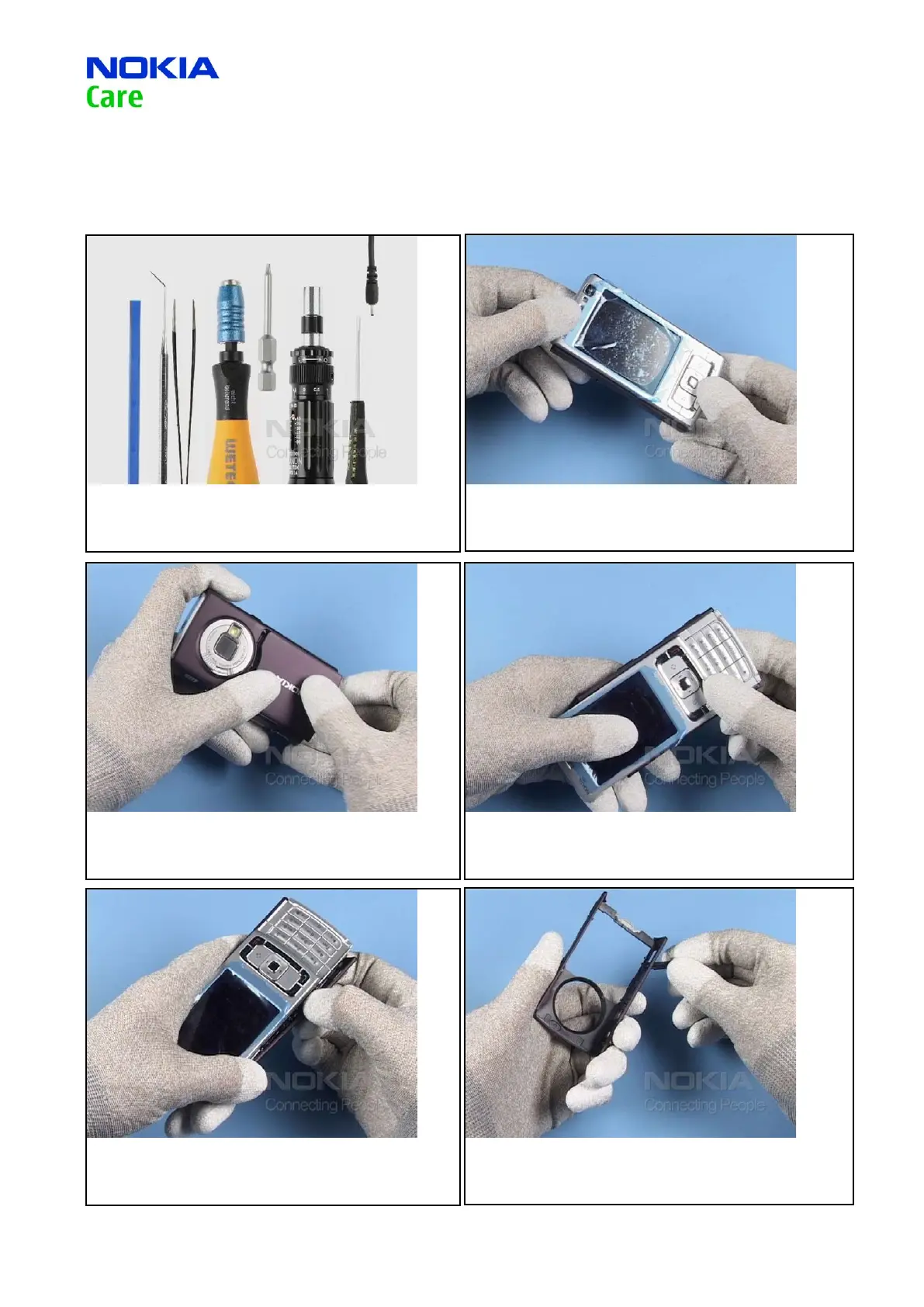

LOWER BLOCK DISASSEMBLY13.
1. Needed tools: SS-93, the dental pick, metal tweezers, a bit
holder with a Torx plus size 6 bit, a torque driver, a straight
bladed screwdriver and a DC plug.
2. Always cover the windows with a protective lm.
3. Unlock and remove the BATTERY COVER.
4. Shift open the assembly.
5. Bend open the BACK COVER ASSEMBLY carefully.
6. The removal of the SD CARD DOOR becomes easy now.

Nokia N95 Specifications

General

Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
Video capture resolution (max)	640 x 480 pixels
2G standards	Edge
Ringer type	Polyphonic
Panel type	TFT
Display diagonal	2.6 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	160 MB
Talk time (2G)	6.5 h
Standby time (2G)	228 h
Form factor	Slider
Product color	Silver

Weight and Dimensions

Depth	21 mm
Width	53 mm
Height	99 mm
Weight	120 g
