Nokia N95 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
08.Jan.2007
57
Service Manual N95 RM-159/RM-245
Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page
(58)

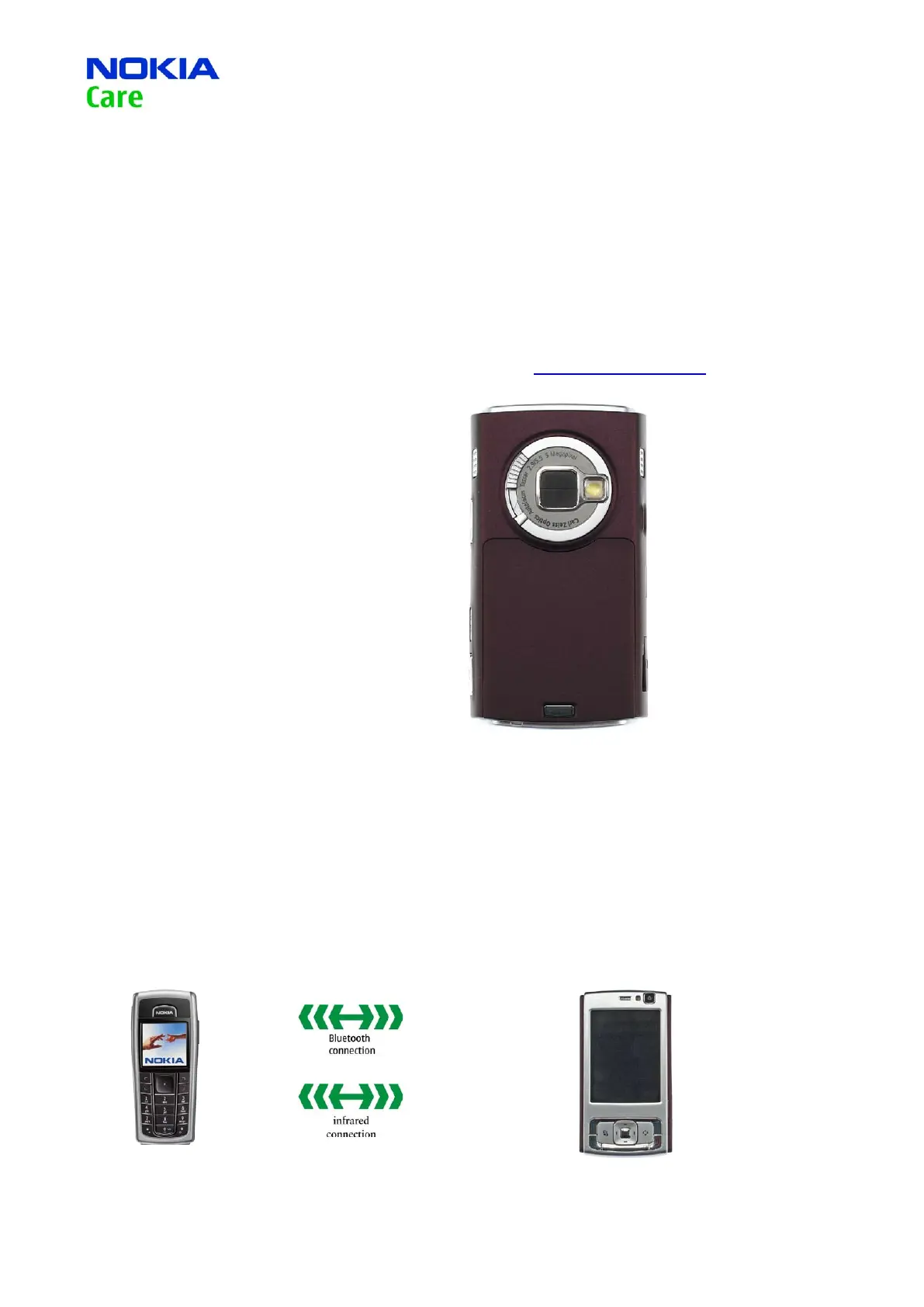

GONOGO TEST36.
Before starting the
GoNoGo test, check that
camera window is clean.
If not, clean the window
with cloth.
To test the Camera, Bluetooth and IRDA functionality refer to the phone User`s
guide.
The User´s Guide is available on www.nokia.com.
Bluetooth test
You need another Bluetooth device (e.g. 6230) to do a GoNoGo test.
Make sure that Bluetooth is activated in the reference unit. The distance of the devices should be not more than 5m
from each other.
Infrared test
You need another infrared device (e.g. 6230) to do a GoNoGo test. The infrared windows of the devices must be
directed to each other and should have a distance of approximate 15 cm. Make sure that infrared is activated in
receiver device.
Warning: Do not point the IR (infrared) beam at anyone’s eye or allow it to interfere with other IR devices. This
device is a Class 1 Laser product.
Reference unit, Bluetooth /infrared activated Test unit

Nokia N95 Specifications

General

Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
Video capture resolution (max)	640 x 480 pixels
2G standards	Edge
Ringer type	Polyphonic
Panel type	TFT
Display diagonal	2.6 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	160 MB
Talk time (2G)	6.5 h
Standby time (2G)	228 h
Form factor	Slider
Product color	Silver

Weight and Dimensions

Depth	21 mm
Width	53 mm
Height	99 mm
Weight	120 g
