Nokia N95 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
08.Jan.2007
29
Service Manual N95 RM-159/RM-245
Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page
(58)

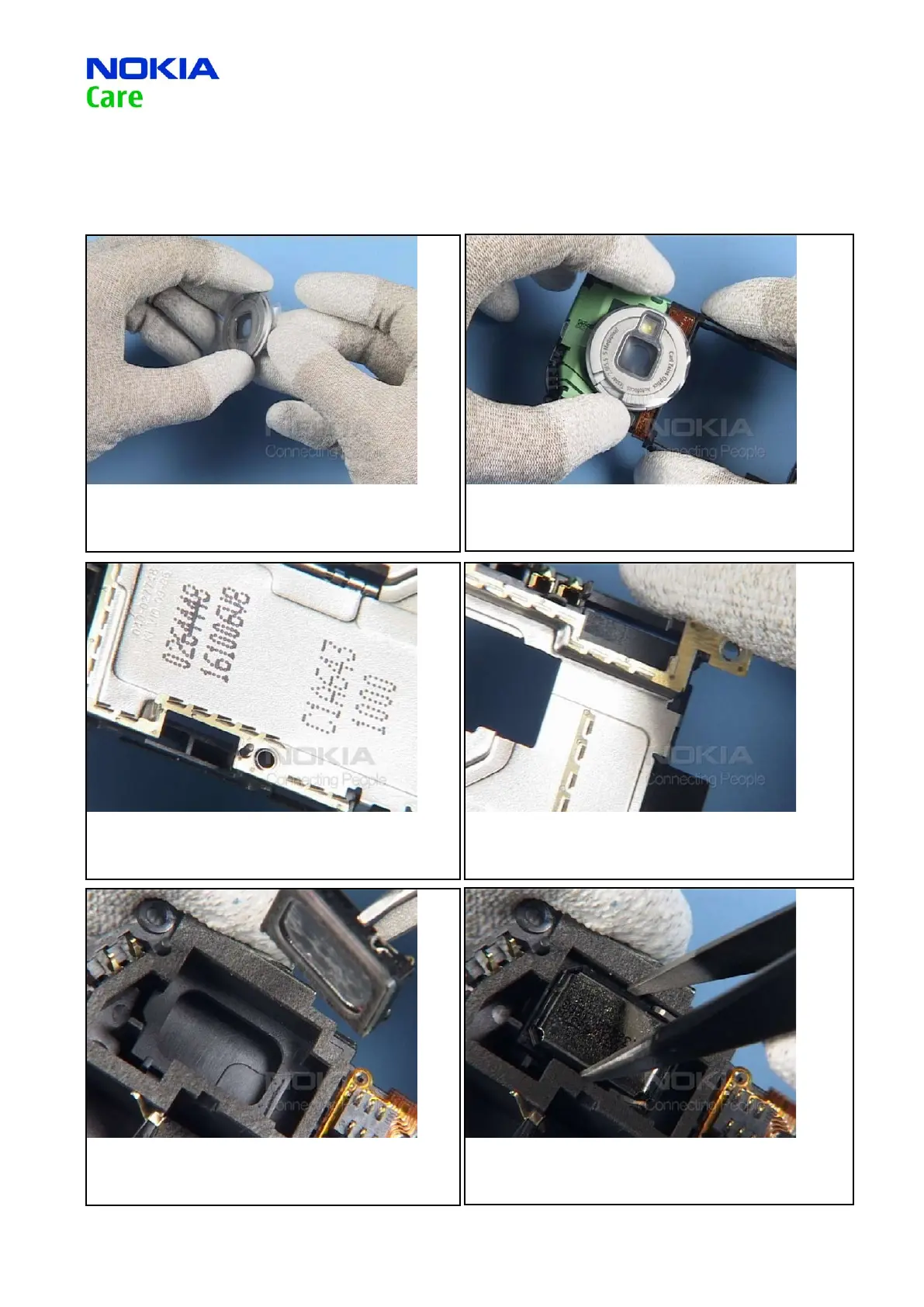

7. Remove the protection lm from the CAMERA PROTECTIVE
SHUTTER.
8. Align it and push down the assembly as shown evenly to x
the adhesive.
9. Place the BB SHIELD into the CHASSIS.
10. Do not bend the HF gasket.
11. Complete the DONAU SPEAKERS with new adhesives.
12. Mind the correct positioning before placing the speakers into
the CHASSIS.
