66
17 Installation of the Quick Connect
Multi-System
The Quick Connect Multi-System allows the installation of two Water Heaters together utilizing only the Quick
Connect Cord (part #QC-2, sold separately).

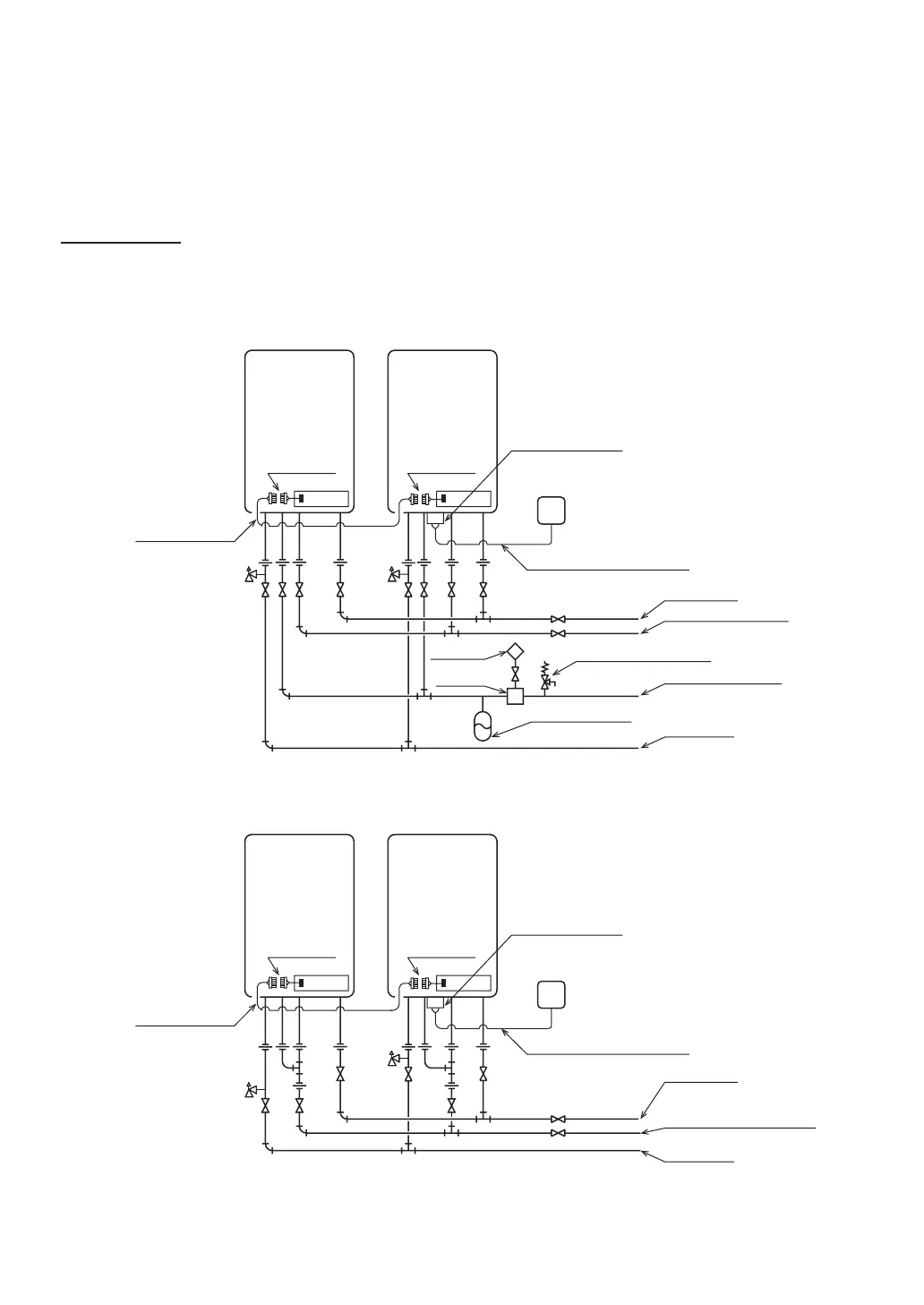

System Diagram
• Connect a single Remote Controller to only one of the Water Heaters.
• Water Heaters must be same model.
Remote Controller Cord
Gas Supply
Cold Water Supply
Hot Water
Remote
Controller
External Remote
Terminal Block
Quick Connect
Cord
Cord
Connector
Cord
Connector
Air Vent
Air Out
Hot Water Return
Pressure Relief Valve
Expansion Tank
[With the return line]
Remote Controller Cord
Gas Supply
Cold Water Supply and
Hot Water Return
Remote
Controller
External Remote
Terminal Block
Quick Connect
Cord
Cord
Connector
Cord
Connector
[With the Crossover Valve]
Installation of the Quick Connect Multi-System
