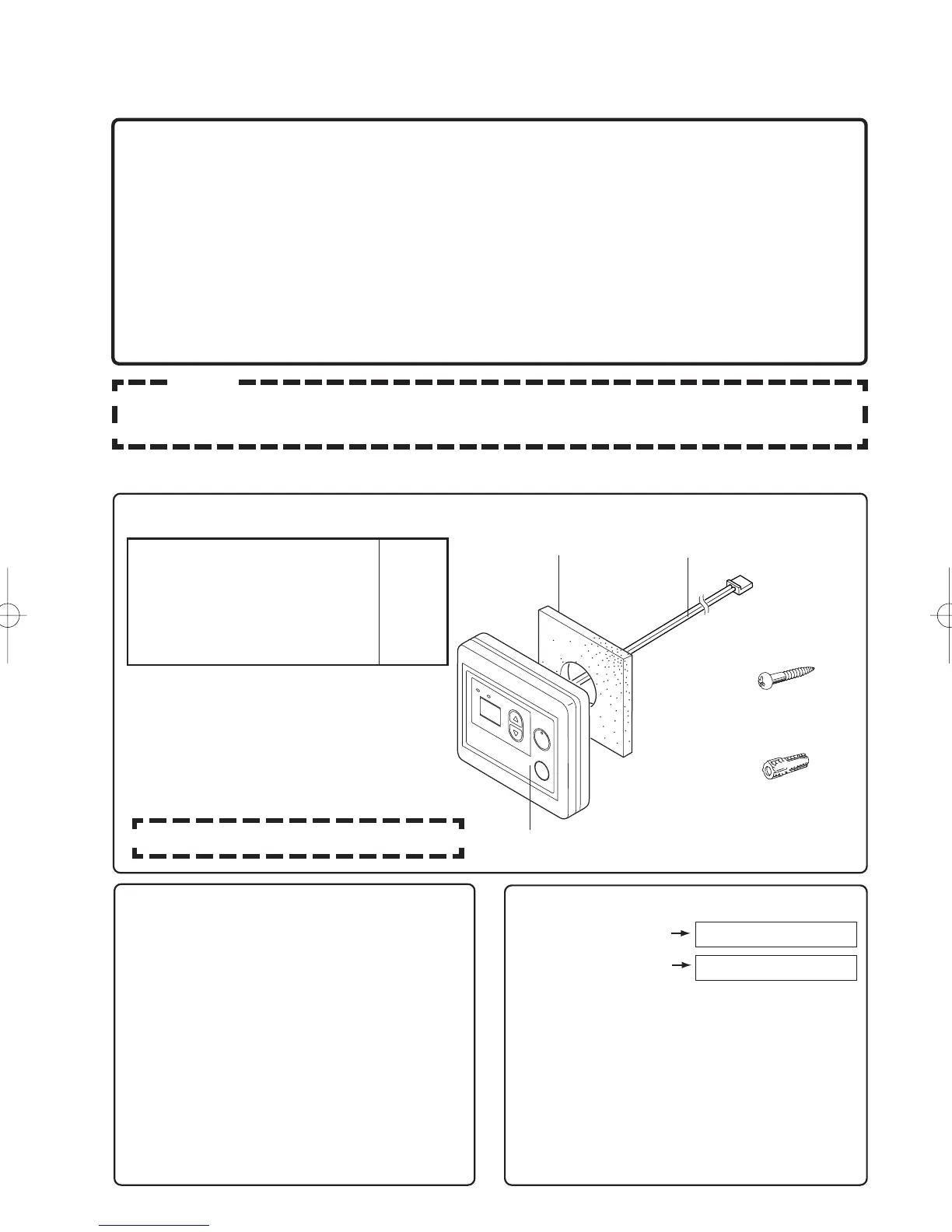

Included Parts List
Remote Controller RC-7646M-2
Installation Guide
For Installers:
Read this installation guide
carefully before carrying out
installation.
NORITZ AMERICA CORPORATION
Note
Do not connect power to the water heater before the remote controller has been properly
installed.
Do not disassemble the remote controller.
Wall Packing
Connecting Wire
Remote Controller
Phillips Roundhead
Wood Screw
Wall Anchor
Part Name
Remote Controller
Wall Packing
Phillips Roundhead Wood Screw
Wall Anchor
Quantity
1
1
2
2
Notes on the Installation Location
•The remote should be installed in an easily
accessible location.
• Avoid installing in a place where water may
splash on the controller.
• Avoid locations where special chemical
agents (e.g., benzene, fatty and oily deter-
gents) are used.
• Avoid outdoor installation, or installation in an
indoor location where it will be exposed to
direct sunlight.
Connection of Remote Controller Cord
White Connector To Remote controller
Y-shaped terminals To Water heater
(two-core)
* Confirm the connection with the labels at
both ends of the remote controller cord.
•A 26' cord can be purchased separately
(Part # RC-CORD26).
• The remote controller cord can be ex-
tended up to 300 ft. by splicing the cord
and using 18 gauge wire to extend the
cord to the appropriate length.
