7

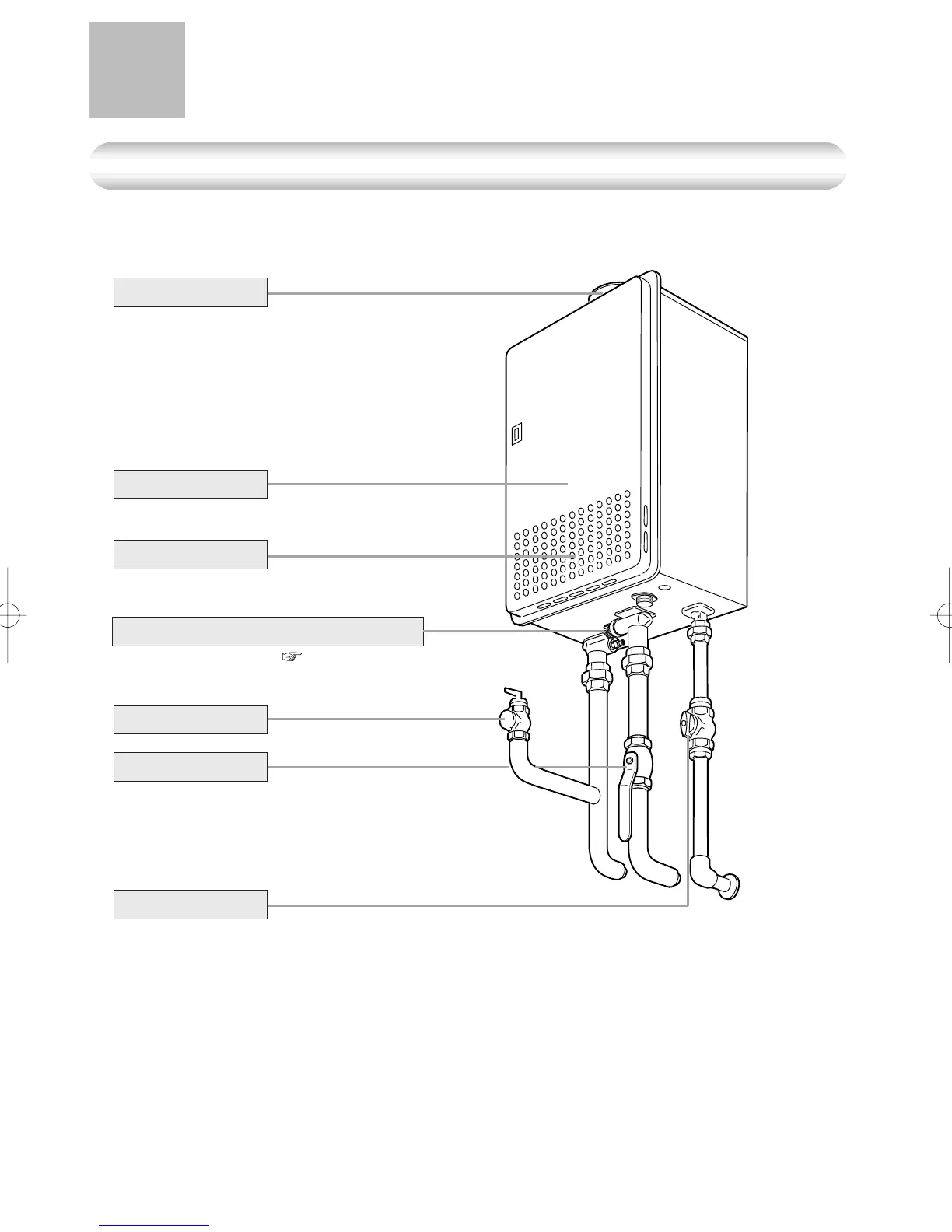

Indoor/Outdoor Wall Mounted, Power Vented Model
*
The above illustration shows an example of installation.
The exact installation configuration may be slightly different.
Main Unit
Flue Collar
Front Cover
Air Inlet
Water Supply Valve
Gas Supply Valve
Water Drain Valve (with Water Filter)
(Inside Water Inlet)
(
p.20)
Pressure Relief Valve
General Parts
En069M/n063S(0113)J.p65
05.10.11, 10:56 PM
Page 7
AdobePageMaker6.5J/PPC
6
8
Table of Contents
Installation Manual
1
Table of Contents
2
Contents
2
Important Safety Information
3
General Parts
7
Main Unit
7
Remote Controller
8
Initial Operation
10
How to Use (Using the Remote Controller)
11
Muting the Remote Controller
11
Setting and Using the Water Heater
12
Flow Meter Alarm
14
How to Use (Not Using the Remote Controller)
16
Setting and Using the Water Heater
16
Preventing Damage from Freezing
17
Turning the Unit Back on
18
Regular Maintenance
19
Periodic Maintenance
20
Troubleshooting
21
Amount of Hot Water
22
Follow-Up Service
25
Specifications
26
External Outfitting
27
Combustion Unit and Gas Route
29
Hot-Water Feed Route for N-069M Only
31
Hot-Water Feed Route for N-063S Only
32
Electronic Control Unit
34
Electronic Control Unit, Remote Controller and Attached Set
35
Installation Manual
36
Included Accessories
37
Optional Accessories
37
Quick Connect Multi System Installation
38
Before Installation
39
Choosing Installation Site
39
Installation Clearances
41
Installation
44
Vent Pipe Installation (Indoor Installation Only)
45
Gas Piping
48
Water Piping
50
Plumbing Applications
51
Electrical Wiring
52
Pump Wiring
55
Maintenance
56
Trial Operation
56
Lighting Instructions
57
Shutdown Instructions
57
Dimensions
58
Connecting Quick Connect Cord
60
Remote Controller Installation Guide
61
5
