12

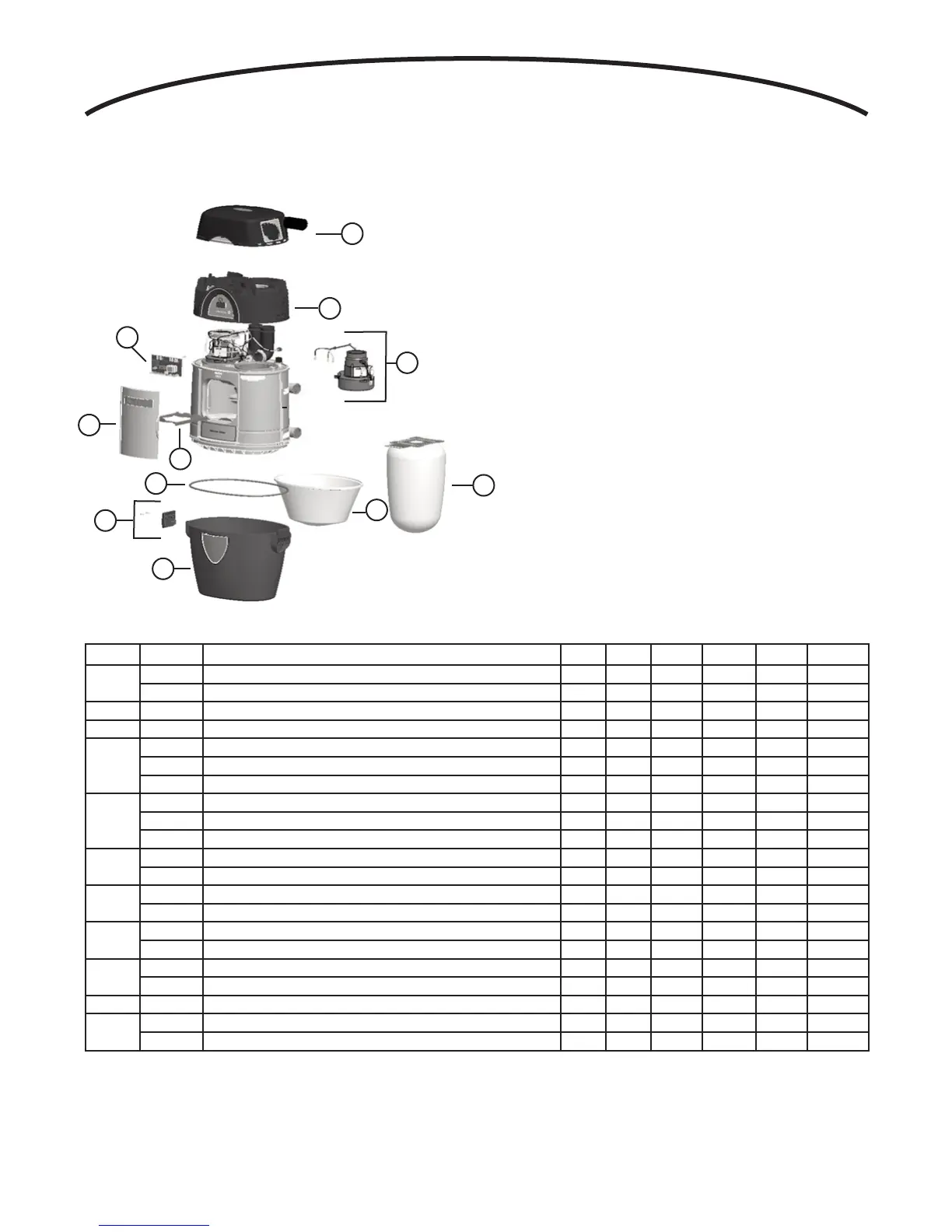

ILLUSTRATED PARTS LIST
Order service parts by “Part No.” - not by “Key No.”
Key No. Part No. Description VX475 VX550 VX1000 VX475C VX550C VX1000C
1
10941189 Pail assembly VS X X
10941191 Pail assembly TS X X X X
2 10941190 Door assembly X X X X X X
3 10941199 Latch kit (with screws) X X X X X X
4
10941232 VS PCB’s assembly (including mother, daughter and screws)* X X
10941233 TS1 PCB’s assembly (including mother, daughter and screws)* X X
10941195 TS2 PCB’s assembly (including mother, daughter and screws)* X X
5
10941235 VS motor with motor harness, fuse with fuse harness and circuit breaker* X X
10941236 TS1 motor with motor harness, fuse with fuse harness and circuit breaker* X X
10941231 TS2 motor with motor harness, fuse with fuse harness and circuit breaker* X X
6
30100528 Pail gasket TS X X X X
30100527 Pail gasket VS X X
7
30010272 Cyclonic filter VS X
30010270 Cyclonic filter TS X X
8
10941215 Motor chamber VS with logo* X X
10941216 Motor chamber TS with logo* X X X X
9
10941212 Top cap VS with logo X X
10941214 Top cap TS with logo X X X X
10 30111112 Mount bag plate X X X
11
VX3918 Filter bag ass’y TS (3 per pack) X X
VX3916 Filter bag ass’y VS X
*This part MUST be removed and installed by a qualified technician.
9
8
4
2
5
6
7
1
11
3
10
REPLACEMENT PARTS AND REPAIR
In order to ensure your unit remains in good working condition,
you must use Broan-NuTone genuine replacement parts only.
Broan-NuTone genuine replacement parts are specially designed
for each unit and are manufactured to comply with all the
applicable certification standards and maintain a high standard of
safety. Any third party replacement part used may cause serious
damage and drastically reduce the performance level of your
unit, which will result in premature failing. Broan-NuTone also
recommends to contact a Broan-NuTone certified service depot
for all replacement parts and repairs.
