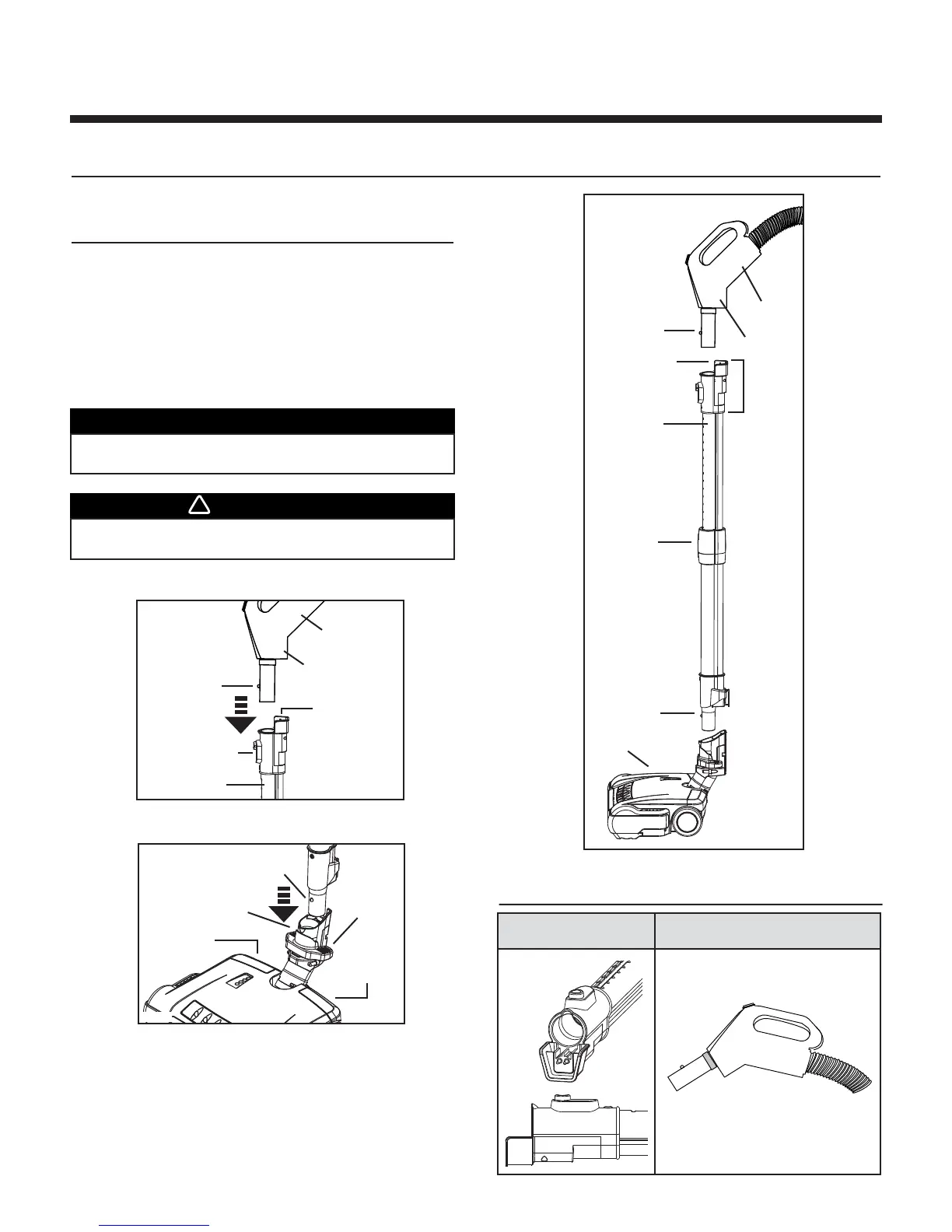

HOSE HANDLE TO WAND CONNECTION
HOW TO ASSEMBLE
POWER BRUSH/WAND/HANDLE
1. Read important safety instructions before installing power
brush.
2. Ensure hose is disconnected from power supply before
installing power brush.
3. Push wand into power brush neck so that the lock button
snaps in place.
4. Connect hose handle into wand quick connector and
ensure that the prongs are aligned with the receptacle
holes. Push until lock button snaps in place.
HOSE
HANDLE
POWER
BRUSH
LOCK
BUTTON
LOCK BUTTON
POWER BRUSH
NECK
WAND TO POWER BRUSH CONNECTION
HEIGHT
ADJUSTMENT
PEDAL
PRONGS
LOCK
BUTTON
LOCK
BUTTON
HOSE
HANDLE
PRONGS
WAND
WAND
RECEPTACLE
RECEPTACLE
WAND
GRIP
WAND
RELEASE
PEDAL
POWER BRUSH
NECK RELEASE
PEDAL
HOSE HANDLE
RELEASE BUTTON
QUICK
CONNECTOR
AO0019
AO0020
AO0021
WAND AND HOSE COMPATIBILITY
WAND PART NO. 08949
VACUUM HOSE PART NOS.
32DVB, 32DVN AND BN32DV
HOSE HANDLE
CAUTION
Always check underside of product for any
obstructions prior to use.
WARNING
Never leave electric power brush unattended while
it is plugged in.
FOR MODEL: DLXKIT800
NOTE: If your dual voltage hose is not compatible with
your new BN200 power brush, please contact
Broan-NuTone Customer service at 1-888-882-7626
to receive a free electrical cord (Part no. CRD400-01)
that will enable you to connect your new power brush
to your hose.
IMPORTANT: Do not return the brush to your retail store.
