Installation of an AGP-8x graphic card
Instructions
Turn off your PC and disconnect all power supply. Open the computer case and locate the
AGP-8x graphic card slot. To prevent shock, secure yourself with antistatic wrist strap.
Insert the graphic card

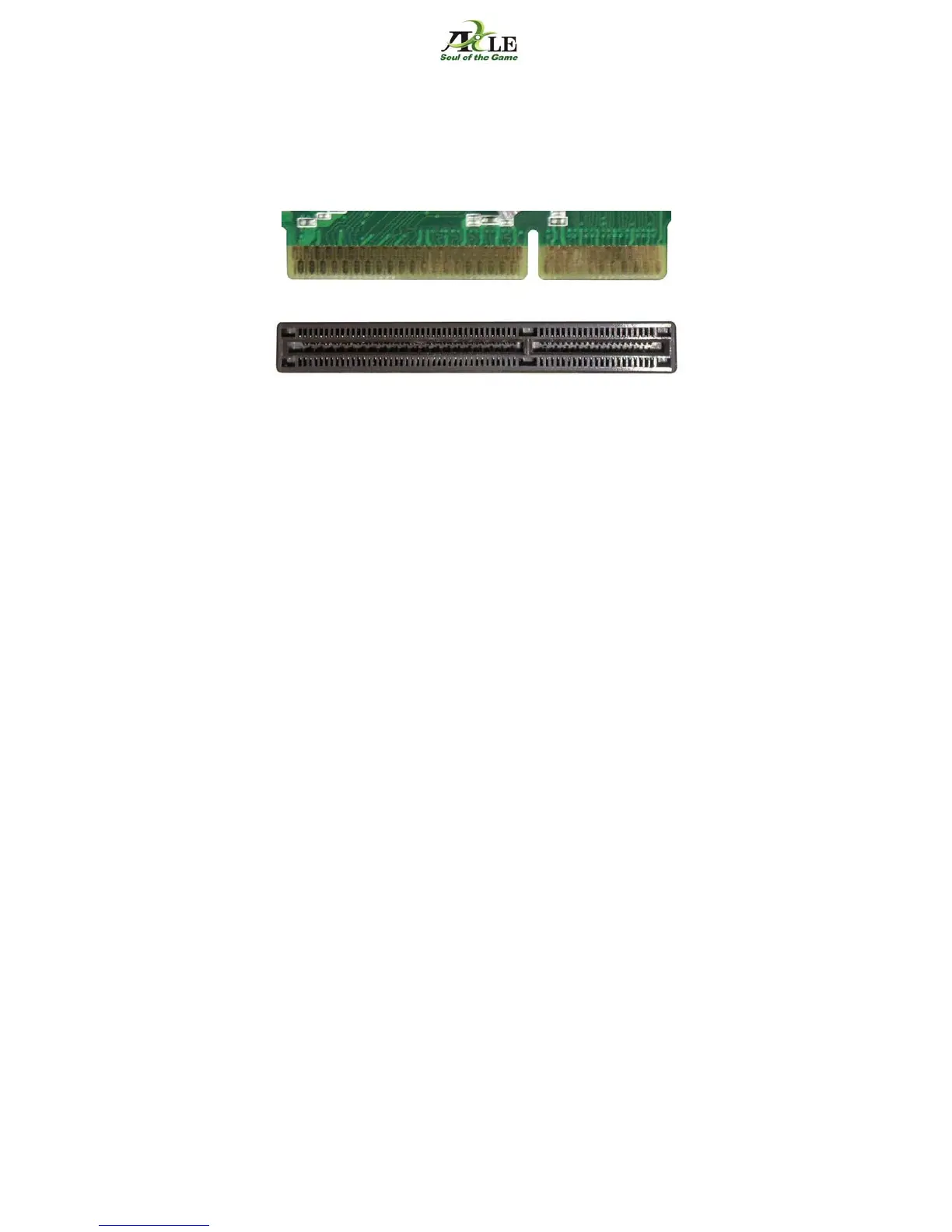

AGP-8x-Connector (ill. 1)
AGP-8x-Slot (ill. 2)
Convince yourself that the structure of the slot (ill. 2) and the graphic card connector agree
(ill. 1). Insert the graphic card carefully and without force into the card location. Please
make sure that the graphic card is inserted completely.
Put two fingers to the backmost end of the graphic card and prove that the card fits
correctly into the AGP-Slot (ill. 2).
The most frequent source of error with the installation of the graphic card is that the graphic
card was not inserted correctly into the card slot.
Screw the graphic card to the back plate.
If the graphic card has an additional power connection, connect it with a power cable at the
power supply unit of your computer (maybe an adapter is necessary).
The data bandwidth of AGP-8x graphic cards amounts up to 2.1GB/s.
