Oki B6500 Series User Manual

Replacing the Fuser
NOTE: Prior to replacing the fuser in the
B6500 we strongly suggest that you turn
the unit off and let it cool down for 5 to 10 minutes before beginning this
procedure.

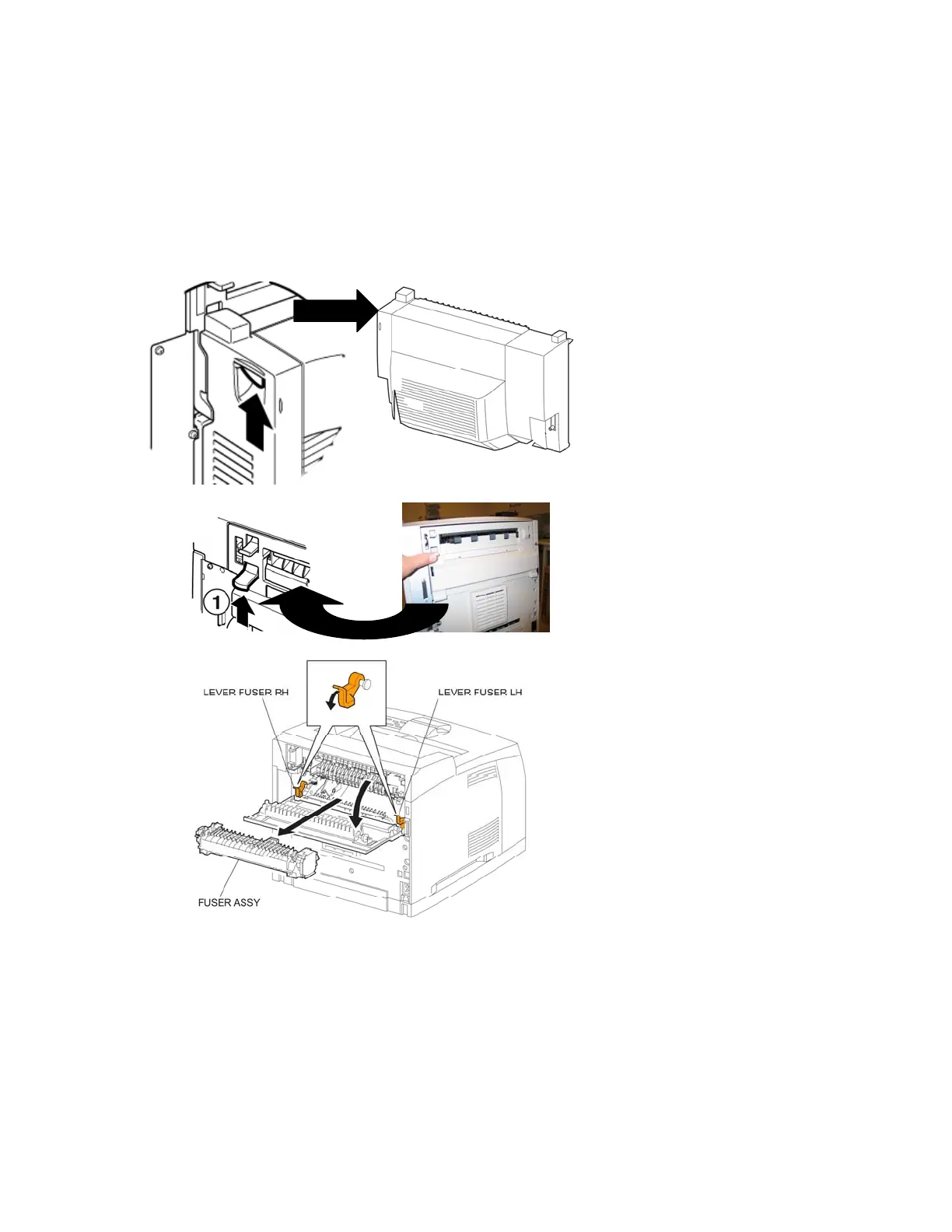

1. If the duplexer is
installed, press the
button on the left
side of the
duplexer to release
it and pull down
the duplex
assembly
2. Open the rear
cover by pushing
up on the lower tab
as shown at left.
3. Push down on both
Orange tabs (Lever
Fuser, as
illustrated at left)
and slide the fuser
unit straight out of
the printer.
Page 14 B6500Support Guide Oki Data
