C9600 User’s Guide> 27
T
RAY
AND
STACK
ER
EXAMP
LES
L
OADING
T
RAYS
1
TO
5

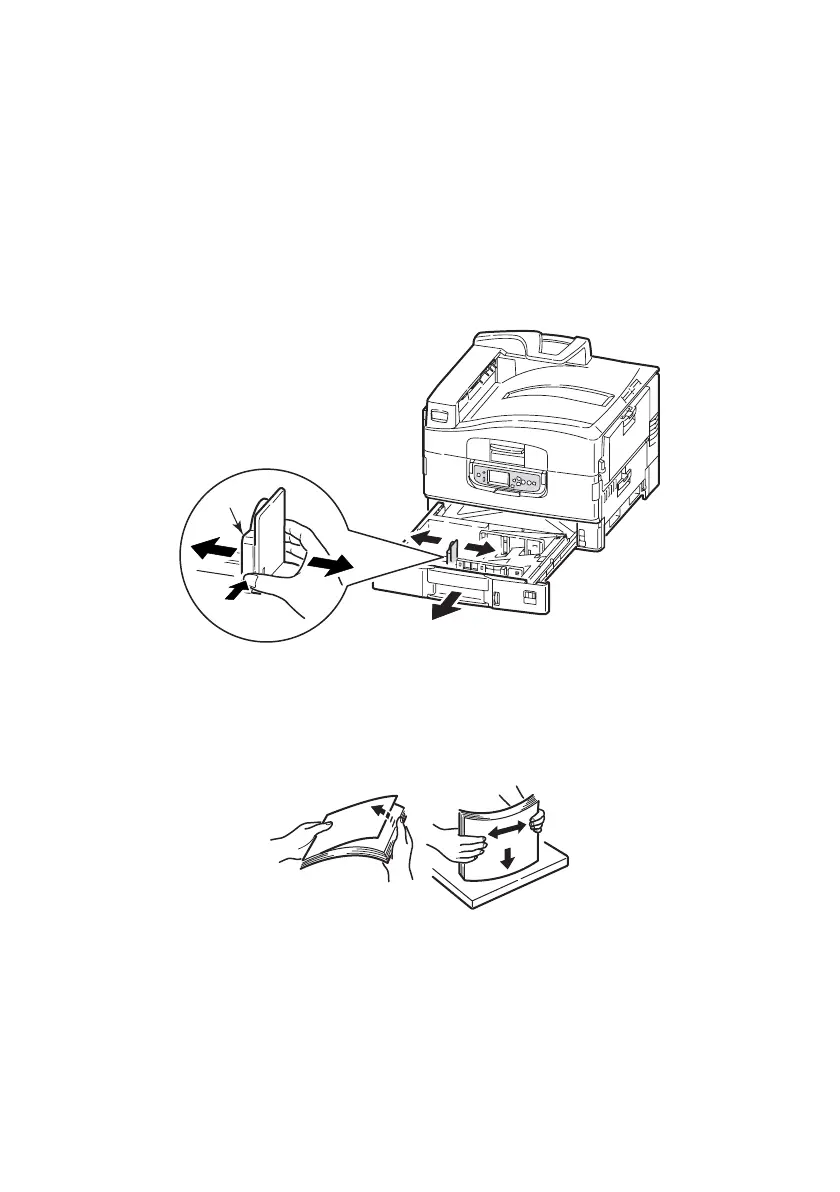

Tray 1 is used in the following example.
1.
Pull out the tra
y
.
2.
Press the paper rear stopper tab (1) and adjust the tab to the
required paper siz
e.
3.
F
an the paper to be loaded then tap the edges of the stack on
a flat surface to make it flush.
1
26
28
