C9600 User’s Guide> 67
O
PEN
COVER
,
PAPER
JAM
,
TOP
COVER
1.

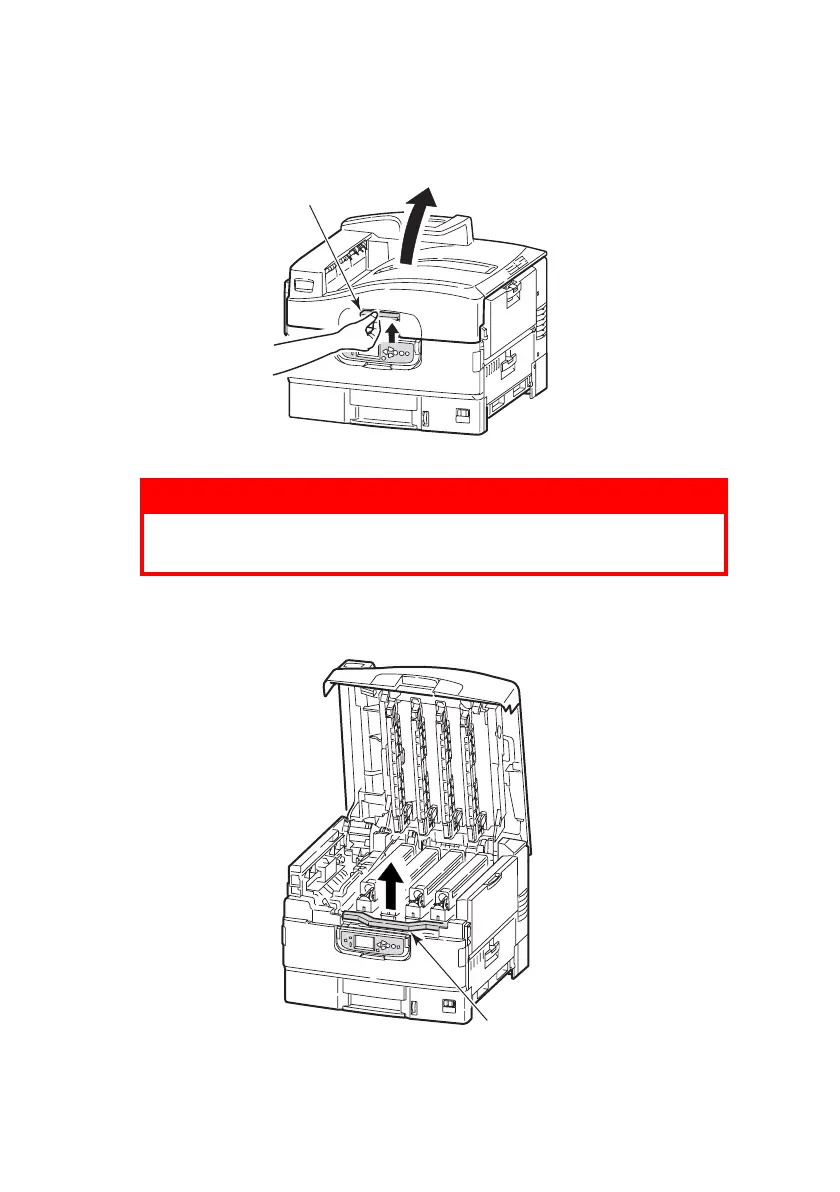

Squeeze the top cover handle (1) and open the top cover
.
2.
Squeeze the basket handle (2) and raise the drum basket.
WARNING!
Be careful not to touch the fuser unit which is hot after
printing.
1
2
