Oki ML186 User Manual

11 • Getting Started
Adjusting the Head Gap
The head gap is the distance between the printhead and the platen
roller. When you use envelopes or multipart forms, you need to
have a larger gap than when using plain paper. Use the
recommended head gap to ensure the best print quality and easy
paper feed

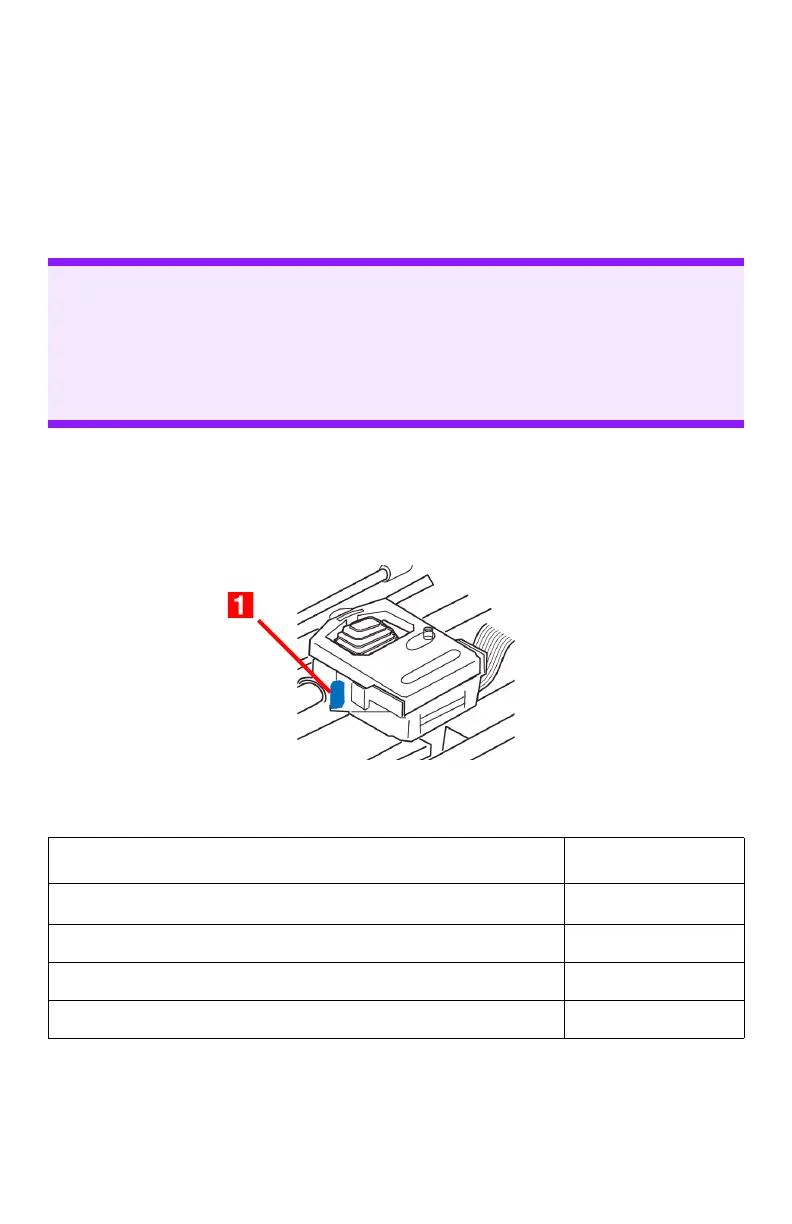

To adjust the head gap, move the colored lever (1) located to the
left of the ribbon cartridge to the correct position for the type of
media being used …
…as detailed in the following table:
CAUTION!
Incorrect setting of the head gap can cause printhead
damage or ribbon jams. To avoid these problems set the
head gap for the type of media being used.
Paper Type Lever Position
Single Sheets, up to 20 lb. (75 g/m
2
)
1 or 2
Forms, 2-part [maximum thickness 0.28 mm] 2 or 3
Forms, 3-part [maximum thickness 0.28 mm] 3
Forms, 4-part [maximum thickness 0.28 mm] 3

Oki ML186 Specifications

Technology and Print Characteristics

printhead	9-Pin SIDM
graphics resolution	240 (H) x 216 (V) dpi maximum
feed rate	2.0 ips
character pitch	10, 12, 15, 17.1 and 20 cpi
print speed	62.5 cps (NLQ), 250 cps (Utility), 333 cps (HS Draft), 375 cps (SS Draft)
matrix	12 x 17 (NLQ), 12 x 9 (Utility), 10 x 9 (HS Draft), 8 x 9 (SS Draft)

Emulation, Interface and Memory

co-resident emulations	IBM 2480, Epson ESC/P, OKI MICROLINE
interface	Integrated USB and IEEE Parallel, Optional RS-232C Serial, Ethernet via OkiLAN 6020e
memory	128K Receive Buffer

Paper Handling

paper input	Single-part, Multi-part, Continuous forms, Cut sheet, Card stock, Envelopes, Labels
number of copies	4-part Rear Feed, 5-part Bottom Feed
thickness	0.011" (0.28mm) maximum

Warranty and Reliability

limited warranty	3-Year parts and labor, 2-Year printhead
MTBF	20, 000 hours (25% duty cycle/35% page density)
monthly workload	13, 000 pages at 25% duty cycle/35% density
printhead life	200 million characters avg. in 10 cpi utility mode at 25% duty, 35% page density
ribbon life	3 million characters (Utility mode)

Environmental

size	14.65" x 10.83" x 3.15" (37.2 cm x 27.5 cm x 8.0 cm)
net weight	10 lb. (4.5 kg)
acoustic noise	58 dBA
