P RINTER COMPONENTS

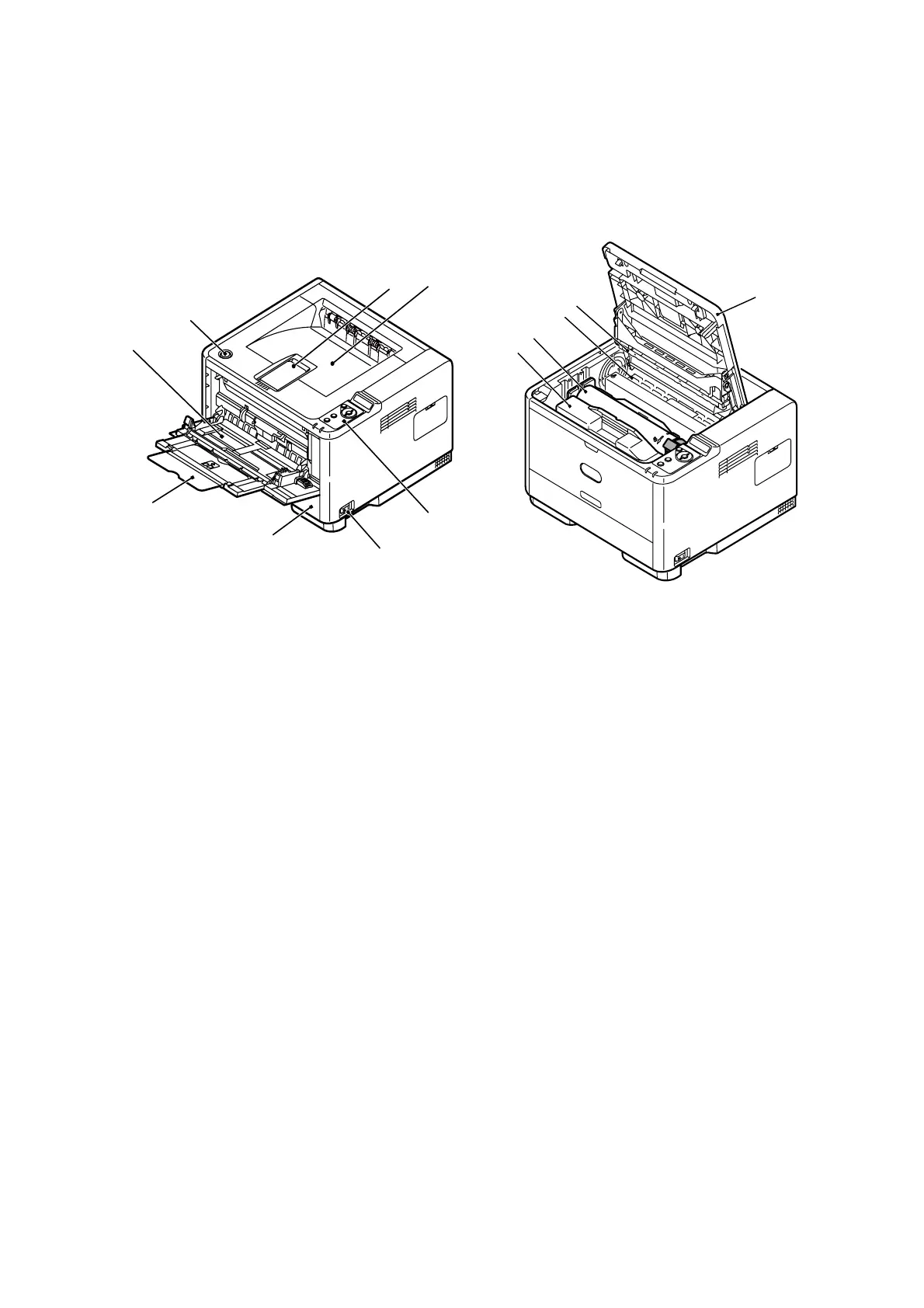

Apart from the Operator panels, which are described in the next chapter, the B411d,
B411dn, B431d, B431dn printers look similar from the outside. The important components
are identified in the representations below. For illustration purposes the B431dn model is
shown.
1. Operator panel
2. Output Stacker (150 sheets, face down)
3. Output Stacker extension
4. Top cover release button
5. Multi Purpose Tray (only for B431d, B431dn; 100 sheets)(shown in open position)
6. Multi Purpose Tray extension
7. Paper Tray 250 sheets
8. ON/OFF switch
9. LED array
10. Fuser unit
11. Toner cartridge
12. Image drum
13. Top cover
1
2
3
4
5
6
7
8
13
9
10
11
12
